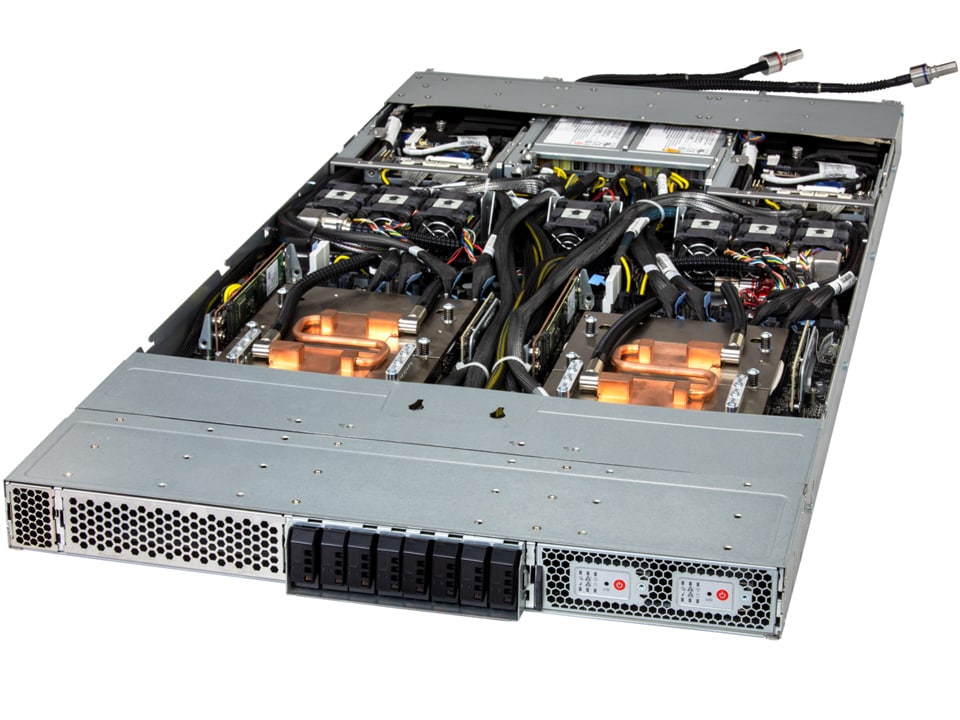

ARS-111GL-DSHR-LCC
1U 2-Node NVIDIA GH200 Grace Hopper Superchip system with liquid-cooling supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7.
1U
Form factor
1
GPUs
NVIDIA Grace
1× socket
4 bays
Drive bays
Liquid
Cooling
2×2700W
Power
- Supports up to 1 GPUs — NVIDIA® Hopper
- 1× socket — NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip
- Storage: 4 default drive bays
- Power: 2x 2700W Redundant
- Direct-to-chip (D2C) liquid cooling
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super G1SMH-G |
Processor (per Node)
| CPU | NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip |
| Note | Supports up to 2000W TDP CPUs (Liquid Cooled) |
GPU (per Node)
| Max GPU Count | Up to 1 onboard GPU |
| GPU-GPU Interconnect | PCIe |
System Memory (per Node)
| Memory | Onboard Memory Up to 480GB ECC LPDDR5X Additional GPU Memory: Up to 96GB ECC HBM3 |
Input / Output (per Node)
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 1 port (Rear) |
| Video | 1 mini-DP port |
System BIOS
| BIOS Type | AMI 64MB SPI Flash EEPROM |
Management
| Power configurations | Power-on mode for AC power recovery; ACPI Power Management |
Chassis
| Form Factor | 1U Rackmount |
| Model | CSE-MG102TS-R000NDFP-2N |
Dimensions and Weight
| Height | 1.7" (43.6 mm) |
| Width | 17.26" (438.4 mm) |
| Depth | 35.4" (900 mm) |
| Package | 9.05" (H) x 27.36" (W) x 46.06" (D) |
| Weight | Gross Weight: 49.21 lbs (22.32 kg) Net Weight: 33.64 lbs (15.26 kg) |
| Available Color | Silver |
Expansion Slots (per Node)
| PCI-Express (PCIe) Configuration | Default: 1 PCIe 5.0 x16 FHFL slot + 1 PCIe 5.0 x16 LP slot |
Drive Bays / Storage (per Node)

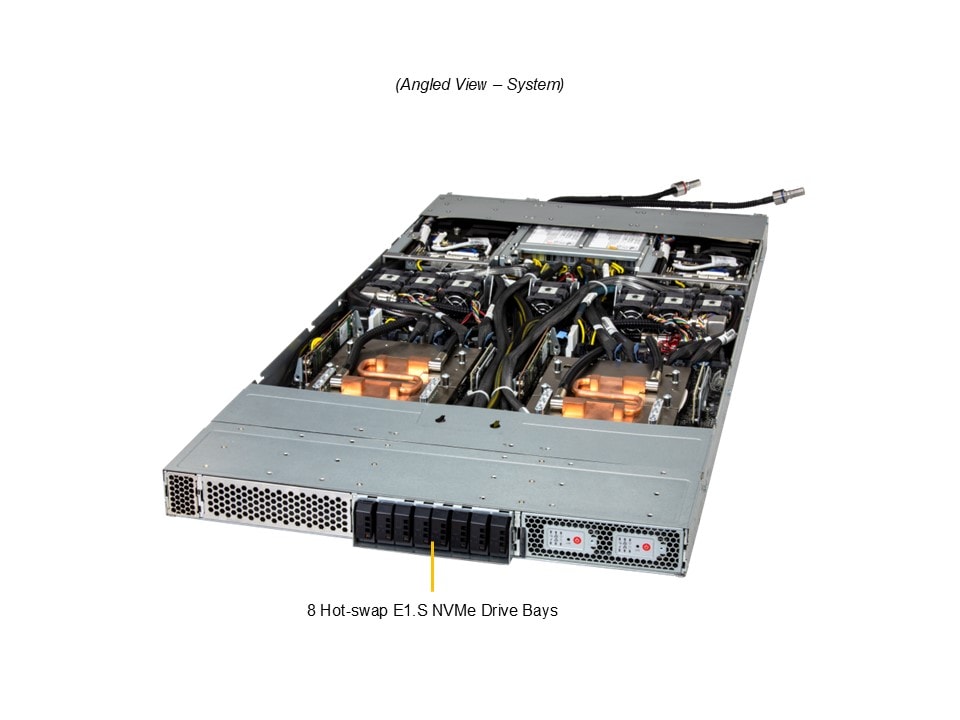

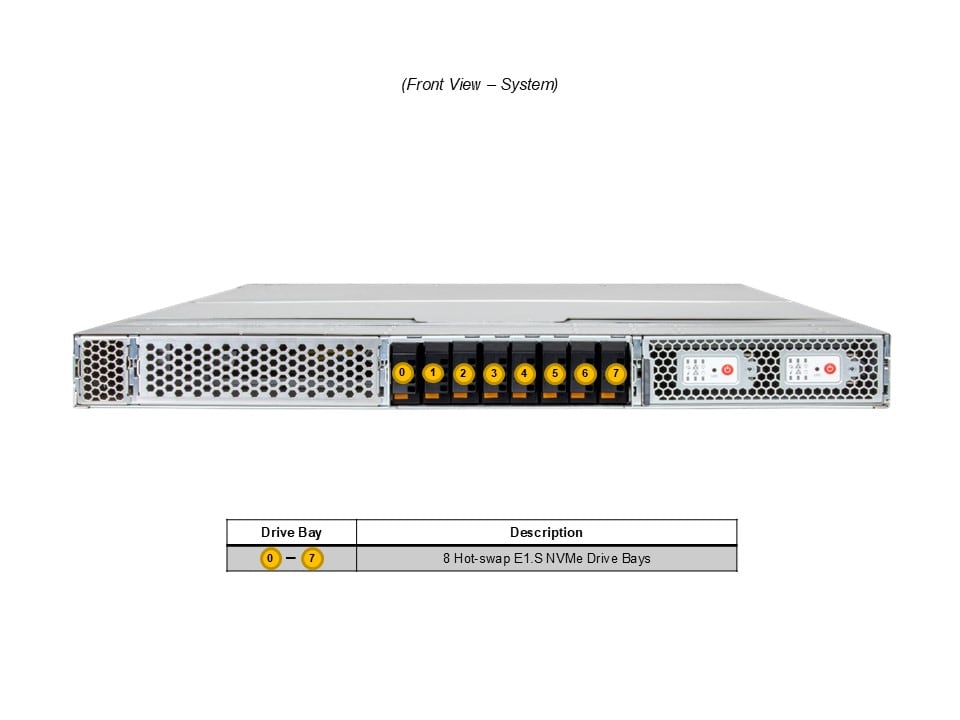

| Drive Bays Configuration | Default: Total 4 bays 4 front hot-swap E1.S NVMe drive bays |
| M.2 | 2 M.2 NVMe slots (M-key) |
System Cooling
| Fans | Up to 7 Removable heavy-duty 4cm Fan(s) |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) |
Power Supply

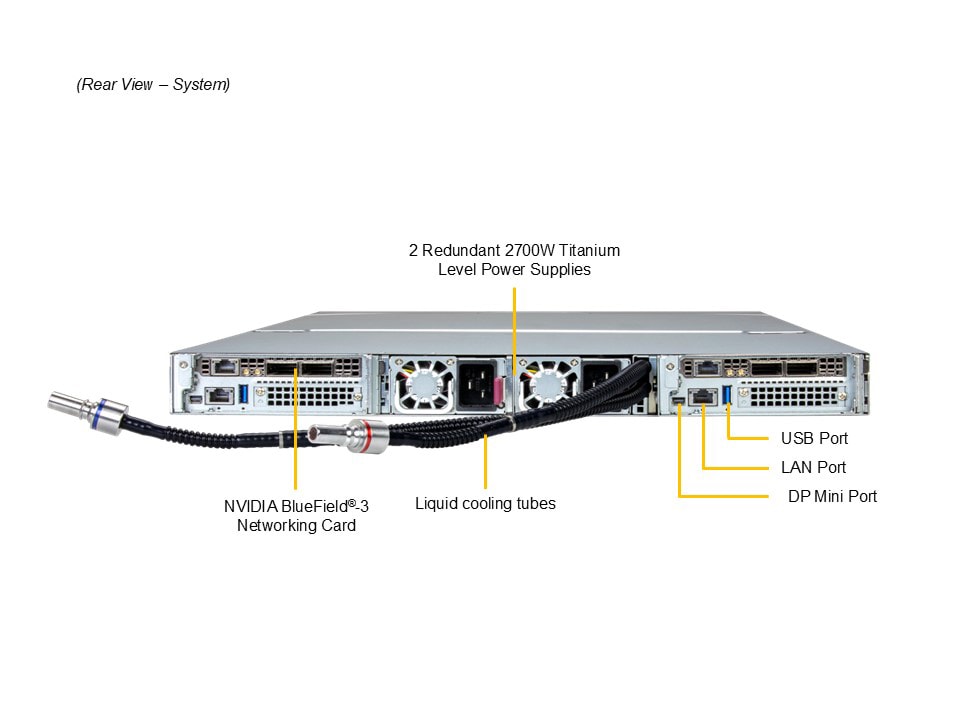

| PSU | 2x 2700W Redundant Titanium Level (96%) power supplies |
