Supermicro · NVIDIA MGX Systems

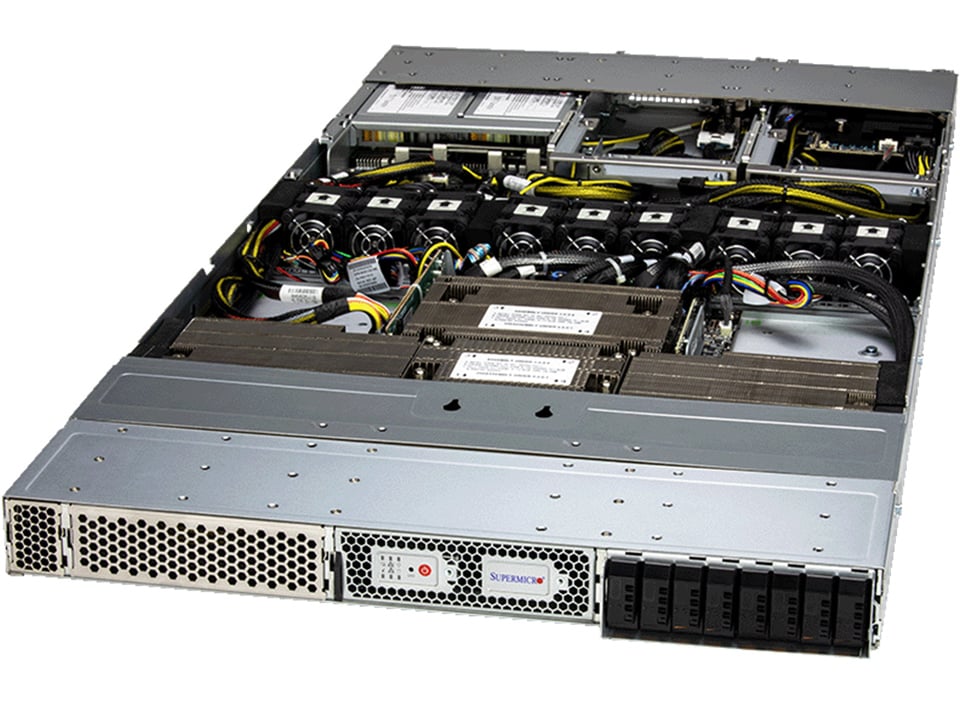

ARS-111GL-SHR
NVIDIA GH200 Grace Hopper Superchip system supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7.
1U
Form factor
1
GPUs
NVIDIA Grace
1× socket
8 bays
Drive bays
Air
Cooling
2×2000W
Power
- Supports up to 1 GPUs — NVIDIA® Hopper
- 1× socket — NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip
- Storage: 8 default drive bays
- Power: 2x 2000W Redundant
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super G1SMH-G |
Processor
| CPU | NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip |
| Note | Supports up to 1000W TDP CPUs (Air Cooled) |
GPU
| Max GPU Count | 1 onboard GPU |
| CPU-GPU Interconnect | NVIDIA NVLink®-C2C |
System Memory
| Memory | Onboard Memory Up to 480GB ECC LPDDR5X Additional GPU Memory: Up to 96GB ECC HBM3 |
Input / Output

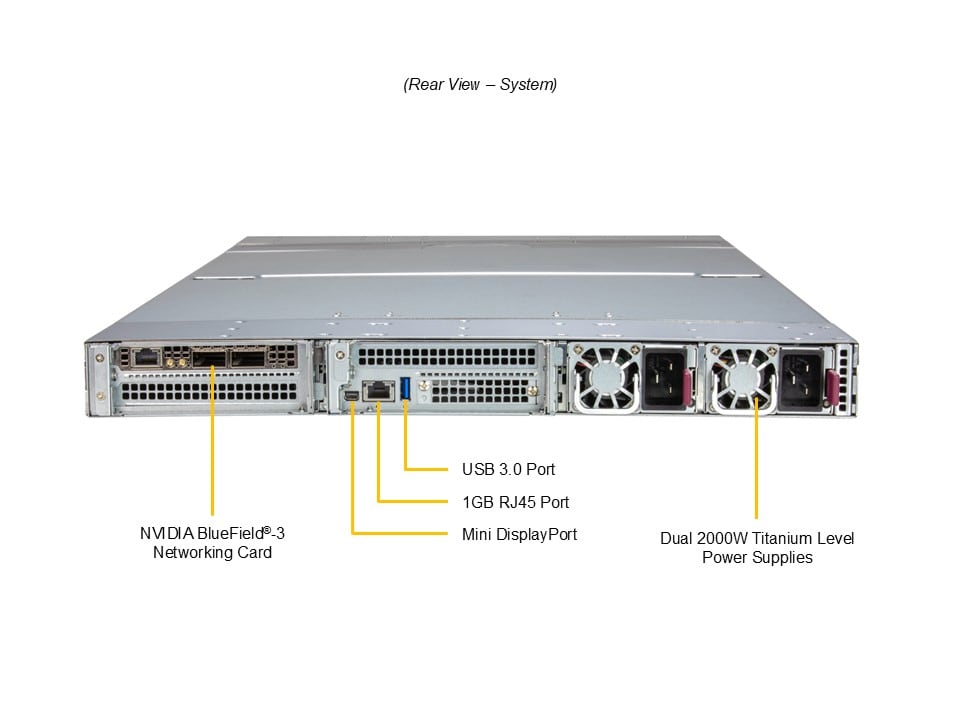

| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 1 USB 3.0 port (Rear) |
| Video | 1 mini-DP port |
| TPM | 1 TPM Onboard / port 80 |
System BIOS
| BIOS Type | AMI 64MB SPI Flash EEPROM |
Management
| Power configurations | Power-on mode for AC power recovery; ACPI Power Management |
Chassis
| Form Factor | 1U Rackmount |
| Model | CSE-MG102TS-R000NDFP |
Dimensions and Weight
| Height | 1.7" (43.6 mm) |
| Width | 17.26" (438.4 mm) |
| Depth | 35.4" (900 mm) |
| Package | 9.05" (H) x 27.36" (W) x 46.06" (D) |
| Weight | Gross Weight: 49.49 lbs (22.45 kg) Net Weight: 33.84 lbs (15.35 kg) |
| Available Color | Silver |
Expansion Slots
| PCI-Express (PCIe) Configuration | Default: 3 PCIe 5.0 x16 FHFL slots |
Drive Bays / Storage

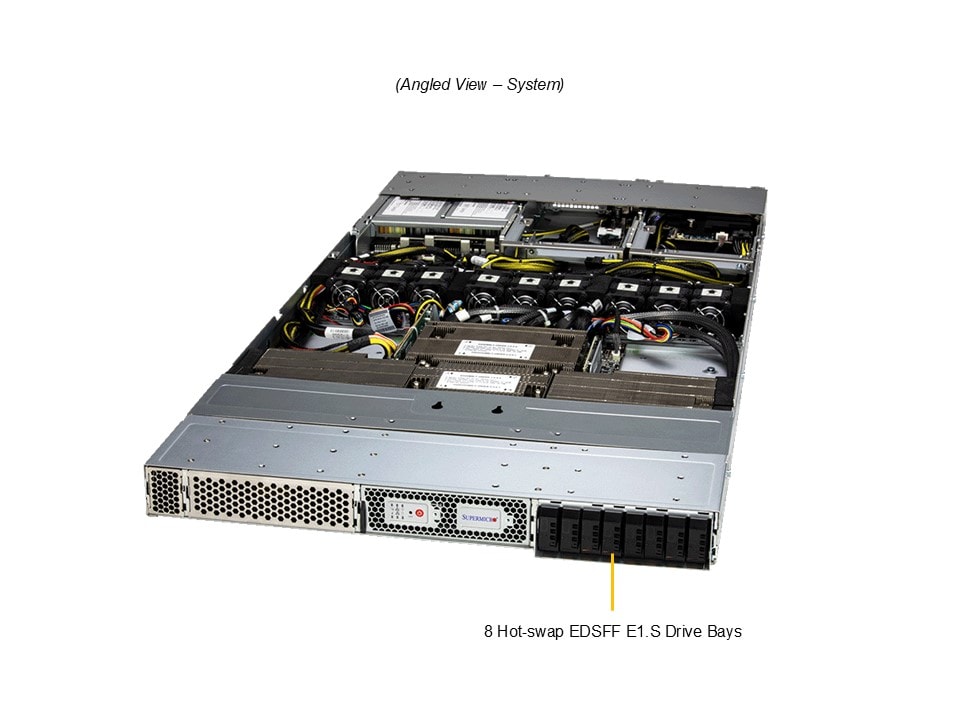

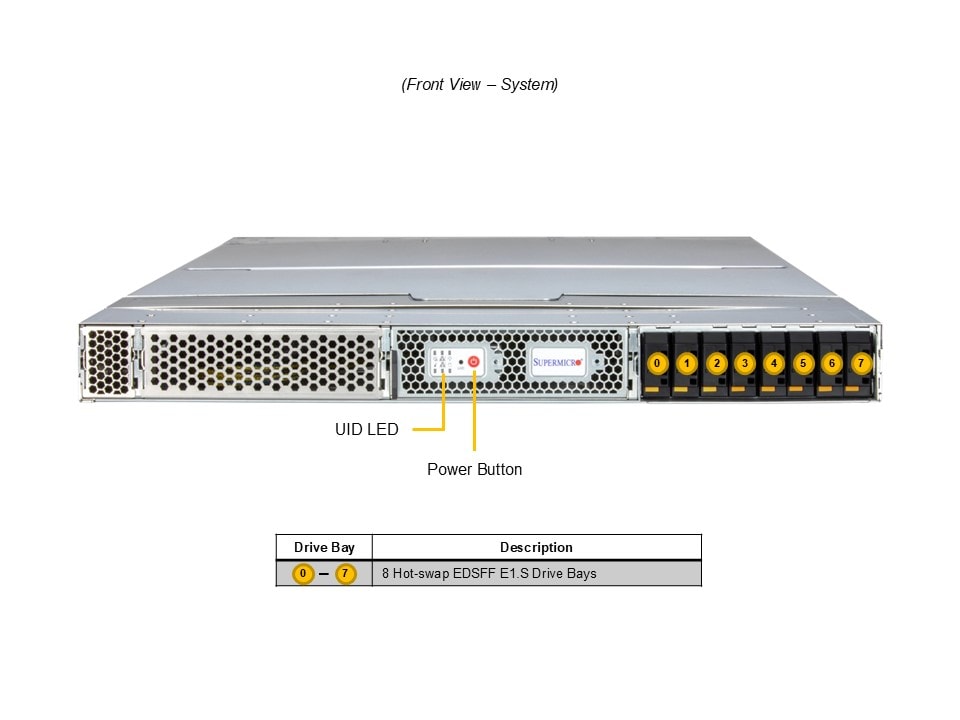

| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays |
| M.2 | 2 M.2 NVMe slots (M-key) |
System Cooling
| Fans | Up to 9 Removable heavy-duty 4cm Fan(s) |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) |
Power Supply
| PSU | 2000W Titanium Level power supplies |
