Supermicro · NVIDIA MGX Systems

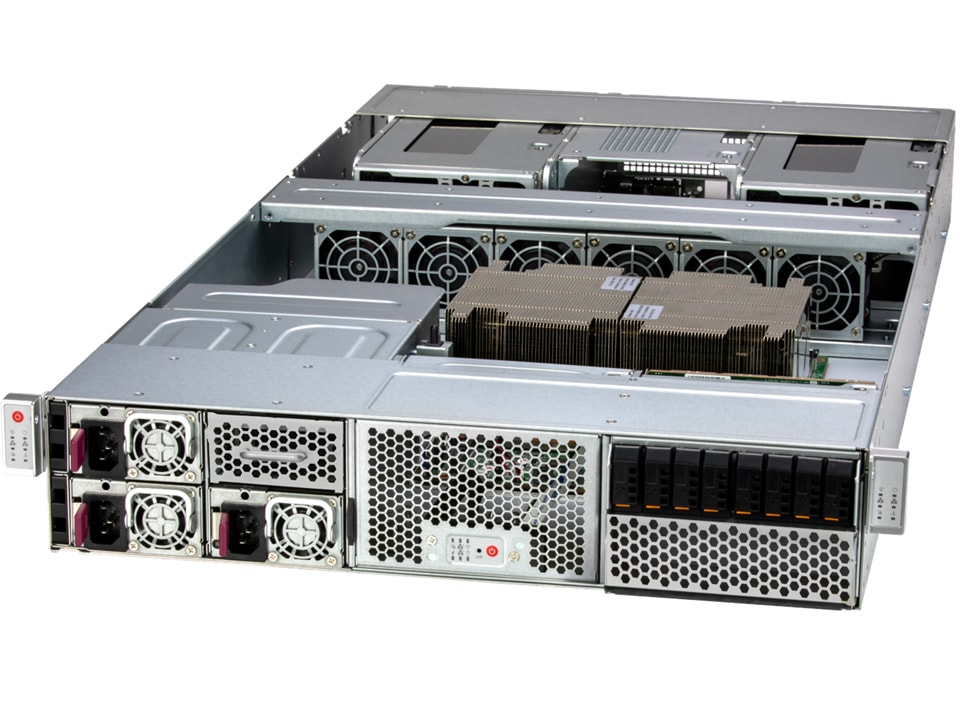

ARS-221GL-SR
Dual NVIDIA Grace™ Superchip system with up to 4 NVIDIA GPUs and NVIDIA BlueField®-3 storage mode.
2U
Form factor
—
GPUs
NVIDIA Grace
1× socket
—
Drive bays
Air
Cooling
—
Power
- GPU architecture:
- 1× socket — NVIDIA Grace™ CPU Superchip
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super G1SMH |
Processor
| CPU | NVIDIA Grace™ CPU Superchip — Dual 72-core CPUs (up to 144 cores) |
| Chipset | NVIDIA C2 |
GPU
| Max GPU Count | Up to 4 double-width GPUs |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| Note | Storage mode via up to 2 NVIDIA BlueField®-3 |
System Memory
| Memory | Onboard memory Up to 960GB ECC LPDDR5X |
On-Board Devices
| Chipset | NVIDIA C2 |
| IPMI | IPMI 2.0 with virtual media over LAN and KVM-over-LAN |
Input / Output
| LAN | 1 RJ45 1GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 Type-A (rear) |
| Video | 1 mini-DP port |
| TPM | 1 TPM onboard / port 80 |
System BIOS
| BIOS Type | AMI 64MB SPI Flash EEPROM |
Management
| Software | Redfish API; Supermicro Update Manager (SUM); KVM with dedicated LAN; IPMI 2.0; Watch Dog; OOB Management Package (SFT-OOB-LIC) |
PC Health Monitoring
| CPU | Monitors for CPU Cores, Chipset & Memory voltages |
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
Chassis
| Form Factor | 2U Rackmount |
| Model | CSE-GP201TS-R000NP |
Dimensions and Weight
| Enclosure | 438.4 x 88 x 900 mm (17.25" x 3.46" x 35.43") |
| Package | 22.5" x 11" x 45.5" |
| Weight | Gross Weight: 86.5 lbs (39.2 kg) Net Weight: 67.5 lbs (30.6 kg) |
| Available Color | Black front & silver body |
Expansion Slots

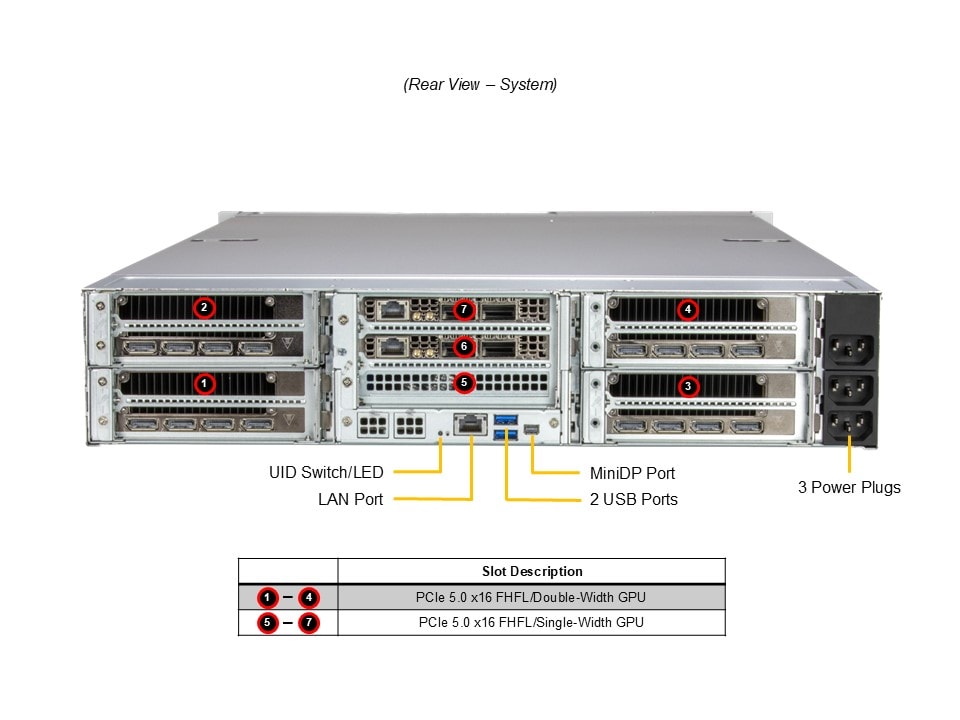

| PCI-Express (PCIe) Configuration | Default: 3 PCIe 5.0 x16 FHFL slots + 4 PCIe 5.0 x16 FHFL double-width slots |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110) |
Drive Bays / Storage

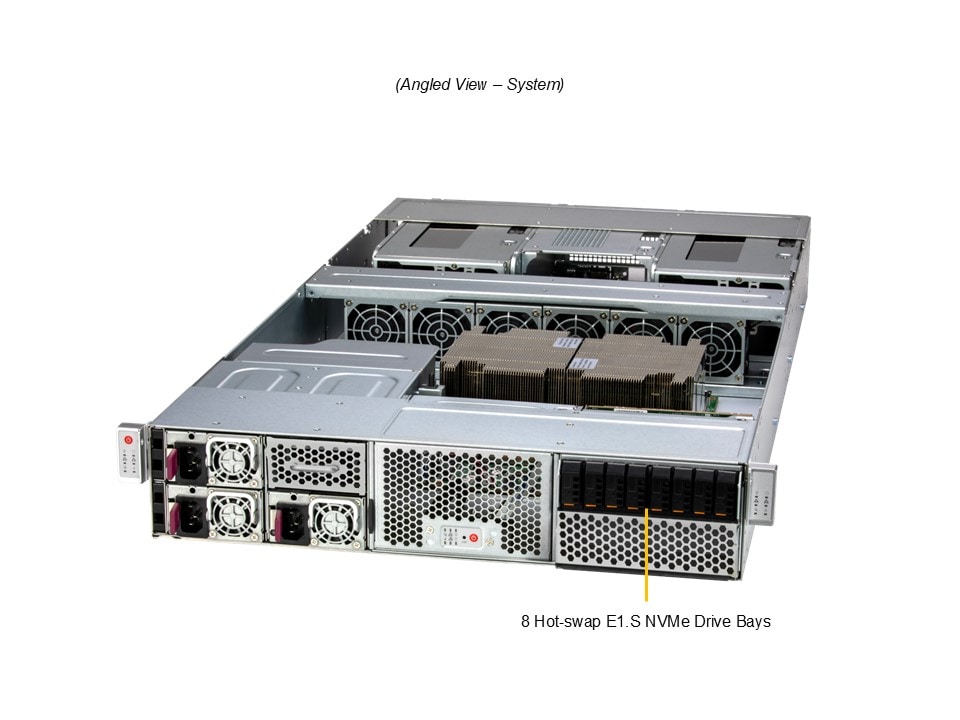

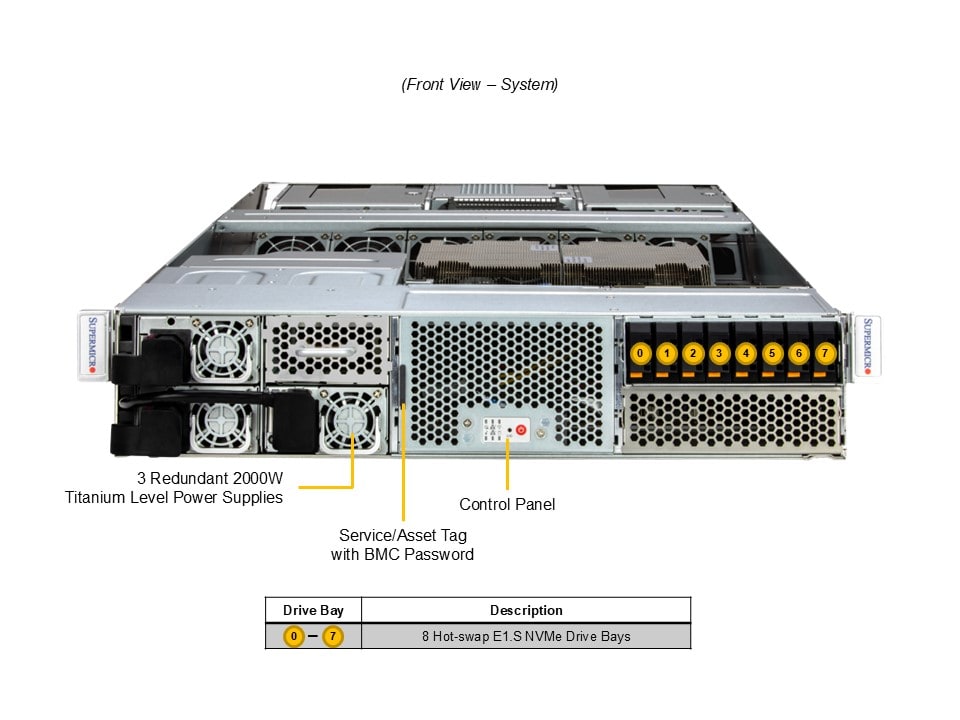

| Drive Bays Configuration | Default: Total 8 bays — 8 front hot-swap E1.S NVMe (from up to 2 NVIDIA BlueField®-3) |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110) |
System Cooling
| Fans | Up to 6 heavy duty fans with optimal fan speed control |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Power Supply
| PSU | 3x 2000W Redundant Titanium Level (96%) |
Configure the ARS-221GL-SR
Tell us your CPU, memory, drive and networking targets — we'll return a build-to-order quote, typically within one business day.
Request a Quote
