Supermicro · NVIDIA MGX Systems

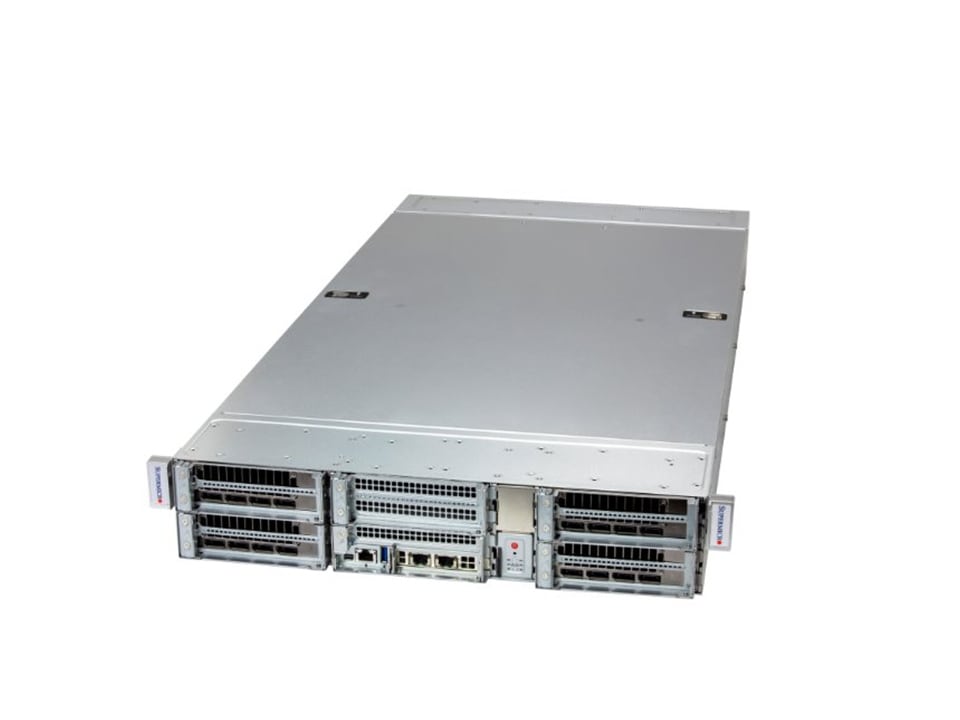

ARS-222GL-NR
2U air-cooled system with dual NVIDIA Vera CPUs.
2U
Form factor
—
GPUs
Intel Xeon
2× socket
—
Drive bays
Air
Cooling
—
Power
- GPU architecture:
- 2× socket — NVIDIA Vera CPU
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super G3DBV |
Processor
| CPU | Dual NVIDIA Vera CPU C2 (88-core each) — 176 cores / 352 threads |
GPU
| Max GPU Count | Up to 4 double-width GPUs |
| Supported GPU | NVIDIA PCIe: RTX PRO™ 4500 / RTX PRO™ 6000 Blackwell Server Edition |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (optional) |
System Memory
| Memory | Onboard memory Up to 1.5TB ECC LPDDR5X (SOCAMM2, up to 1.5TB per CPU) |
On-Board Devices
| IPMI | IPMI 2.0 with virtual media over LAN and KVM-over-LAN |

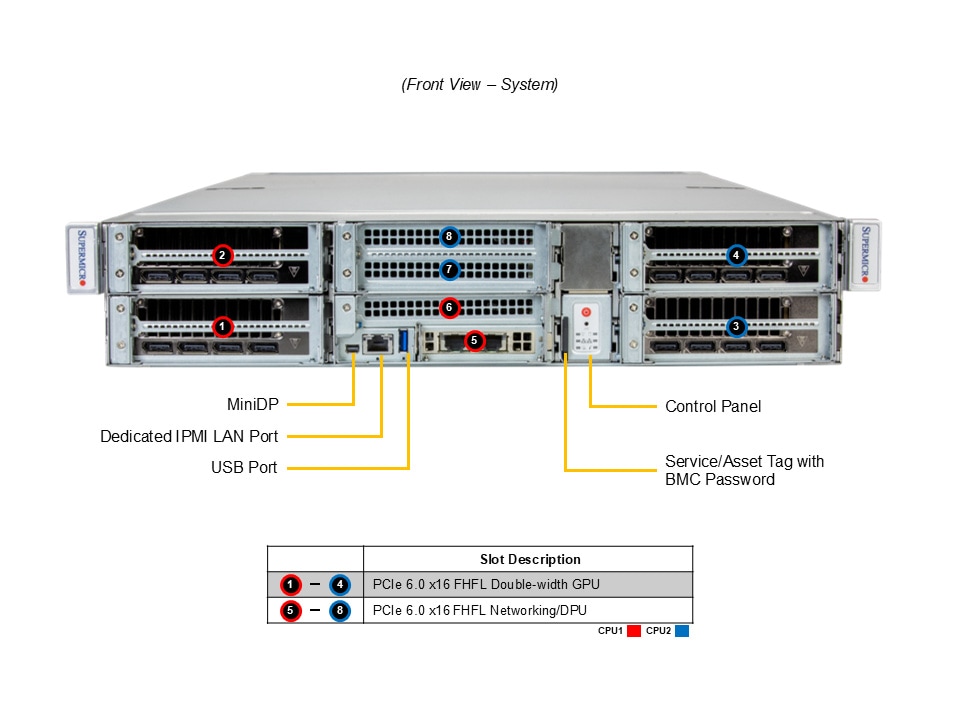

Input / Output
| LAN | 1 RJ45 1GbE Dedicated BMC LAN port |
| USB | 1 USB port (rear) |
| Video | 1 mini-DP port |
System BIOS
| BIOS Type | AMI 32MB SPI Flash EEPROM |
Management
| Software | Redfish API; Supermicro Server Manager (SSM); Supermicro Power Manager (SPM); SuperDoctor® 5 (SD5); KVM with dedicated LAN; IPMI 2.0; OOB Management Package (SFT-OOB-LIC); SMCIPMITool; IPMIView |
PC Health Monitoring
| CPU | 8+4 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
Chassis
| Form Factor | 2U Rackmount |
| Model | CSE-MG204-R000NDFP |
Dimensions and Weight
| Enclosure | 438.4 x 87 x 900 mm (17.3" x 3.43" x 35.43") |
| Package | 700 x 280 x 1200 mm (27.56" x 11.02" x 47.24") |
| Weight | Gross Weight: 103 lbs (46.8 kg) Net Weight: 88 lbs (40 kg) |
| Available Color | Silver |
Expansion Slots
| PCI-Express (PCIe) Configuration | Default: 3 PCIe 6.0 x16 FHFL double-width slots |
| CXL | Up to 1 CXL 2.0 x16 device |
Drive Bays / Storage
| Drive Bays Configuration | Default: Total 8 bays — 8 front hot-swap E1.S NVMe |
| M.2 | 2 M.2 NVMe/SATA slots (M-key) |
System Cooling
| Fans | Up to 5x 8cm heavy duty fans with optimal fan speed control |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP) (non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP) (non-condensing) |
Power Supply
| PSU | 4x 3000W Redundant (3 + 1) Titanium Level (96%) |
