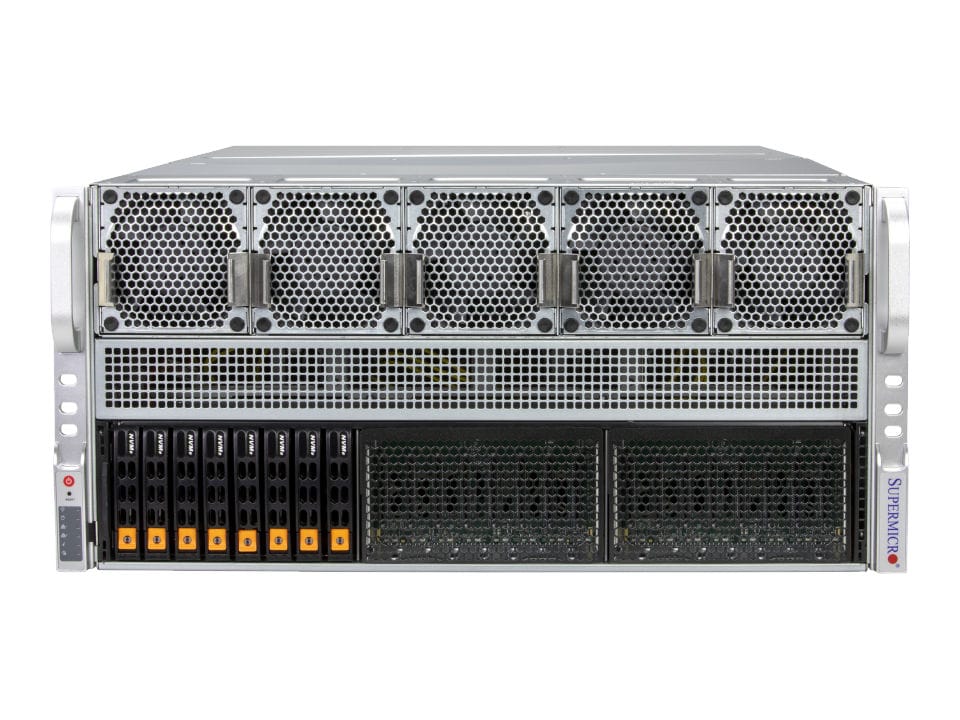

ARS-522GP-NR
5U AI server with Arm AGI CPU Neoverse V3 (64/128/136 cores), up to 8 double-width GPUs, 24 DDR5-8800 DIMMs, and 8 NVMe drives.
5U
Form factor
8
GPUs
Intel Xeon
1× socket
—
Drive bays
Air
Cooling
—
Power
- Supports up to 8 GPUs —
- 1× socket — Arm Neoverse V3 (AGI CPU)
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super AR3DPD |
Processor
| CPU | Dual Arm AGI CPU Neoverse V3 (64, 128, or 136 cores) |
| Note | Up to 350W per CPU (air cooled) |
GPU
| Max GPU Count | Up to 8 double-width GPUs |
System Memory
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): 6TB ECC DDR5 RDIMM (DDR5-8400) |
On-Board Devices
| Chipset | System on Chip |
| Network Connectivity | Via AIOM (OCP 3.0) |
Input / Output
| LAN | 2 RJ45 1GbE Dedicated BMC LAN ports |
| USB | 2 USB 3.0 (rear) |
| Video | 1 VGA port (rear) |
| Serial | 1 COM port (rear) |
System BIOS
| BIOS Type | AMI 1024MB SPI Flash |
Management
| Software | SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | Monitors for CPU Cores, Chipset & Memory voltages |
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
Chassis
| Form Factor | 5U Rackmount |
| Model | CSE-528G2TS-R000NDP |
Dimensions and Weight
| Enclosure | 438 x 222.5 x 786.1 mm (17.2" x 8.75" x 31") |
| Package | 720 x 440 x 1080 mm (28.34" x 17.32" x 42.51") |
| Weight | Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg) |
| Available Color | Black front & silver body |
Expansion Slots
| PCI-Express (PCIe) Configuration | Default: 8 PCIe 5.0 x16 DW-FHFL slots + 4 PCIe 5.0 x16 FHHL slots + 1 PCIe 6.0 x16 FHFL slot + 1 PCIe 5.0 x8 AIOM slot (OCP 3.0) |
Drive Bays / Storage
| Drive Bays Configuration | Default: Total 8 bays — 8 front hot-swap 2.5" NVMe |
| M.2 | 1 M.2 PCIe 4.0 x1 NVMe slot (M-key 2280/22110) |
System Cooling
| Fans | Up to 10 heavy duty counter-rotating 8cm fans |
| Air Shroud | 2 Air Shrouds |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Power Supply
| PSU | 6x 2700W Redundant (3 + 3) Titanium Level (96%) hot-swap |
