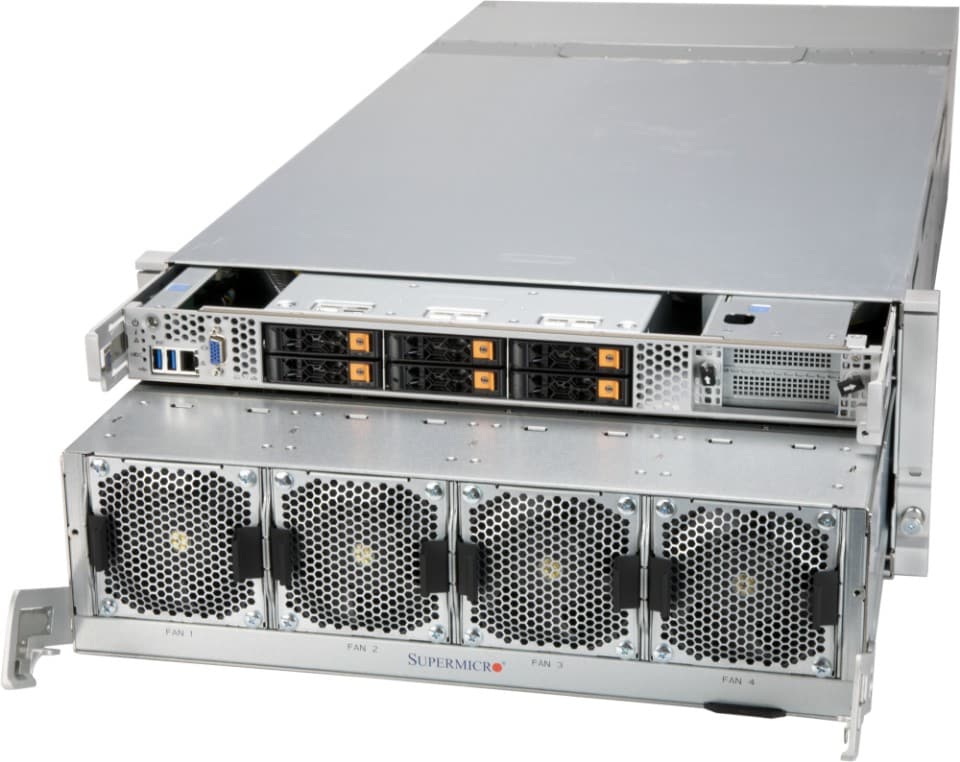

Supermicro · 4U HGX A100 with NVLink (PCIe 4.0)
AS-4124GO-NART
DP AMD System with NVIDIA HGX A100 8-GPU.
4U
Form factor
8
GPUs
AMD EPYC
2× socket
—
Drive bays
Air
Cooling
—
Power
- Supports up to 8 GPUs —
- 2× socket — AMD EPYC™ (Dual Socket)
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super H12DGO-6 |
Processor
| CPU | Dual Socket SP3 AMD EPYC™ 7002 / 7003 Series Processors |
| Note | EPYC™ 7003 with 3D V-Cache™ requires BIOS 2.3+ |
GPU
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX A100 8-GPU (40GB HBM2 / 80GB HBM2e) |
| GPU-GPU Interconnect | NVIDIA® NVLink™ v3.0 + NVSwitch™ |
System Memory
| Memory | Slot Count: 32 DIMM slots Up to 8TB Registered ECC DDR4 3200MHz |
On-Board Devices
| SATA | SATA (6Gbps) |
| IPMI | IPMI 2.0 with virtual media over LAN and KVM-over-LAN |
Input / Output
| LAN | 1 RJ45 1GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 (front) |
| Video | 1 VGA port (front) |
System BIOS
| BIOS Type | AMI 256MB SPI Flash ROM |
Management
| Software | Supermicro Server Manager (SSM); Supermicro Power Manager (SPM); Supermicro Update Manager (SUM); SuperDoctor® 5 (SD5); KVM with dedicated LAN; IPMI 2.0; Watch Dog |
PC Health Monitoring
| CPU | 4+1 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
Chassis
| Form Factor | 4U Rackmount |
| Model | CSE-438G |
Dimensions and Weight
| Enclosure | 446 x 174 x 900 mm (17.6" x 6.9" x 35.4") |
| Package | 695 x 750 x 1140 mm (27.4" x 29.5" x 44.9") |
| Weight | Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg) |
| Available Color | Black front & silver body |
Expansion Slots
| PCI-Express (PCIe) Configuration | Default: 8 PCIe 4.0 x16 (via PCIe switch) + 1 PCIe 4.0 x16 LP + 1 PCIe 4.0 x8 LP (via CPUs); AIOM support |
Drive Bays / Storage
| Drive Bays Configuration | Default: Total 6 bays — 6 front hot-swap 2.5" NVMe Option A: 10 bays (6 front + 4 rear NVMe) |
System Cooling
| Fans | Up to 4 hot-swap 11.5K RPM heavy duty fans |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Power Supply
| PSU | 4x 2200W Redundant (3 + 1) Platinum Level (94%) |
