Supermicro · Universal GPU Systems (4U/5U)

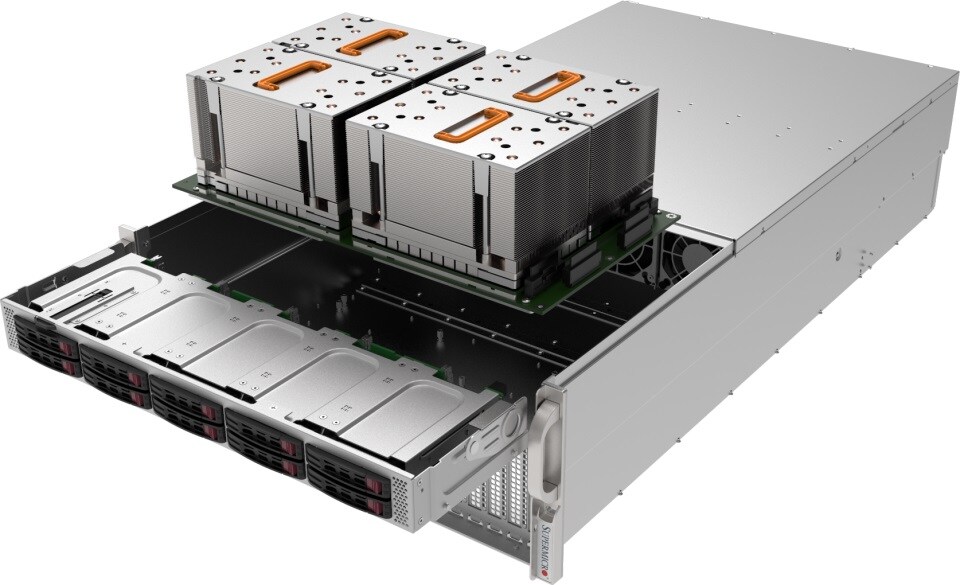

AS-4124GQ-TNMI
DP AMD Universal GPU System with AMD Instinct MI250 OAM.
4U
Form factor
—
GPUs
AMD EPYC
2× socket
10 bays
Drive bays
Air
Cooling
1×3000W
Power
- GPU architecture: AMD Instinct
- 2× socket — AMD EPYC™ 7003 Series
- Storage: 10 drive bays
- Power: 1x 3000W Redundant
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super H12DGQ-NT6 |
Processor
| CPU | Dual Socket SP3 AMD EPYC™ 7003 Series |
| Core Count | Up to 128C/256T |
| Note | Supports up to 280W TDP CPUs (Air Cooled) |
GPU
| Max GPU Count | 4 onboard GPUs (AMD Instinct™ MI250 OAM) |
| CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | AMD Infinity Fabric™ Link |
System Memory
| Memory | Slot Count: 32 DIMM slots / 8 Channels Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| Memory Voltage | 1.2V |
On-Board Devices
| Network Connectivity | Via AIOM |
| IPMI | IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
Input / Output
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports (front) |
| Video | 1 VGA port (Front) |
| Serial | 1 COM port |
System BIOS
| BIOS Type | AMI 256MB SPI Flash ROM |
Management
| Software | Supermicro Server Manager (SSM); Power Manager (SPM); Update Manager (SUM); SuperDoctor® 5 (SD5); KVM with dedicated LAN; IPMI 2.0; Watch Dog |
Chassis
| Form Factor | 4U Rackmount |
| Model | CSE-458GTS-R3K06P |
Dimensions and Weight
| Height | 7" (175.6 mm) |
| Width | 17.67" (449 mm) |
| Depth | 32.79" (833 mm) |
| Package | 14.57" (H) x 27.55" (W) x 49.6" (D) |
| Weight | Gross Weight: 140 lbs (64 kg) Net Weight: 105 lbs (48 kg) |
| Available Color | Black Front & Silver Body |
Expansion Slots
| PCI-Express (PCIe) Configuration | Default: 8 PCIe 4.0 x16 via PLX slots Option A: 8 PCIe 4.0 x16 via PLX slots + 2 PCIe 4.0 x16 LP slots |
Drive Bays / Storage
| Drive Bays Configuration | Default: Total 10 bays 10 front hot-swap 2.5" NVMe/SAS/SATA drive bays |
System Cooling
| Fans | Up to 5x hot-swap 11.5K RPM heavy duty fan(s) |
Operating Environment
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) |
Power Supply
| PSU | 4x 3000W Redundant (2+2) Titanium Level (96%) power supplies |
