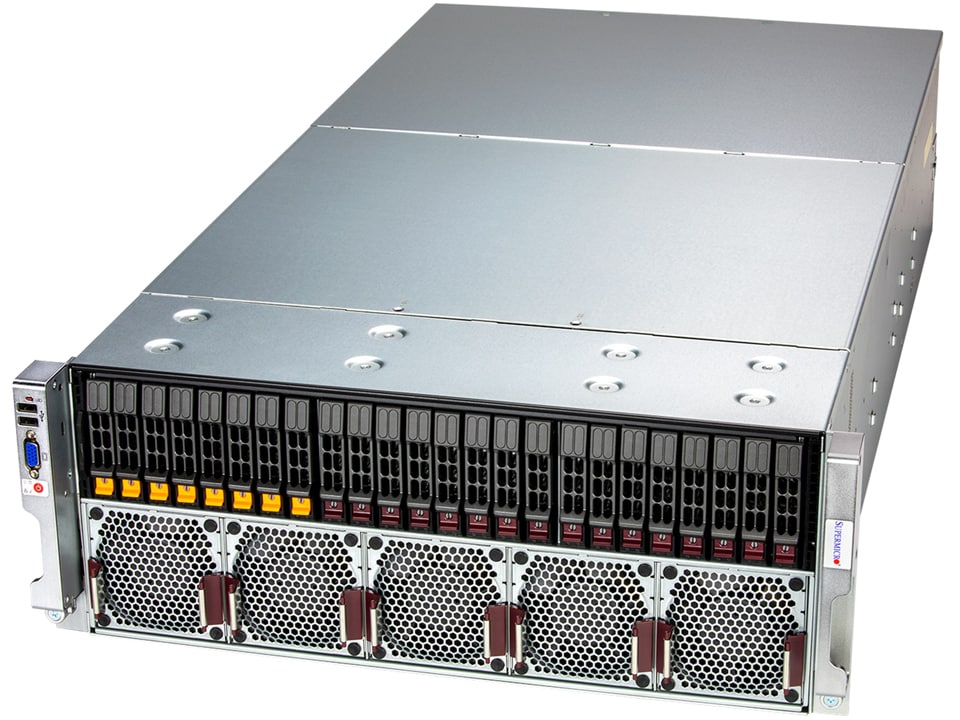

AS-4145GH-TNMR
4U System with Quad AMD Instinct™ MI300A Accelerators (onsite service OSNBD is required).
4U
Form factor
4
GPUs
AMD EPYC
4× socket
8 bays
Drive bays
Air
Cooling
4×2700W
Power
- Supports up to 4 GPUs — AMD Instinct
- 4× socket — AMD Instinct™ MI300A Accelerated Processing Units (APUs)
- Storage: 8 default / 24 max drive bays
- Power: 4x 2700W Redundant (3 + 1)
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super H13QSH |
Processor
| CPU | Quad Socket SH5 AMD Instinct™ MI300A Accelerated Processing Units (APUs) |
GPU
| Max GPU Count | 4 onboard GPUs (MI300A) |
| GPU-GPU Interconnect | AMD Infinity Fabric™ Link |
System Memory
| Memory | Onboard memory Up to 512GB ECC HBM3 unified memory |
On-Board Devices
| Chipset | AMD SH5 |
| Network Connectivity | Via AIOM (OCP NIC 3.0) |
Input / Output
| LAN | 1 RJ45 1GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 (rear); 2 USB 2.0 (front) |
| Video | 1 DisplayPort |
| Serial | 1 COM port (rear) |
System BIOS
| BIOS Type | AMI 32MB SPI Flash |
Management
| Software | SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | 4+1 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
Chassis
| Form Factor | 4U Rackmount |
| Model | CSE-418H2TS-R0AWNDP |
Dimensions and Weight
| Enclosure | 438.4 x 177 x 848.7 mm (17.3" x 7" x 33.4") |
| Package | 694 x 405 x 1255 mm (27.32" x 15.94" x 49.41") |
| Weight | Gross Weight: 158.1 lbs (71.7 kg) Net Weight: 120.6 lbs (54.7 kg) |
| Available Color | No paint |
Expansion Slots
| PCI-Express (PCIe) Configuration | Default: 4 PCIe 5.0 x16 FHHL slots + 2 PCIe 5.0 x8 FHHL slots (multiple options up to 6 PCIe x16 + AIOM) |
Drive Bays / Storage
| Drive Bays Configuration | Default: Total 8 bays — 8 front fixed 2.5" NVMe Option A: 16 NVMe; Option B: 24 SAS/SATA |
| M.2 | 2 M.2 NVMe slots (M-key 2280/22110) |
System Cooling
| Fans | Up to 10 heavy duty counter-rotating 8cm fans |
| Air Shroud | 1 Air Shroud |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Power Supply
| PSU | 4x 2700W Redundant (3 + 1) Titanium Level (96%) |
