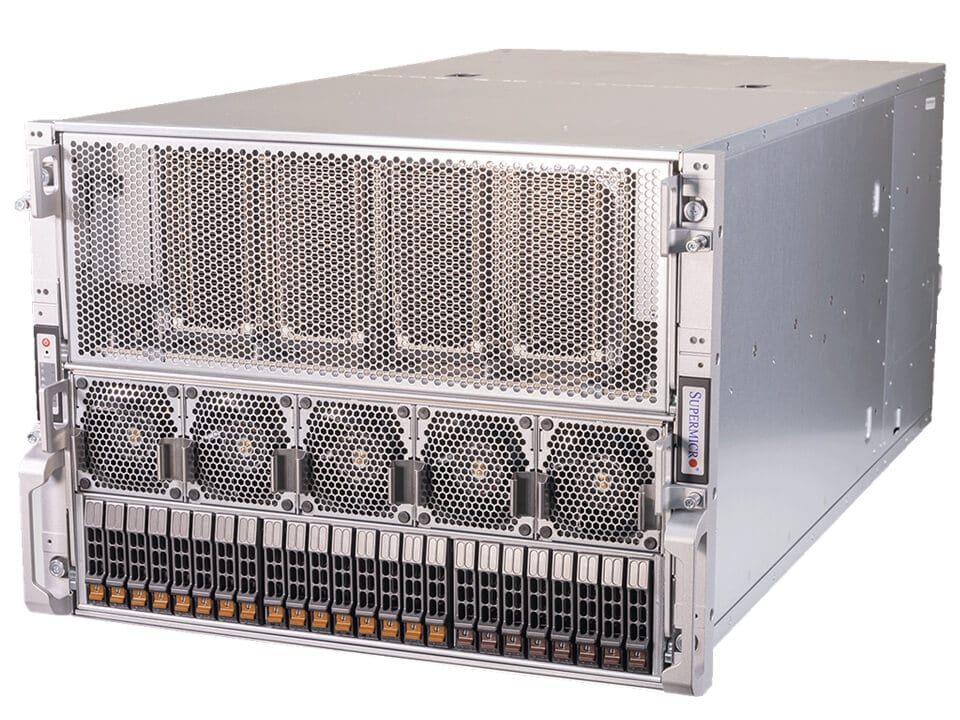

AS-8125GS-TNHR
DP AMD 8U System with NVIDIA HGX H100/H200 8-GPU.
8U
Form factor
8
GPUs
AMD EPYC
2× socket
18 bays
Drive bays
Air
Cooling
6×3000W
Power
- Supports up to 8 GPUs — NVIDIA® Hopper
- NVIDIA SXM: HGX H200 8-GPU (141GB), HGX H100 8-GPU (80GB)
- 2× socket — AMD EPYC™ 9004 Series Processors
- Storage: 18 default drive bays
- Power: 6x 3000W Redundant (3 + 3)
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super H13DSG-O-CPU-D |
Processor
| CPU | Dual Socket SP5 AMD EPYC™ 9004 Series Processors |
| Core Count | Up to 128C/256T |
| Note | Supports up to 400W TDP CPUs (Air Cooled) |
GPU
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ |
System Memory
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
Input / Output
| Video | 1 VGA port |
System BIOS
| BIOS Type | AMI 32MB SPI Flash EEPROM |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
Chassis
| Form Factor | 8U Rackmount |
| Model | CSE-GP801TS |
Dimensions and Weight
| Height | 14" (355.6 mm) |
| Width | 17.2" (437 mm) |
| Depth | 33.2" (843.28 mm) |
| Package | 29.5" (H) x 27.5" (W) x 51.2" (D) |
| Weight | Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg) |
| Available Color | Black front & silver body |
Expansion Slots
| PCI-Express (PCIe) Configuration | Default: 8 PCIe 5.0 x16 LP slots + 2 PCIe 5.0 x16 FHFL slots Option A: 8 PCIe 5.0 x16 LP slots + 4 PCIe 5.0 x16 FHFL slots |
Drive Bays / Storage
| Drive Bays Configuration | Default: Total 18 bays — 2 SATA + 16 NVMe (2.5") |
| M.2 | 1 M.2 NVMe slot (M-key) |
System Cooling
| Fans | Up to 10 heavy duty fans with optimal fan speed control |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) |
Power Supply
| PSU | 3000W Redundant Titanium Level Power Supplies |
