Supermicro · Universal GPU Systems (8U/10U)

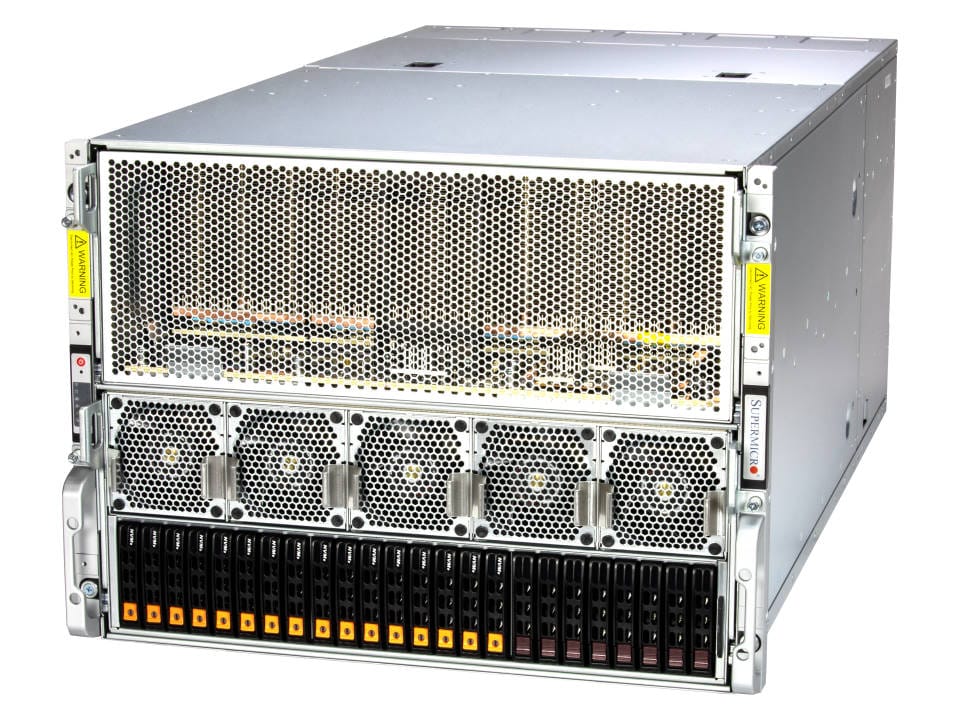

AS-8125GS-TNMR2
DP AMD 8U System with AMD Instinct™ MI300X 8-GPU.
8U
Form factor
8
GPUs
AMD EPYC
2× socket
18 bays
Drive bays
Air
Cooling
6×3000W
Power
- Supports up to 8 GPUs — AMD Instinct
- AMD: Instinct™ MI300X Accelerators
- 2× socket — AMD EPYC™ 9004/9005 Series Processors
- Storage: 18 default drive bays
- Power: 6x 3000W Redundant (3 + 3)
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super H13DSG-OM |
Processor
| CPU | Dual Socket SP5 AMD EPYC™ 9004/9005 Series Processors |
| Note | EPYC™ 9005 drop-in support requires board revision 2.x |
GPU
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | AMD Instinct™ MI300X Accelerators |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | AMD Infinity Fabric™ Link |
System Memory
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (EPYC™ 9005) Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (EPYC™ 9004) |
Networking
| Options | 8x NIC for GPU direct RDMA (1:1 GPU ratio); flexible networking options |
Input / Output
| Video | 1 VGA port |
System BIOS
| BIOS Type | AMI 32MB SPI Flash EEPROM |
Management
| Software | SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | 7+1 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
| FAN | Fans with tachometer monitoring; status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
Chassis
| Form Factor | 8U Rackmount |
| Model | CSE-GP801TS |
Dimensions and Weight
| Enclosure | 437 x 355.6 x 843.28 mm (17.2" x 14" x 33.2") |
| Package | 698 x 750 x 1300 mm (27.5" x 29.5" x 51.2") |
| Weight | Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg) |
| Available Color | Black front & silver body |
Expansion Slots
| PCI-Express (PCIe) Configuration | Default: 8 PCIe 5.0 x16 LP slots + 2 PCIe 5.0 x16 FHFL slots Option A: 8 PCIe 5.0 x16 LP slots + 4 PCIe 5.0 x16 FHFL slots |
Drive Bays / Storage
| Drive Bays Configuration | Default: Total 18 bays — 12 front hot-swap 2.5" NVMe + 2 front hot-swap 2.5" SATA + 4 front hot-swap 2.5" NVMe (optional) |
| M.2 | 2 M.2 NVMe slots (M-key) |
System Cooling
| Fans | 10 heavy duty fans with optimal fan speed control |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Power Supply
| PSU | 6x 3000W Redundant (3 + 3) Titanium Level (96%) |
