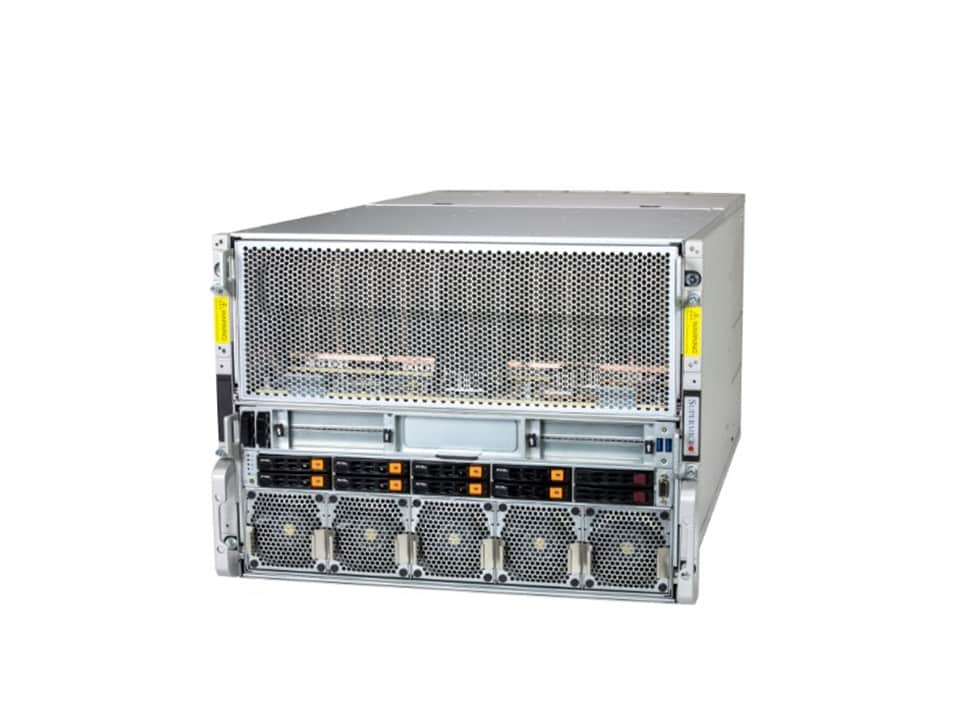

AS-8126GS-TNMR
DP AMD 8U System with AMD Instinct™ MI325X/MI350X 8-GPU.
8U
Form factor
8
GPUs
AMD EPYC
2× socket
10 bays
Drive bays
Air
Cooling
6×5250W
Power
- Supports up to 8 GPUs — AMD Instinct
- 2× socket — AMD EPYC™ 9005/9004 Series Processors
- Storage: 10 default drive bays
- Power: 6x 5250W Redundant (3 + 3)
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super H14DSG-OD |
Processor
| CPU | Dual Socket SP5 AMD EPYC™ 9005/9004 Series Processors |
| Core Count | Up to 384C/768T |
| Note | Supports up to 500W TDP CPUs (air cooled) |
GPU
| Max GPU Count | 8 onboard OAM GPUs |
| Supported GPU | AMD Instinct™ MI325X / MI350X (8-GPU) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | AMD Infinity Fabric™ Link |
System Memory
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (EPYC™ 9005) Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (EPYC™ 9004) |
On-Board Devices
| Network Connectivity | 2 RJ45 10GbE with Intel® X710 |
Input / Output
| LAN | 1 RJ45 1GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 Type-A (rear) |
| Video | 1 VGA port |
| TPM | 1 TPM header |
System BIOS
| BIOS Type | AMI 64MB SPI Flash EEPROM |
Management
| Software | SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | 7+1 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
| FAN | Fans with tachometer monitoring; status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
Chassis
| Form Factor | 8U Rackmount |
| Model | CSE-GP805TS-R000NPF |
Dimensions and Weight
| Enclosure | 447 x 356 x 843 mm (17.6" x 13.8" x 33.2") |
| Package | 730 x 660 x 1280 mm (28.74" x 26" x 50.39") |
| Weight | Gross Weight: 336 lbs (152.4 kg) Net Weight: 288 lbs (130.6 kg) |
| Available Color | Silver |
Expansion Slots
| PCI-Express (PCIe) Configuration | Default: 8 PCIe 5.0 x16 LP slots + 2 PCIe 5.0 x16 FHHL slots |
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 22110) |
Drive Bays / Storage
| Drive Bays Configuration | Default: Total 10 bays — 8 front hot-swap 2.5" NVMe + 2 front hot-swap 2.5" SATA |
| M.2 | 2 M.2 NVMe slots (M-key) |
System Cooling
| Fans | Up to 14 heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Power Supply
| PSU | 6x 5250W Redundant (3 + 3) Titanium Level (96%) |
