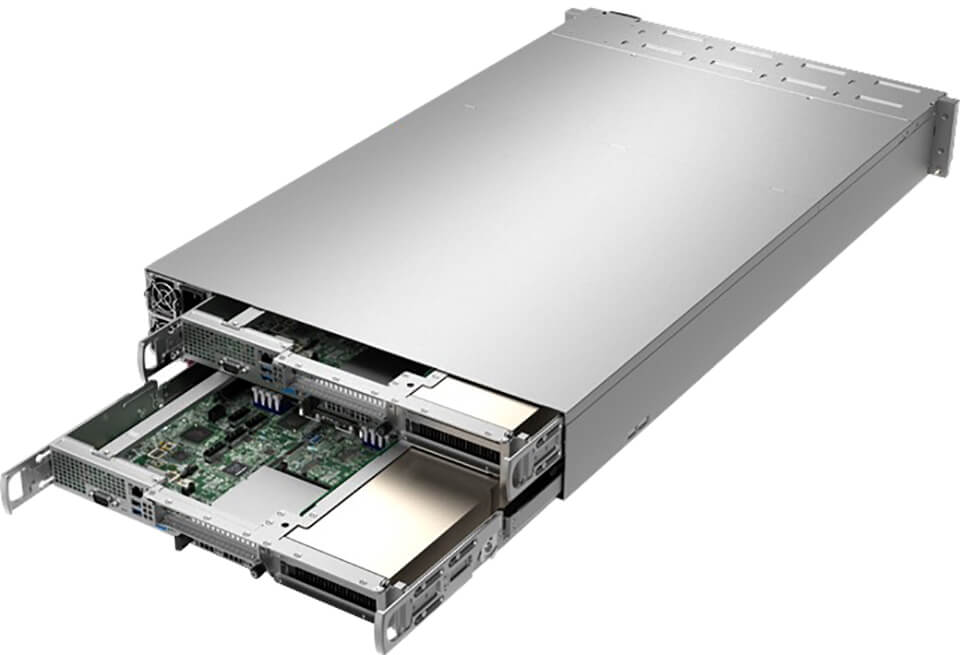

Supermicro · 2U Multi-Node Multi-GPU
SYS-210GP-DNR
2U 2-Node System with UP Intel and Up to 3 GPUs per Node.
2U
Form factor
3
GPUs
Intel Xeon
1× socket
2 bays
Drive bays
Air
Cooling
1×2600W
Power
- Supports up to 3 GPUs — NVIDIA® Ampere
- NVIDIA PCIe: A100
- 1× socket — 3rd Gen Intel® Xeon® Scalable processors
- Storage: 2 default drive bays
- Power: 1x 2600W Redundant
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X12SPG-NF |
Processor (per Node)
| CPU | Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors |
| Core Count | Up to 40C/80T; Up to 60MB Cache |
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
GPU (per Node)
| Max GPU Count | Up to 3 double-width or 3 single-width GPUs |
| Supported GPU | NVIDIA PCIe: A10, A100, A30, A40, RTX A4000, RTX A4500 |
| CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | PCIe |
System Memory (per Node)
| Memory | Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 1TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| Memory Voltage | 1.2V |
On-Board Devices (per Node)
| Network Connectivity | Via AIOM |
Input / Output (per Node)
| Video | 1 VGA port |
System BIOS
| BIOS Type | AMI 32MB SPI Flash EEPROM |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
Chassis
| Form Factor | 2U 2-Node Rackmount |
| Model | CSE-227GTS-R2K63P |
Dimensions and Weight
| Height | 3.47" (88 mm) |
| Width | 17.6" (447 mm) |
| Depth | 29.9" (760 mm) |
| Package | 9.44" (H) x 23.62" (W) x 43.3" (D) |
| Weight | Gross Weight: 60 lbs (27.21 kg) Net Weight: 55 lbs (24.94 kg) |
| Available Color | Black Front & Silver Body |
Expansion Slots (per Node)
| PCI-Express (PCIe) Configuration | Default: 3 PCIe 4.0 x16 FHFL double-width slots |
Drive Bays / Storage (per Node)
| Drive Bays Configuration | Default: Total 2 bays 2 front hot-swap 2.5" NVMe drive bays |
| M.2 | 2 M.2 NVMe/SATA slots (M-key) |
System Cooling
| Fans | Up to 4 Removable heavy-duty fan(s) |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) |
