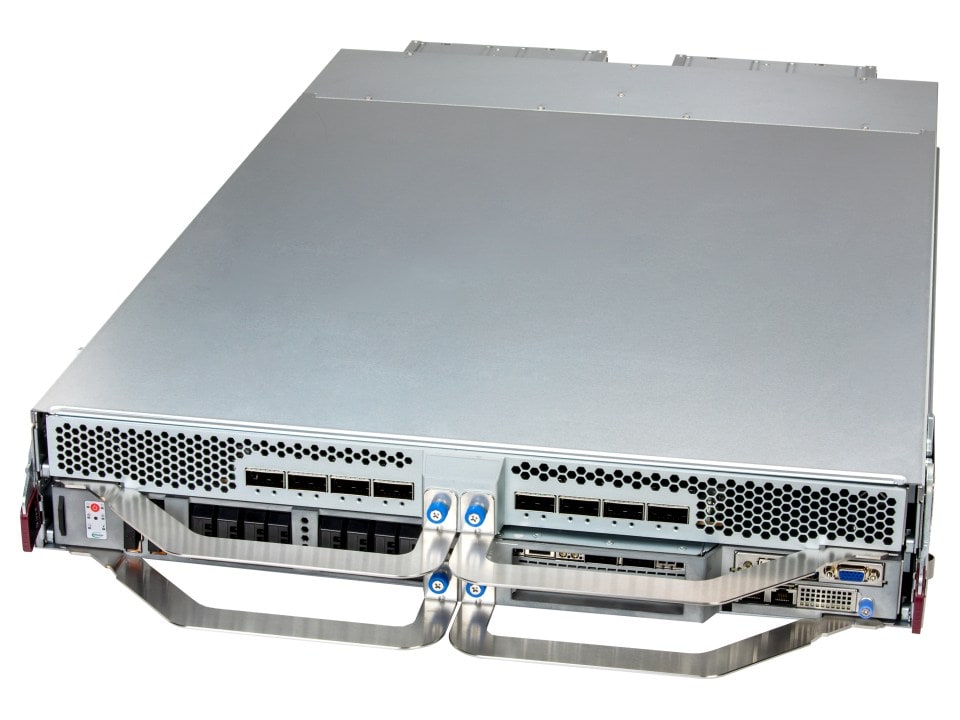

SYS-222GS-NB3OT-ALC
DP Intel 2-OU (OCP ORV3) Liquid-Cooled System with NVIDIA HGX B300 8-GPU (complete rack and onsite service are required).
2-OU
Form factor
8
GPUs
Intel Xeon
2× socket
8 bays
Drive bays
Liquid
Cooling
Via busbar
Power
- Supports up to 8 GPUs — NVIDIA Blackwell
- NVIDIA SXM: HGX B300 8-GPU (288GB)
- 2× socket — Intel® Xeon® 6700 series processors with P-cores
- Storage: 8 default drive bays
- Power: Via busbar
- Direct-to-chip (D2C) liquid cooling
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Processor
| CPU | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700 series processors with P-cores |
| Core Count | Up to 86C/172T; Up to 335MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Liquid Cooled) |
GPU
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B300 8-GPU (288GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ |
System Memory
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 6000MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
Input / Output

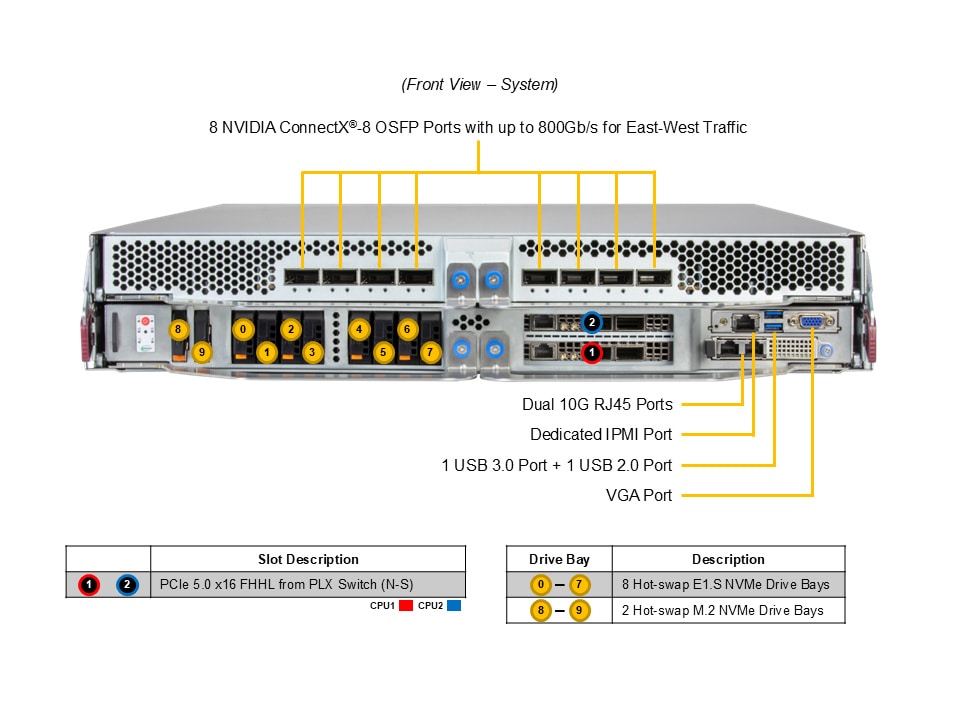

| LAN | 2 RJ45 10 GbE LAN ports (Intel® X710) 8 OSFP 800 Gb/s InfiniBand LAN ports (NVIDIA ConnectX®-8 SuperNIC) 1 RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600, via DC-SCM) |
| Video | 1 VGA port (Front) |
| TPM | 1 TPM header |
System BIOS
| BIOS Type | AMI 64MB UEFI |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
Chassis
| Form Factor | 2-OU Rackmount (OCP ORV3) |
| Model | CSE-GP202TS-000NP |
Dimensions and Weight
| Height | 3.7" (94 mm) |
| Width | 21.1" (537 mm) |
| Depth | 31.69" (805 mm) |
| Package | 12.79" (H) x 28.74" (W) x 50.39" (D) |
| Weight | Gross Weight: 176 lbs (80 kg) Net Weight: 154 lbs (70 kg) |
| Available Color | Silver |
Expansion Slots
| PCI-Express (PCIe) Configuration | Default: 2 PCIe 5.0 x16 (in x16) FHHL slots |
Drive Bays / Storage

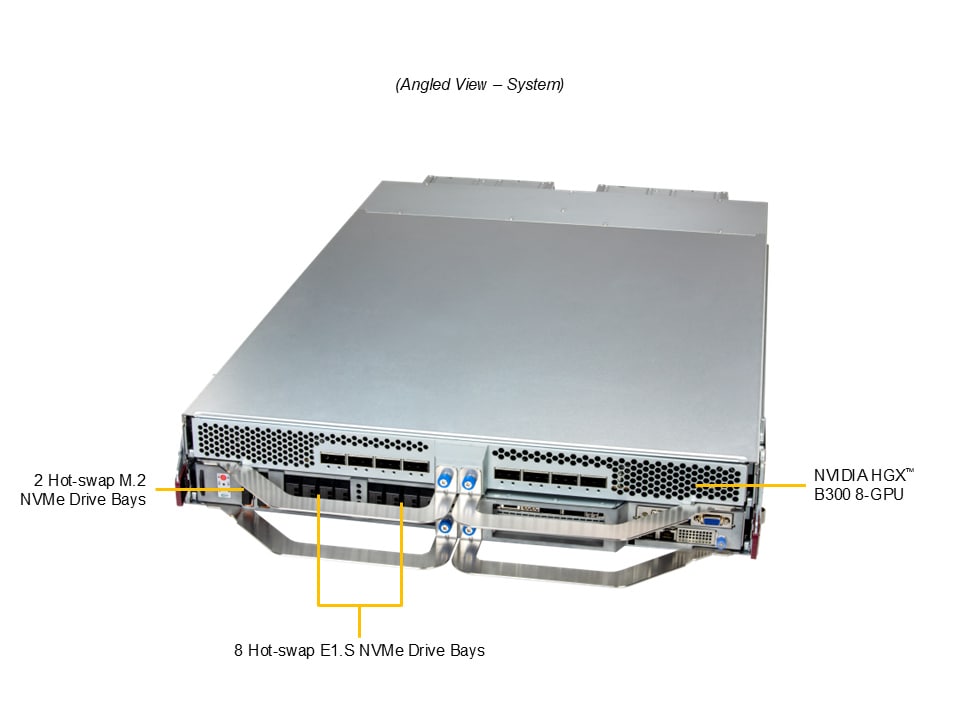

| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays |
| M.2 | 2 M.2 NVMe slots (M-key; RAID support via S3808N controller) |
System Cooling

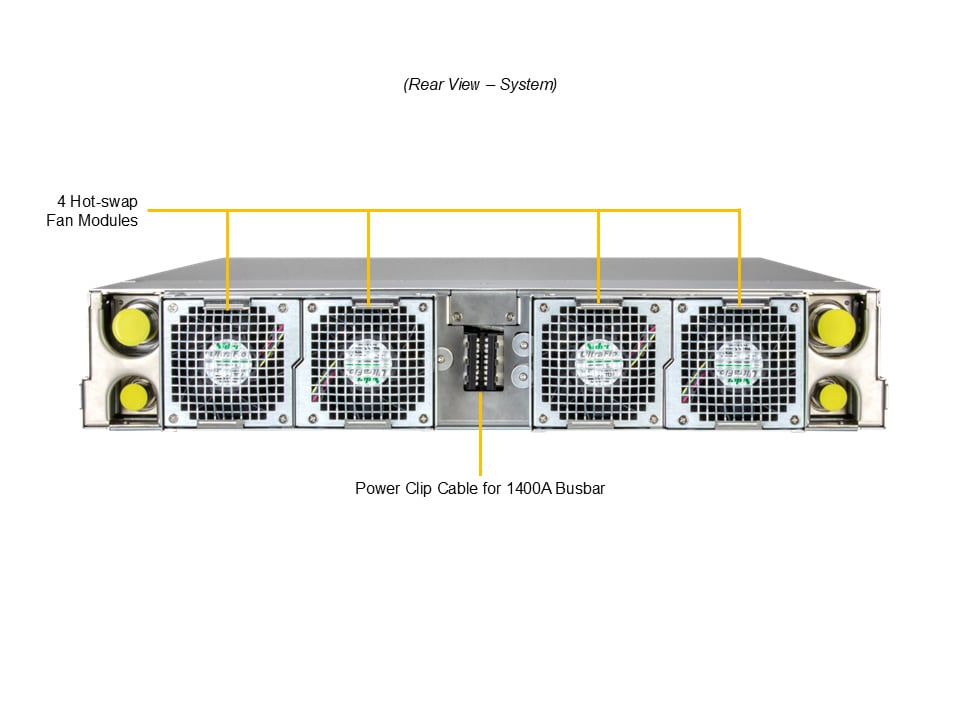

| Fans | Up to 4x 80mm + up to 4x 40mm fans |
| Air Shroud | 3 Air Shrouds |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) |
