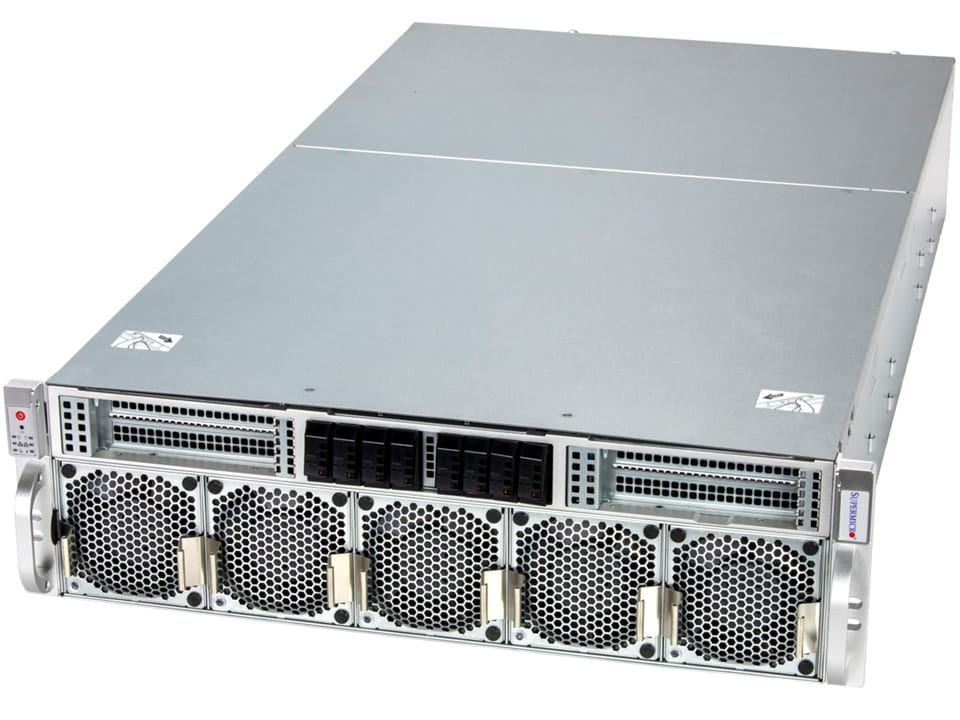

SYS-322GA-NR
3U Intel DP Edge Data Center System with Up to 10 PCIe 5.0 x16 slots + Up to 14 E1.S NVMe Drives.
3U
Form factor
—
GPUs
Intel Xeon
2× socket
14 bays
Drive bays
Air
Cooling
3×3200W
Power
- GPU architecture: NVIDIA Blackwell, NVIDIA® Hopper
- NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Server Edition, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, H200 NVL (141GB), H100, L40S
- 2× socket — Intel® Xeon® 6900 series processors with P-cores
- Storage: 14 max drive bays
- Power: 3x 3200W Redundant (2 + 1)
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X14DBG-XAP |
Processor
| CPU | Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores |
| Core Count | 128C/256T; 504MB Cache per CPU |
| Note | Supports up to 500W TDP CPUs |
GPU
| Max GPU Count | Up to 8 double-width or 19 single-width GPUs |
| Supported GPU | NVIDIA PCIe: H100, A10, H200 NVL (141GB), L40S, RTX PRO™ 4000/5000/6000 Blackwell, RTX 5000 Ada |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | PCIe / NVIDIA® NVLink™ |
System Memory
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): 6TB 8800MT/s ECC DDR5 MRDIMM |
On-Board Devices
| Chipset | System on Chip |
Input / Output
| LAN | 1 RJ45 1GbE Dedicated BMC LAN port |
| USB | 2 USB 3.2 Gen1 Type-A |
| Video | 1 VGA port |
| TPM | 1 TPM header |
System BIOS
| BIOS Type | AMI 64MB SPI Flash EEPROM |
Management
| Software | SuperCloud Composer®; Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | Monitors for CPU Cores, Chipset & Memory voltages |
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
Chassis
| Form Factor | 3U Rackmount |
| Model | CSE-MX301TS-R0NDFP |
Dimensions and Weight
| Enclosure | 438.4 x 132.1 x 800 mm (17.26" x 5.2" x 31.5") |
| Package | 740 x 340 x 1190 mm (29" x 13" x 47") |
| Weight | Gross Weight: 135 lbs (61.24 kg) Net Weight: 70 lbs (32 kg) |
| Available Color | Silver |

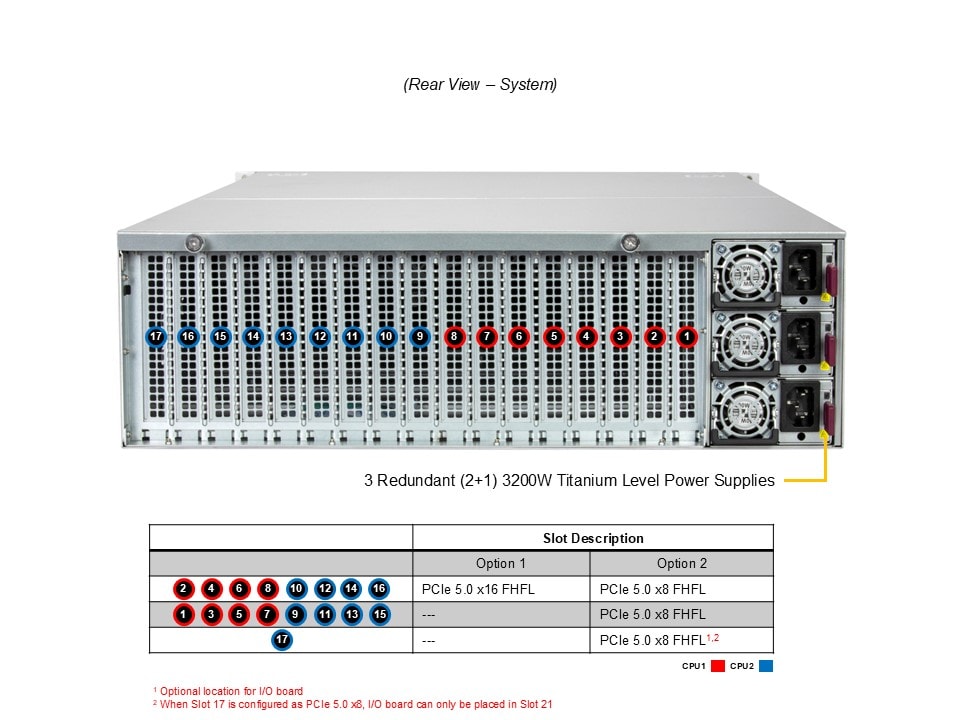

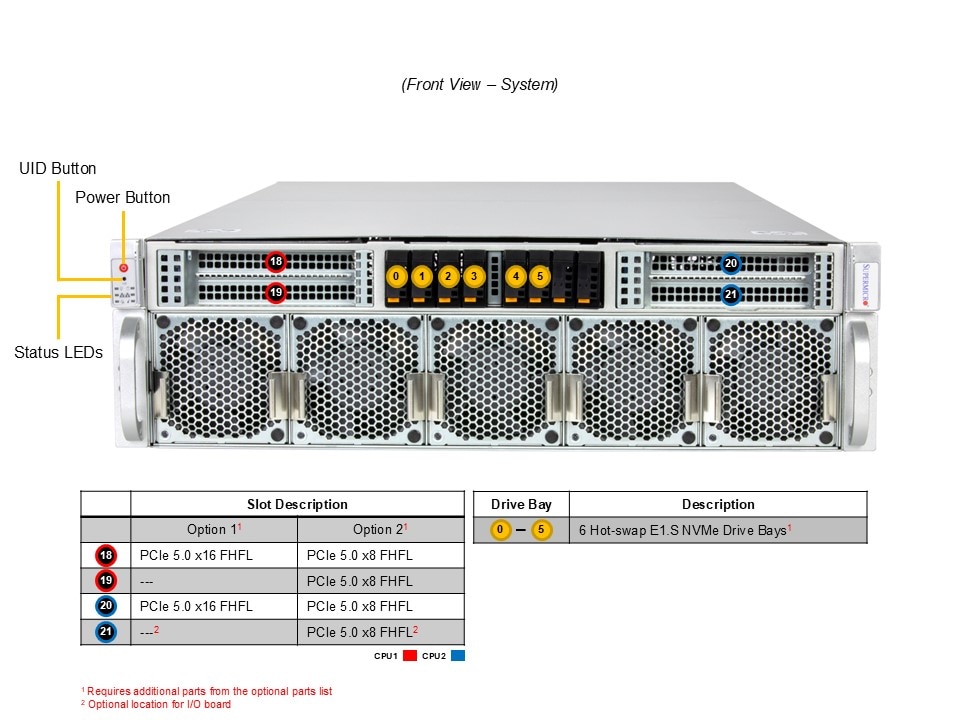

Expansion Slots
| PCI-Express (PCIe) Configuration | Default: 8 PCIe 5.0 x16 FHFL double-width slots Option B: 20 PCIe 5.0 x8 FHFL slots |
| CXL | Up to 17 CXL 2.0 x16/x8 devices |
Drive Bays / Storage

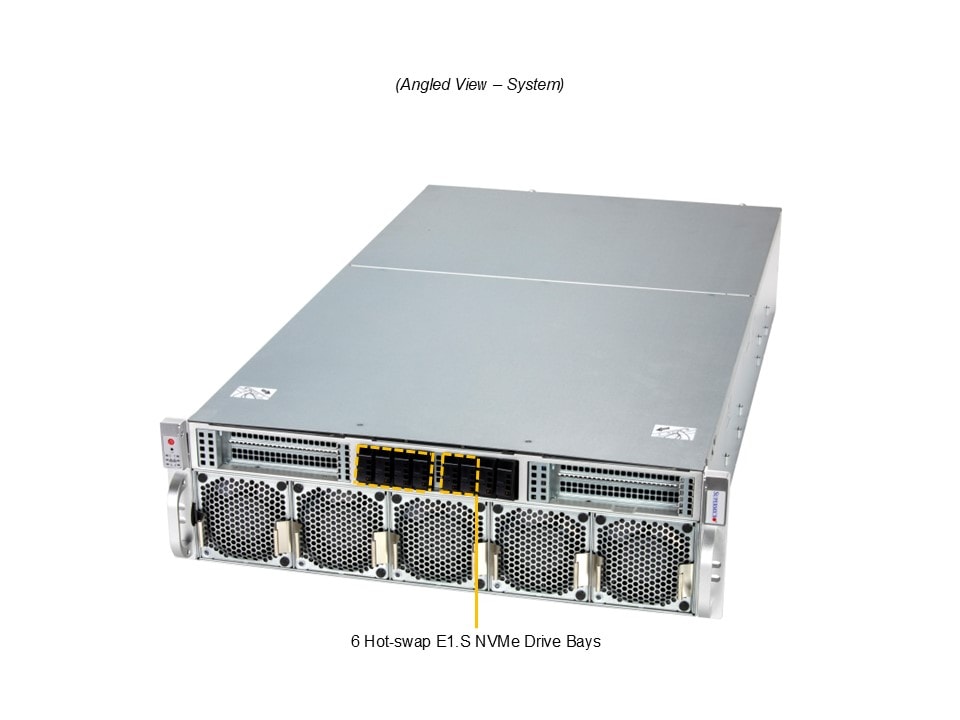

| Drive Bays Configuration | Up to 14 hot-swap E1.S PCIe 5.0 x4 NVMe, or up to 6 hot-swap 2.5" PCIe 5.0 x4 NVMe |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key) |
System Cooling
| Fans | Up to 5 front 8cm + up to 6 internal 6cm fans |
| Air Shroud | 1 Air Shroud |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Power Supply
| PSU | 3x 3200W Redundant (2 + 1) Titanium Level (96%) |
