Supermicro · PCIe 4.0 GPU Lines (4U)

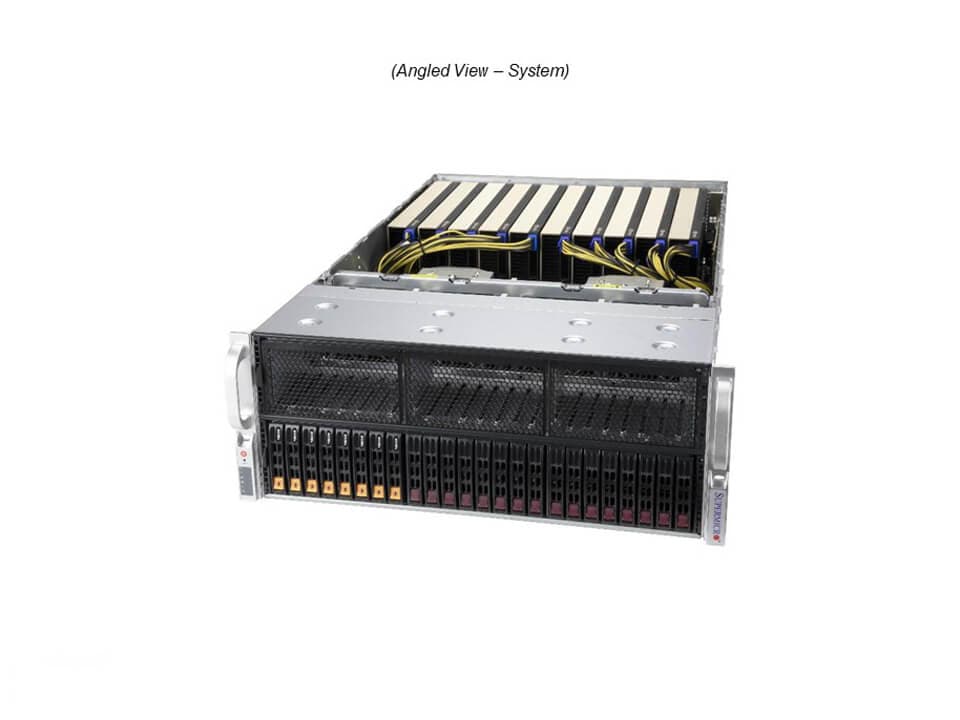

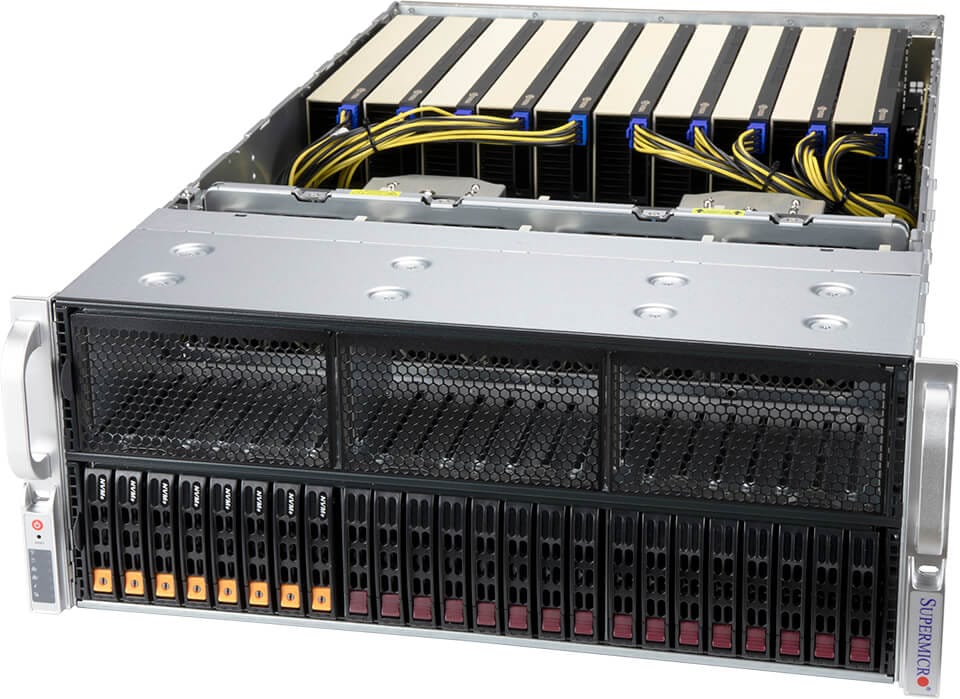

SYS-420GP-TNR
DP Intel, Dual-Root System with 10 PCIe GPUs.
4U
Form factor
10
GPUs
Intel Xeon
2× socket
24 bays
Drive bays
Air
Cooling
4×2000W
Power
- Supports up to 10 GPUs — NVIDIA® Ampere, Intel® Data Center GPU Flex Series
- NVIDIA PCIe: H100, L40, A100
- 2× socket — 3rd Gen Intel® Xeon® Scalable processors
- Storage: 24 default / 34 max drive bays
- Power: 4x 2000W Redundant
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X12DPG-OA6 |
Processor
| CPU | Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors |
| Core Count | Up to 40C/80T; Up to 60MB Cache per CPU |
| Chipset | Intel® C621A |
GPU
| Max GPU Count | Up to 10 double-width or 10 single-width GPUs |
| Supported GPU | NVIDIA PCIe: H100, A10, A100, A16, A2, A30, A40, L40, RTX A2000/A4000/A4500/A5000/A5500/A6000 Intel PCIe: Data Center GPU Flex 170 |
| CPU-GPU Interconnect | PCIe 4.0 x16 Switch Dual-Root |
| GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (optional) |
System Memory
| Memory | Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| Persistent Memory | Supports Intel® Optane™ persistent memory 200 series |
On-Board Devices
| SATA | SATA (6Gbps); RAID 0/1/5/10 support |
| Network Connectivity | 2 RJ45 1GbE with Intel® I350 |
Input / Output
| Video | 1 VGA port |
| Networking | AIOM / OCP 3.0 support |
System BIOS
| BIOS Type | AMI 32MB SPI Flash EEPROM |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | 7+1 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
Chassis
| Form Factor | 4U Rackmount |
| Model | CSE-418G2TS-R4016BP |
Dimensions and Weight
| Enclosure | 437 x 178 x 737 mm (17.2" x 7" x 29") |
| Package | 685 x 675 x 1041 mm (27" x 26.57" x 41") |
| Weight | Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg) |
| Available Color | Black front & silver body |
Expansion Slots

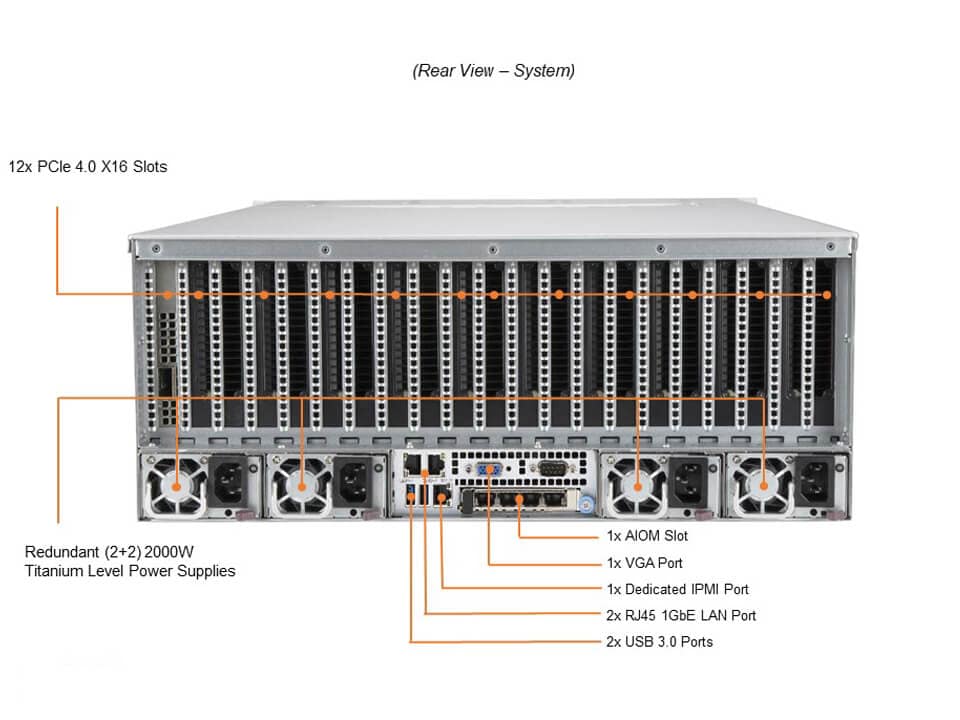

| PCI-Express (PCIe) Configuration | Default: 12 PCIe 4.0 x16 FHFL slots |
Drive Bays / Storage

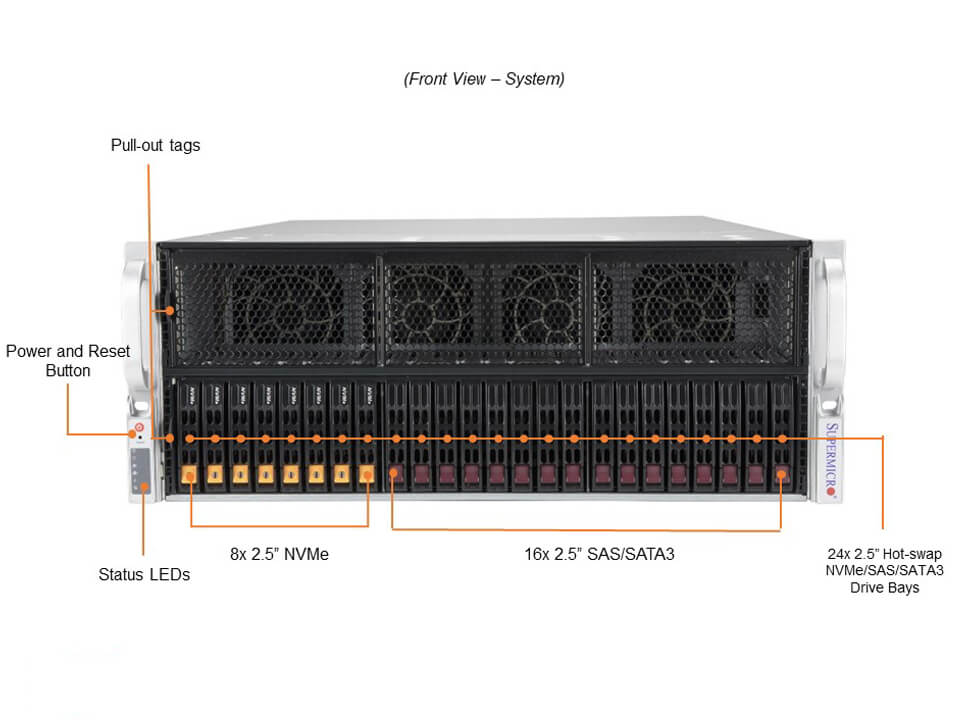

| Drive Bays Configuration | Default: Total 24 bays — 8 front hot-swap 2.5" NVMe + 16 front hot-swap 2.5" SAS/SATA Option A: 24 front hot-swap 2.5" NVMe/SAS/SATA |
| M.2 | 2 M.2 NVMe/SATA slots (M-key) |
System Cooling
| Fans | Up to 8 heavy duty fans with optimal fan speed control |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Power Supply
| PSU | 4x 2000W Redundant Titanium Level (96%) |
