Supermicro · Liquid-Cooled Universal GPU Systems

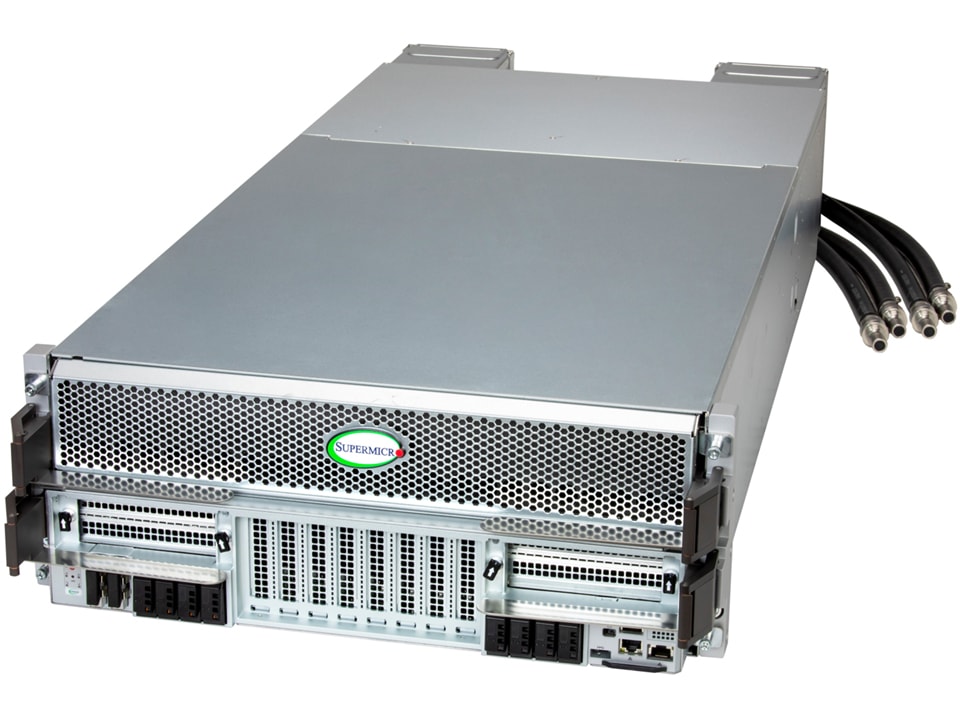

SYS-422GS-NBRT-LCC
DP Intel 4U Liquid-Cooled System with NVIDIA HGX B200 8-GPU (complete rack and onsite service are required).
4U
Form factor
8
GPUs
Intel Xeon
2× socket
8 bays
Drive bays
Liquid
Cooling
4×6600W
Power
- Supports up to 8 GPUs — NVIDIA Blackwell
- NVIDIA SXM: HGX B200 8-GPU (180GB)
- 2× socket — Intel® Xeon® 6700 series processors with P-cores
- Storage: 8 default drive bays
- Power: 4x 6600W Redundant (2 + 2)
- Direct-to-chip (D2C) liquid cooling
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X14DBG-LC |
Processor
| CPU | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700-series processors with P-cores |
| Core Count | Up to 86C/172T; Up to 336MB Cache per CPU |
GPU
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B200 8-GPU (180GB) — 1.44TB GPU memory space |
| GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ |
System Memory
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM |
On-Board Devices
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GbE with Intel® X710-AT2 |
Input / Output
| LAN | 2 RJ45 10GbE (Intel® X710) |
| USB | 1 USB 3.0 Type-A (front); 1 USB 2.0 Type-A (front) |
| Video | 1 VGA port (front); 1 Mini-DP port (front) |
| TPM | 1 TPM header |
System BIOS
| BIOS Type | AMI 64MB UEFI |
Management
| Software | SuperCloud Composer®; Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | 8+4 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
Chassis
| Form Factor | 4U Rackmount |
| Model | CSE-GP405TS-R000NP |
Dimensions and Weight
| Enclosure | 448 x 174 x 991.4 mm (17.6" x 6.85" x 39.03") |
| Package | 795 x 410 x 1395 mm (31.29" x 16.14" x 54.92") |
| Weight | Gross Weight: 222 lbs (101 kg) Net Weight: 187 lbs (85 kg) |
| Available Color | Silver |
Expansion Slots

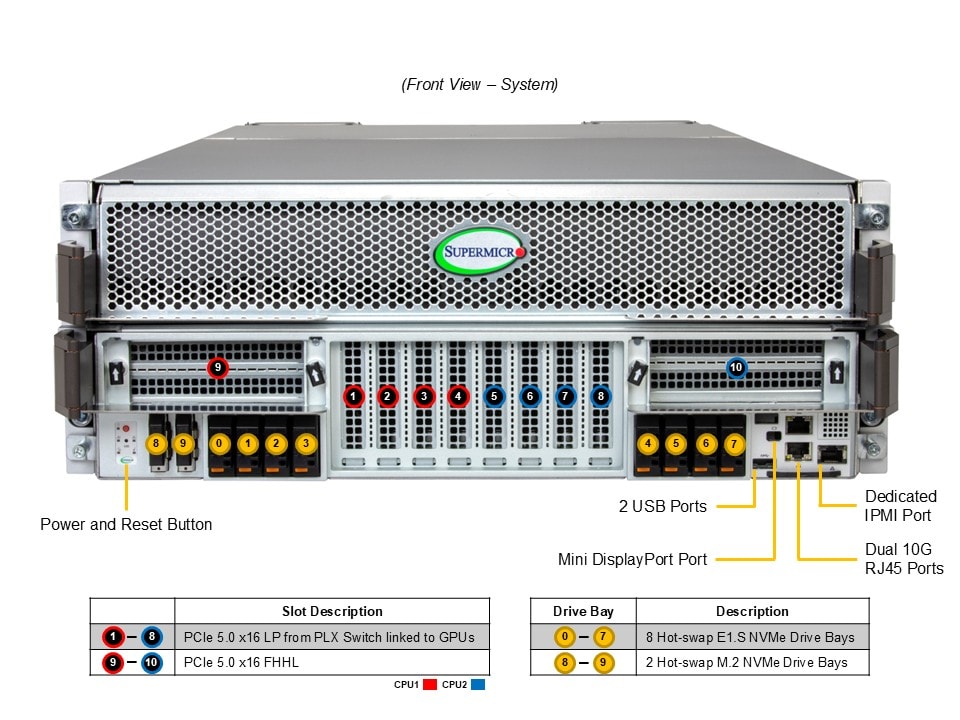

| PCI-Express (PCIe) Configuration | Default: 8 PCIe 5.0 x16 LP slots + 2 PCIe 5.0 x16 FHHL slots |
Drive Bays / Storage

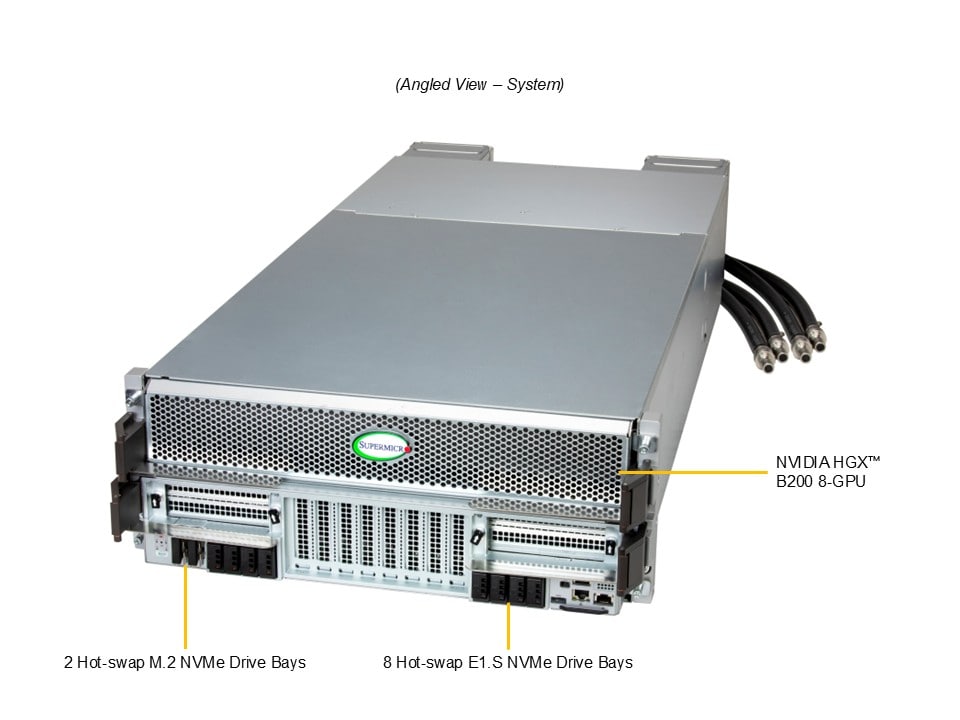

| Drive Bays Configuration | Default: Total 8 bays — 8 front hot-swap E1.S NVMe |
| M.2 | 2 M.2 NVMe slots (M-key; RAID support via S3808N controller) |
System Cooling
| Fans | 4x 80mm fans with optimal fan speed control |
| Liquid Cooling | Direct-to-Chip (D2C) Cold Plate — up to 87% heat capture (max config) |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Power Supply

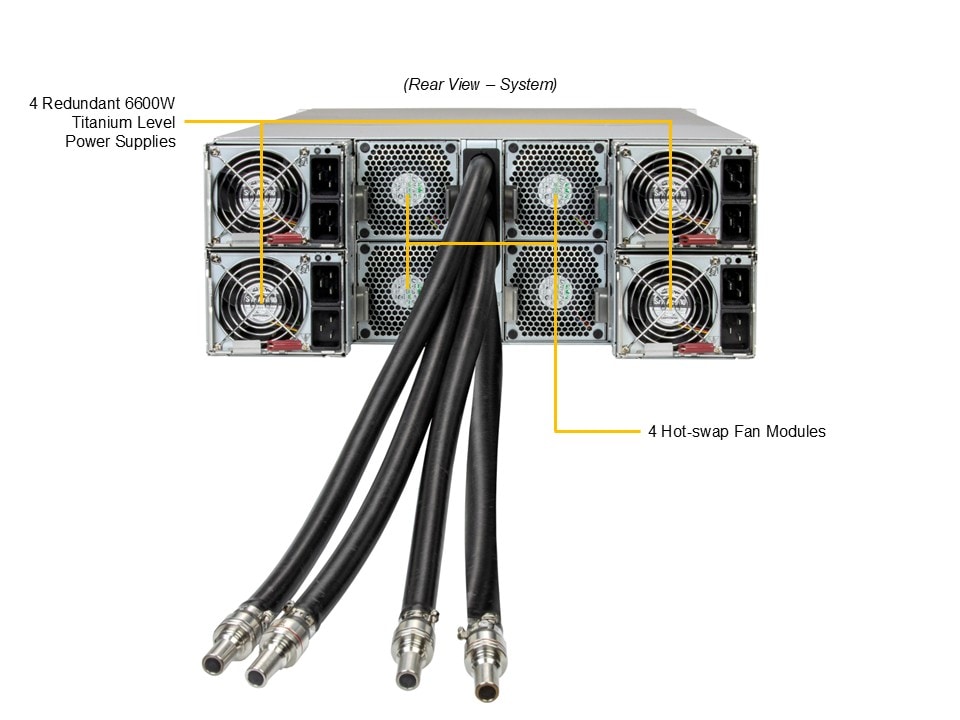

| PSU | 4x 6600W Redundant (2 + 2) Titanium Level (96%) hot-plug |
