Supermicro · Universal GPU Systems (8U/10U)

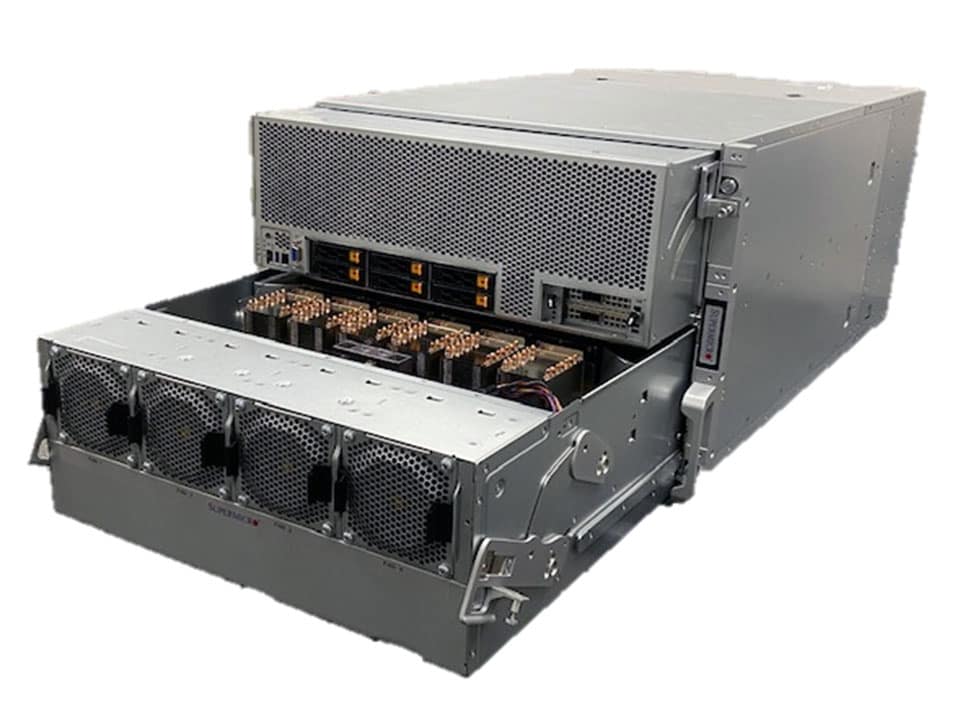

SYS-820GP-TNAR+

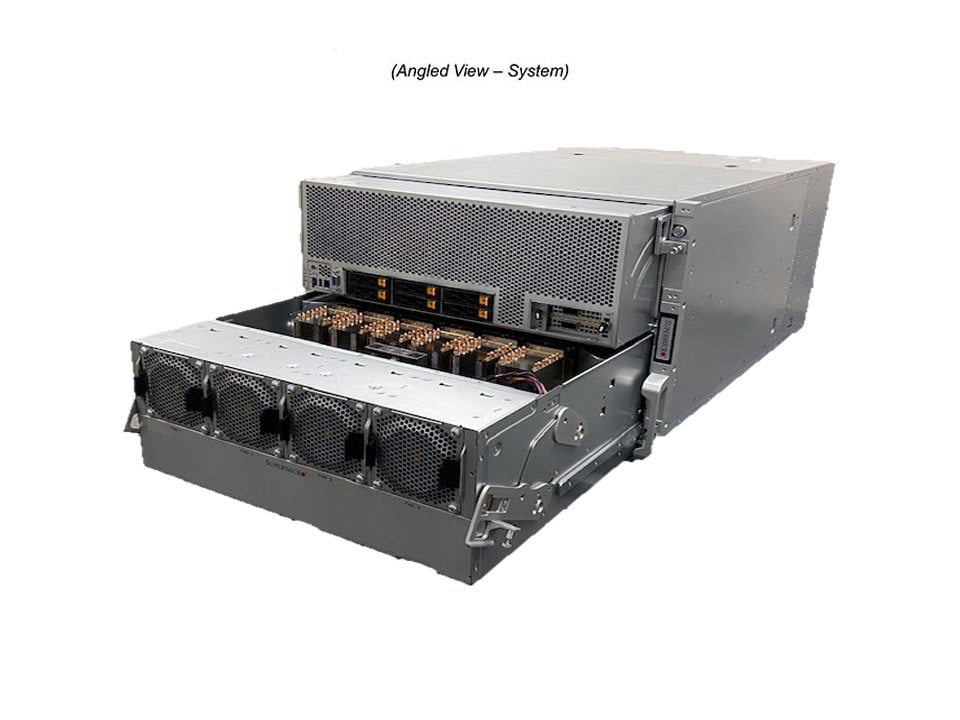

DP Intel 8U Universal GPU system with NVIDIA HGX A100 8-GPU.
8U
Form factor
8
GPUs
Intel Xeon
2× socket
6 bays
Drive bays
Air
Cooling
1×3000W
Power
- Supports up to 8 GPUs — NVIDIA® Ampere
- 2× socket — 3rd Gen Intel® Xeon® Scalable processors
- Storage: 6 drive bays
- Power: 1x 3000W Redundant
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X12DGO-6 |
Processor
| CPU | Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors |
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
GPU
| Max GPU Count | NVIDIA HGX A100 8-GPU |
| CPU-GPU Interconnect | PCIe 4.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ |
System Memory
| Memory | Slot Count: 32 DIMM slots |
On-Board Devices
| Network Connectivity | 2 RJ45 10GbE with Intel® X550-AT2 (optional) |
Input / Output
| Video | 1 VGA port |
System BIOS
| BIOS Type | AMI 32MB SPI Flash EEPROM |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
Chassis
| Form Factor | 8U Rackmount |
| Model | CSE-GP802TS |
Dimensions and Weight
| Height | 13.8" (351 mm) |
| Width | 17.6" (449 mm) |
| Depth | 31.5" (800 mm) |
| Package | 29.5" (H) x 27.5" (W) x 51.2" (D) |
| Weight | Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg) |
| Available Color | Black front & silver body |
System Cooling
| Fans | Up to 4 heavy duty fans with optimal fan speed control |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) |
Power Supply
| PSU | 4x 3000W redundant Titanium level power supplies |
