Supermicro · Universal GPU Systems (8U/10U)

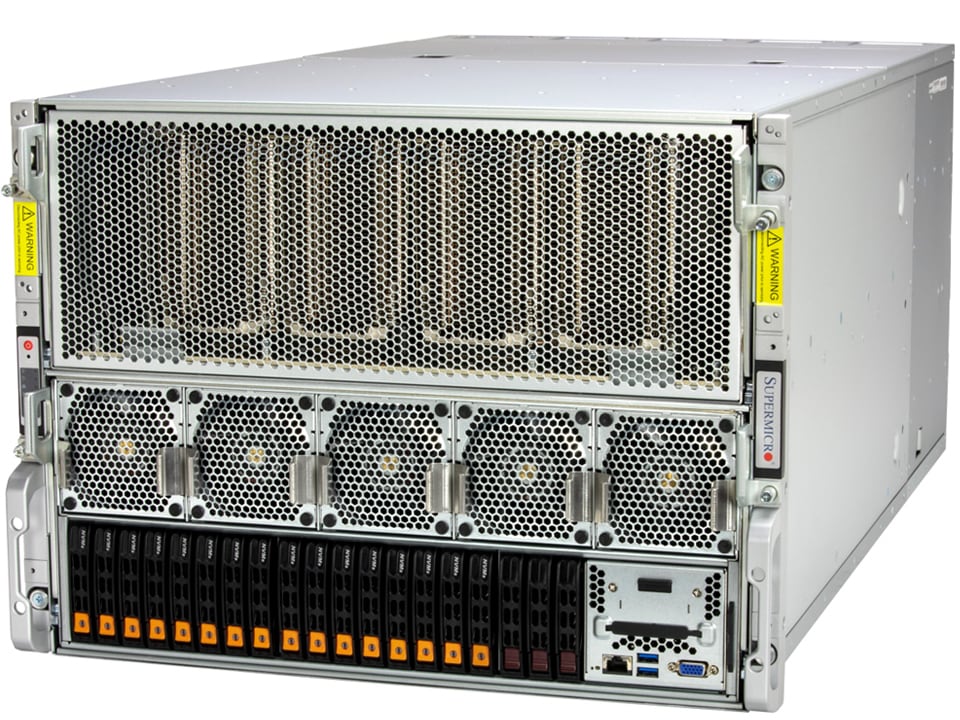

SYS-821GE-TNHR
DP Intel 8U System with NVIDIA HGX H100/H200 8-GPU and Rear I/O.
8U
Form factor
8
GPUs
Intel Xeon
2× socket
15 bays
Drive bays
Air
Cooling
6×3000W
Power
- Supports up to 8 GPUs — NVIDIA® Hopper
- NVIDIA SXM: HGX H200 8-GPU (141GB), HGX H100 8-GPU (80GB)
- 2× socket — 5th Gen Intel® Xeon®/4th Gen Intel® Xeon® Scalable processors
- Storage: 15 default / 19 max drive bays
- Power: 6x 3000W Redundant (4 + 2)
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X13DEG-OAD |
Processor
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
GPU
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ |
System Memory
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
On-Board Devices
| Chipset | Intel® C741 |
| Network Connectivity | 2 SFP+ 10GbE with Intel® X710-BM2 (optional); 2 SFP28 25GbE with Broadcom® BCM57414 (optional) |
Input / Output
| Video | 1 VGA port |
| TPM | 1 TPM header |
System BIOS
| BIOS Type | AMI 32MB SPI Flash EEPROM |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
Chassis
| Form Factor | 8U Rackmount |
| Model | CSE-GP801TS |
Dimensions and Weight
| Height | 14" (355.6 mm) |
| Width | 17.2" (437 mm) |
| Depth | 33.2" (843.28 mm) |
| Package | 29.5" (H) x 27.5" (W) x 51.2" (D) |
| Weight | Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg) |
| Available Color | Black front & silver body |
Expansion Slots

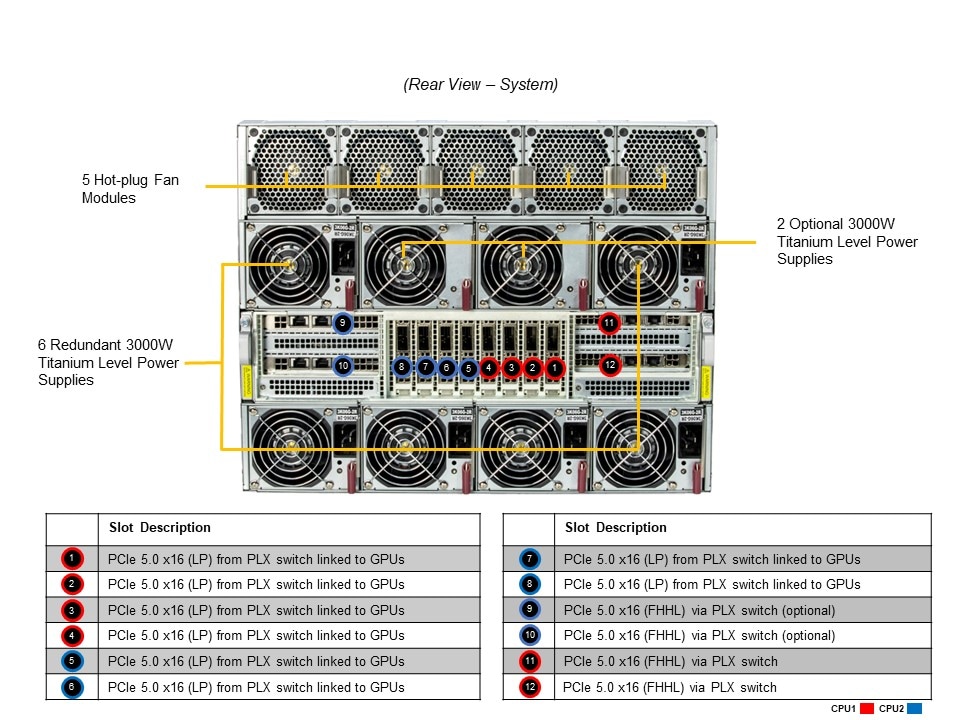

| PCI-Express (PCIe) Configuration | Default: 8 PCIe 5.0 x16 LP slots + 2 PCIe 5.0 x16 FHHL slots Option A: 2 PCIe 5.0 x16 FHHL slots |
Drive Bays / Storage

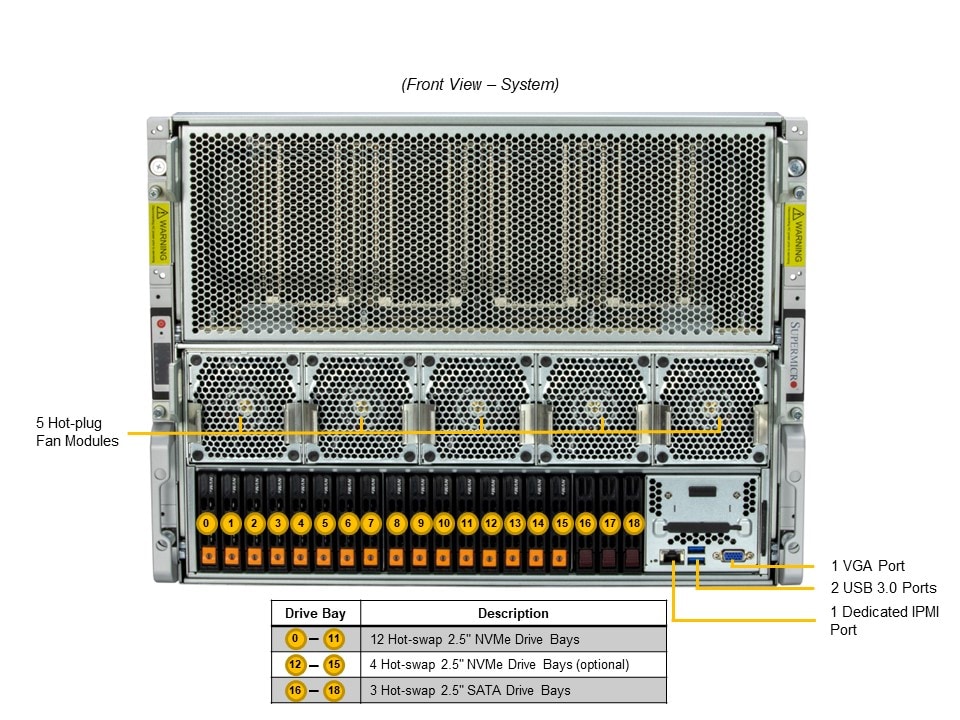

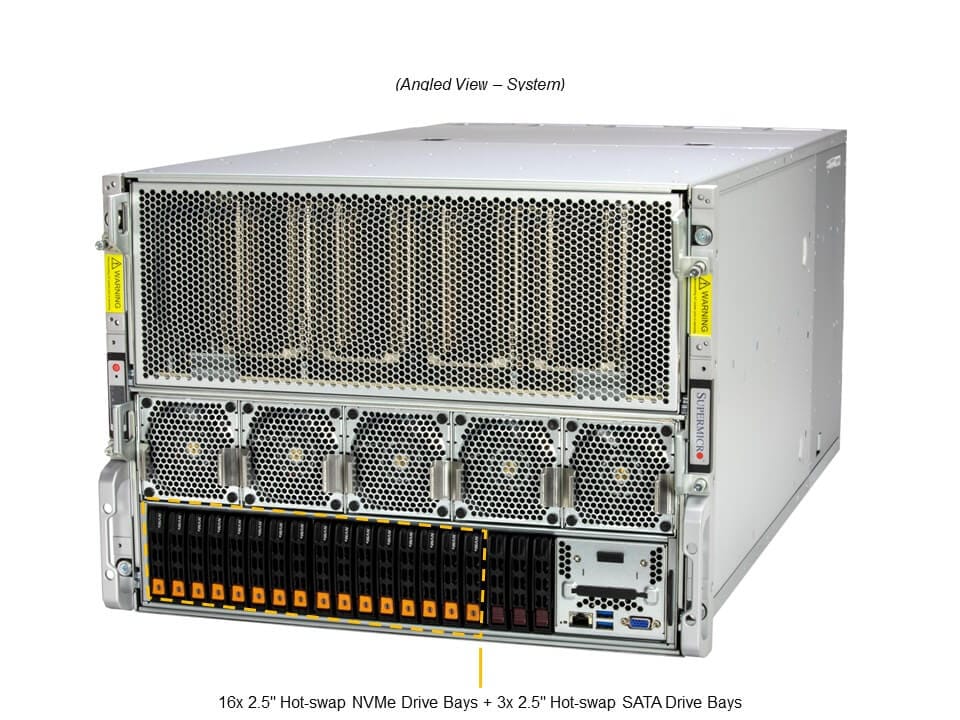

| Drive Bays Configuration | Default: Total 15 bays — 12 front hot-swap 2.5" NVMe + 3 front hot-swap 2.5" SATA Option A: Total 19 bays — 16 NVMe + 3 SATA |
| M.2 | 2 M.2 NVMe slots (M-key) |
System Cooling
| Fans | Up to 10 heavy duty fans with optimal fan speed control |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) |
Power Supply
| PSU | 8x 3000W (4+4) Redundant Power Supplies |
