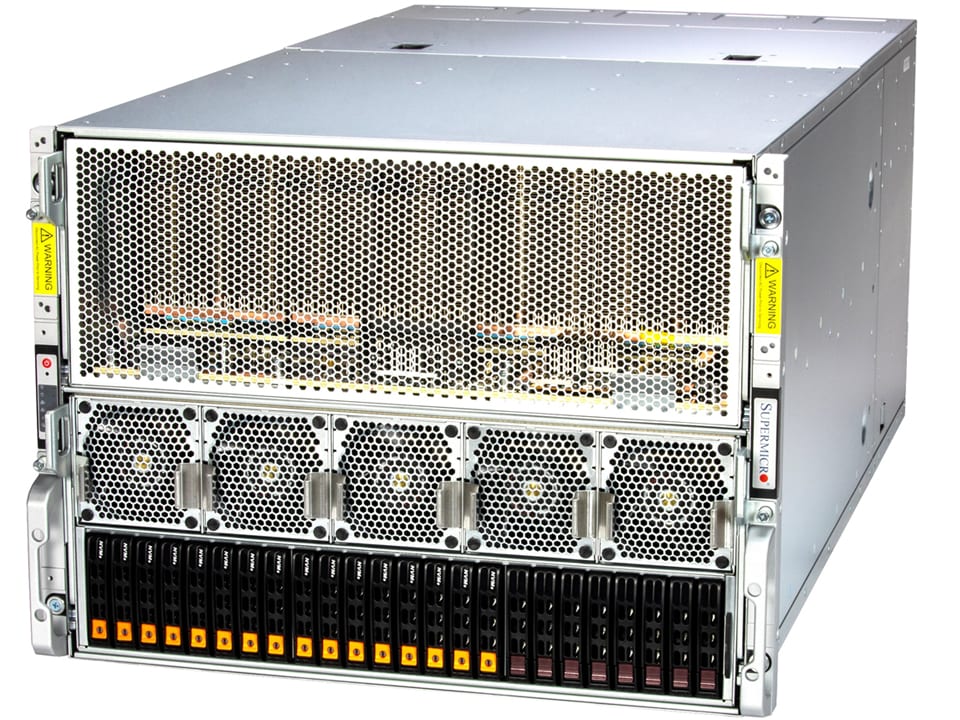

SYS-821GE-TNMR2
DP Intel 8U System with AMD MI300X 8-GPU and Rear I/O.
8U
Form factor
8
GPUs
AMD EPYC
2× socket
20 bays
Drive bays
Air
Cooling
6×3000W
Power
- Supports up to 8 GPUs — AMD Instinct
- AMD: Instinct™ MI300X Accelerators
- 2× socket — 5th Gen Intel® Xeon®/4th Gen Intel® Xeon® Scalable processors
- Storage: 20 default drive bays
- Power: 6x 3000W Redundant
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X13DEG-MA |
Processor
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (air cooled) |
GPU
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | AMD Instinct™ MI300X Accelerators |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | AMD Infinity Fabric™ Link |
System Memory
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
On-Board Devices
| Network Connectivity | 2 SFP28 25GbE with Broadcom® BCM57414 (optional); 2 RJ45 10GbE with Intel® X710-AT2 (optional) |
Input / Output
| USB | 1 USB 3.0 Type-A (rear) |
| Video | 1 VGA port |
System BIOS
| BIOS Type | AMI 32MB SPI Flash EEPROM |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | 8+4 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
Chassis
| Form Factor | 8U Rackmount |
| Model | CSE-GP801TS-R000NPF-D2 |
Dimensions and Weight
| Enclosure | 447 x 356 x 843 mm (17.7" x 13.8" x 33.2") |
| Package | 750 x 700 x 1300 mm (29.5" x 27.6" x 51") |
| Weight | Gross Weight: 178.6 lbs (81 kg) Net Weight: 116.2 lbs (53 kg) |
| Available Color | Silver |
Expansion Slots

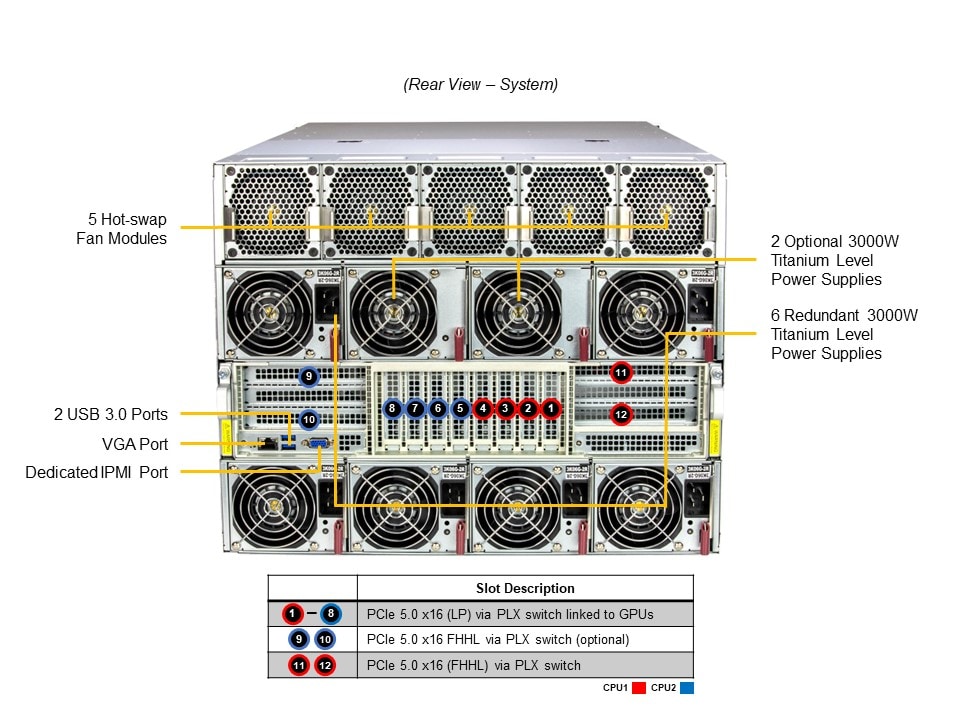

| PCI-Express (PCIe) Configuration | Default: 8 PCIe 5.0 x16 LP slots + 2 PCIe 5.0 x16 FHHL slots (+2 PCIe 5.0 x16 FHHL optional) |
Drive Bays / Storage

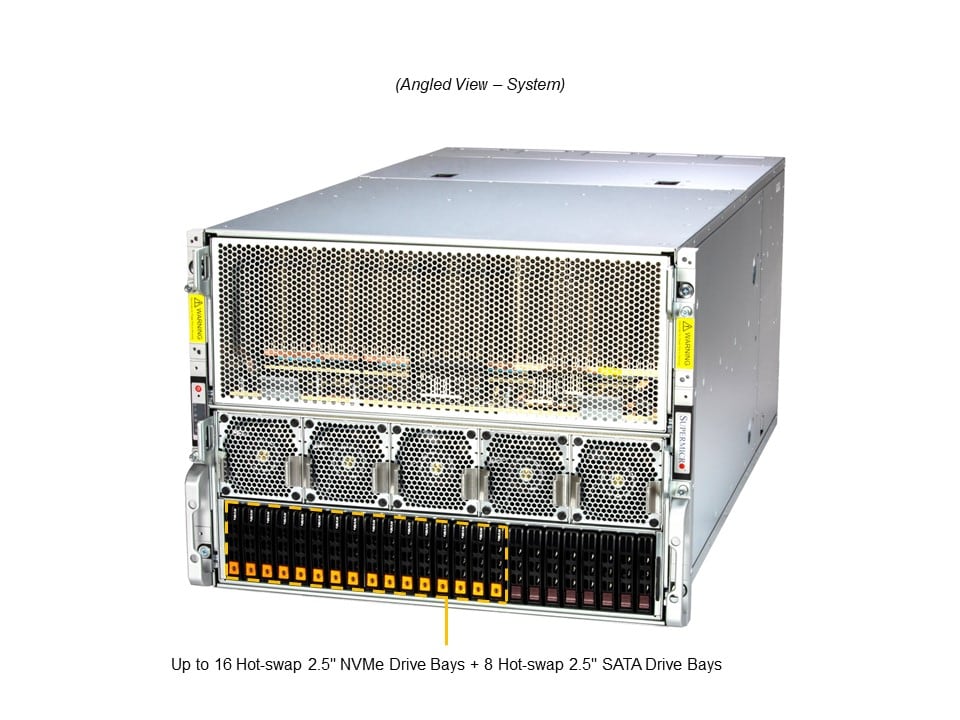

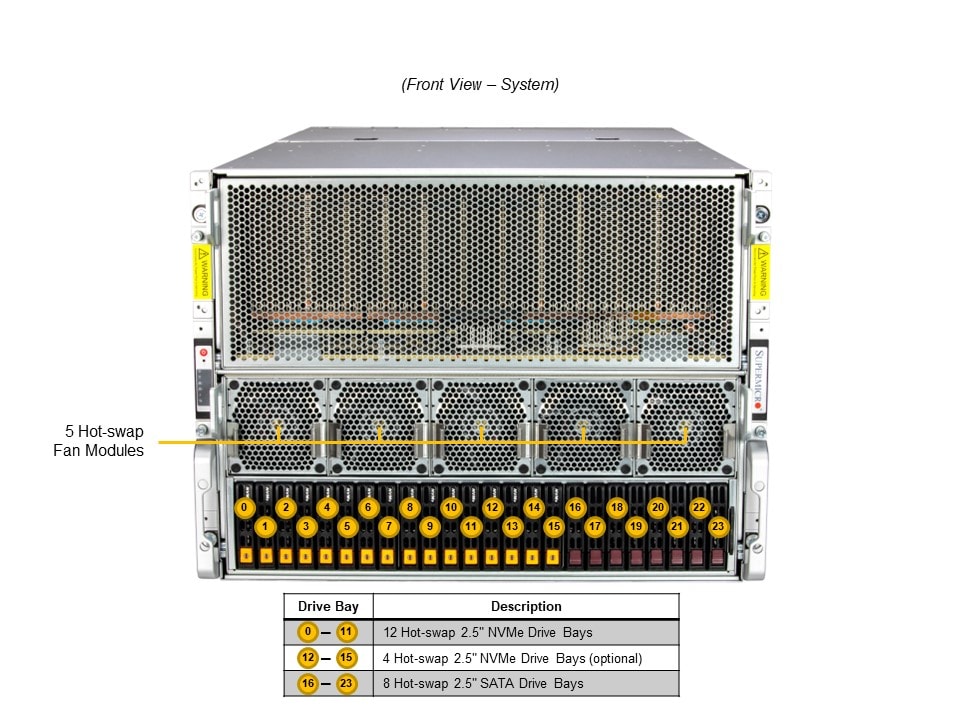

| Drive Bays Configuration | Default: Total 20 bays — 12 front hot-swap 2.5" NVMe + 8 front hot-swap 2.5" SATA Option A: 4 front hot-swap 2.5" NVMe |
| M.2 | 2 M.2 PCIe 3.0 x2 NVMe slots (M-key) |
System Cooling
| Fans | Up to 10 heavy duty fans with optimal fan speed control |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Power Supply
| PSU | 6x 3000W Redundant Titanium Level (96%) |
