Supermicro · Universal GPU Systems (8U/10U)

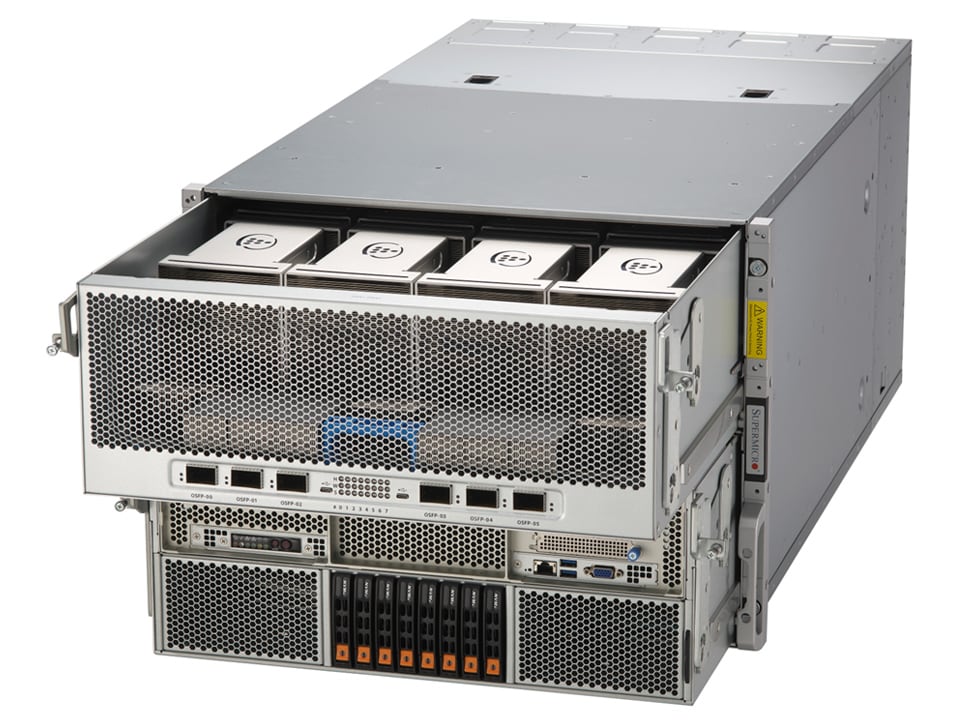

SYS-822GA-NGR3
8U AI training platform with 8 Intel Gaudi® 3 accelerators.
8U
Form factor
—
GPUs
Intel Xeon
2× socket
—
Drive bays
Air
Cooling
—
Power
- GPU architecture:
- 2× socket — Intel® Xeon® Scalable (Dual Socket)
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X14DBG-GD |
Processor
| CPU | Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores |
| Core Count | Up to 128C/256T; Up to 504MB Cache per CPU |
GPU
| Max GPU Count | 8 onboard OAM GPUs |
| Supported GPU | Intel OAM: Gaudi® 3 |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | 24x 200GbE (48 x 112Gbps) PAM4 SerDes links |
System Memory
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM/LRDIMM Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM |
Networking

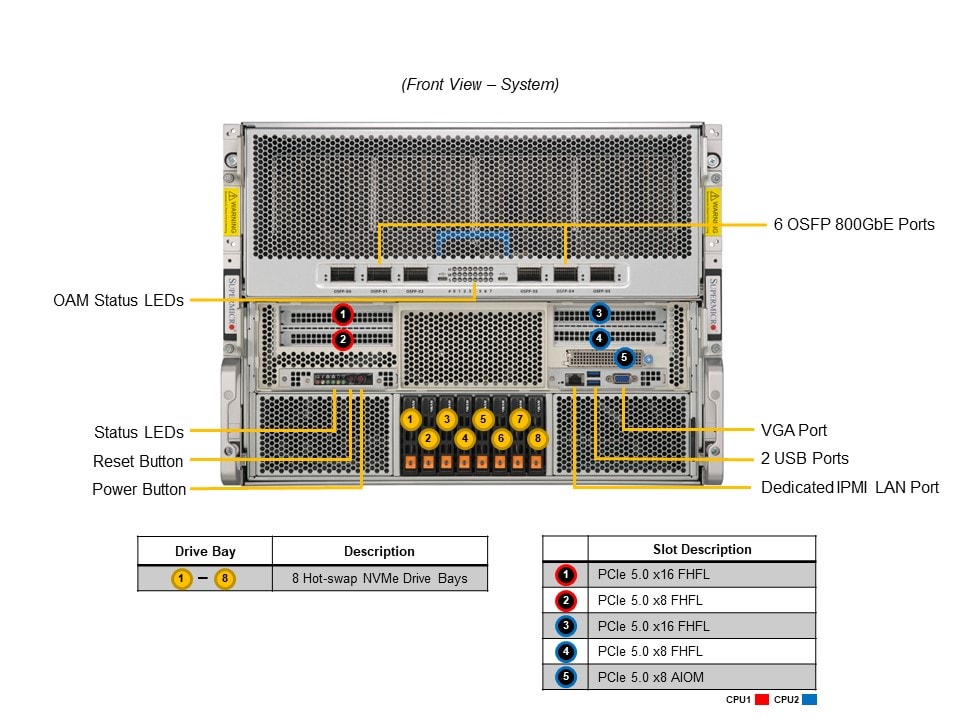

| On-Board LAN | 6 OSFP 800GbE ports |
| AIOM | Dual-port 10GBASE-T (default) |
Input / Output
| LAN | 1 RJ45 1GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 Type-A |
| Video | 1 VGA port |
System BIOS
| BIOS Type | AMI 32MB SPI Flash EEPROM |
Management
| Software | SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | 7+1 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
Chassis
| Form Factor | 8U Rackmount |
| Model | CSE-GP806TS-R000NPF |
Dimensions and Weight
| Enclosure | 447 x 356 x 800 mm (17.6" x 13.8" x 33.2") |
| Package | 750 x 700 x 1300 mm (29.5" x 27.6" x 51") |
| Weight | Gross Weight: 308 lbs (140 kg) Net Weight: 282 lbs (128 kg) |
| Available Color | Silver |
Expansion Slots
| PCI-Express (PCIe) Configuration | Default: 2 PCIe 5.0 x16 FHFL slots + 2 PCIe 5.0 x8 FHFL slots + 1 PCIe 5.0 x4 AIOM (OCP 3.0) |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110) |
Drive Bays / Storage

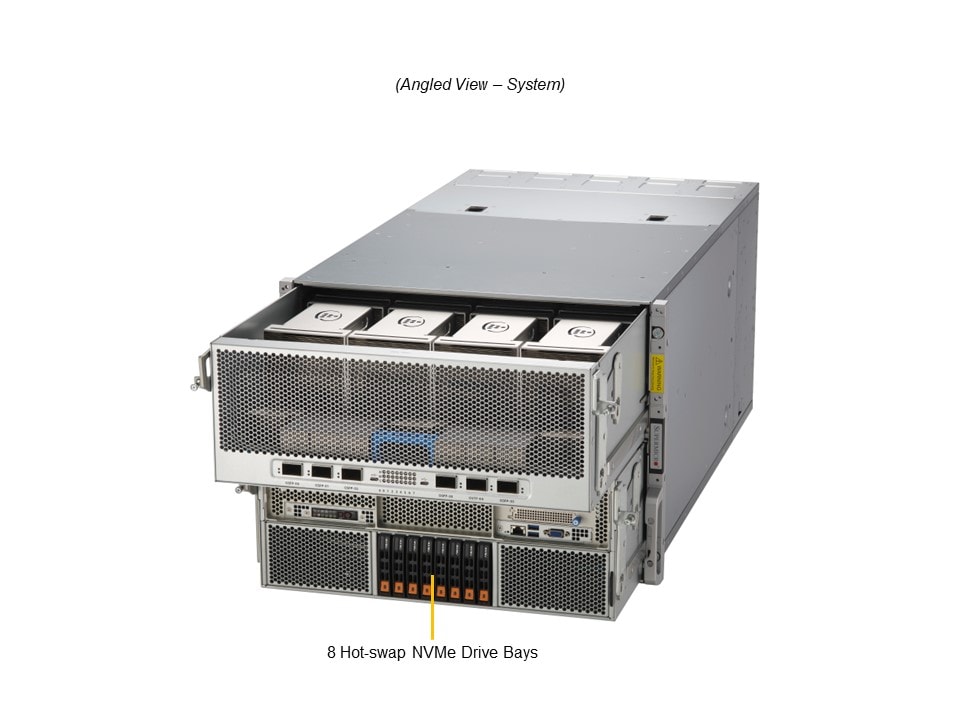

| Drive Bays Configuration | Default: Total 8 bays — 8 front hot-swap 2.5" PCIe 5.0 NVMe |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110) |
System Cooling

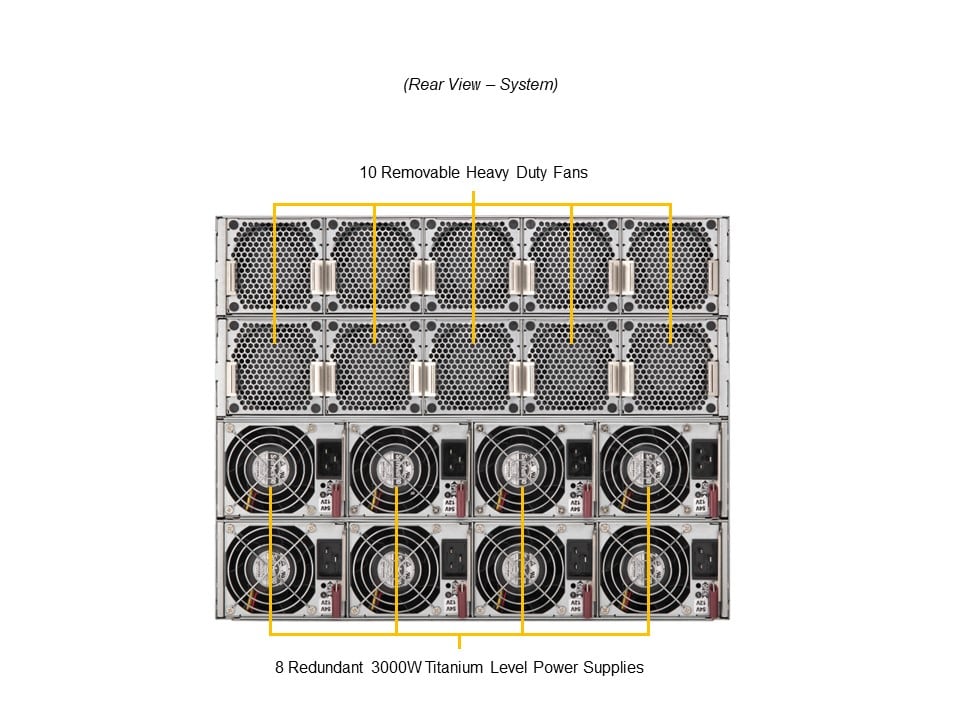

| Fans | Up to 10 removable heavy-duty 80x80x80mm fans |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
Power Supply
| PSU | 8x 3000W Redundant (4 + 4) Titanium Level (96%) |
