Supermicro · Universal GPU Systems (8U/10U)

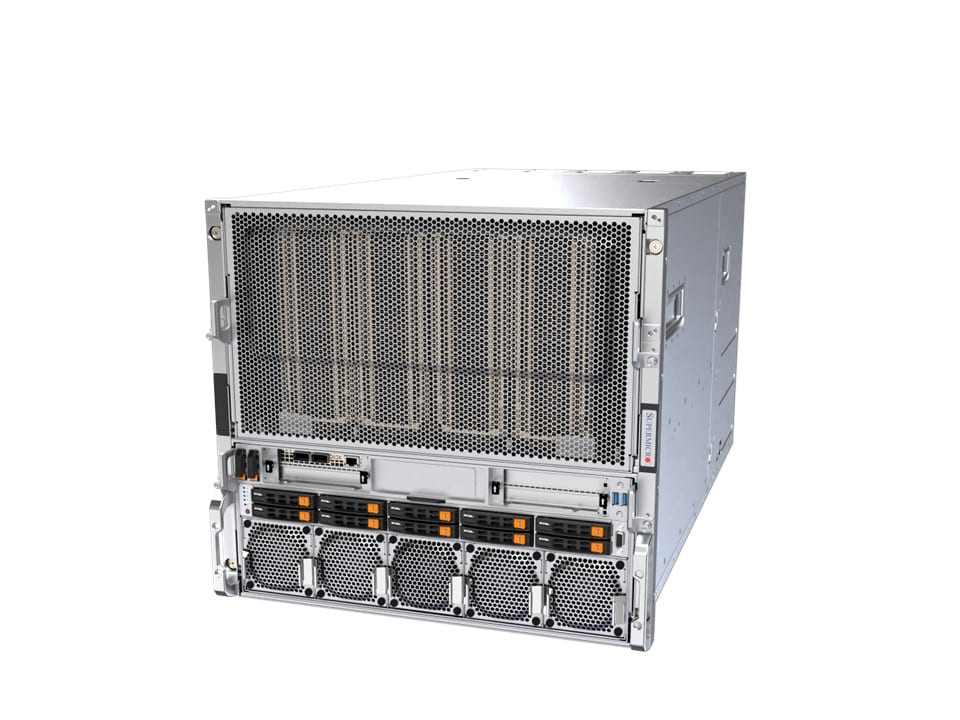

SYS-A21GE-NBRT
DP Intel 10U System with NVIDIA HGX B200 8-GPU.
10U
Form factor
8
GPUs
Intel Xeon
2× socket
10 bays
Drive bays
Air
Cooling
6×5250W
Power

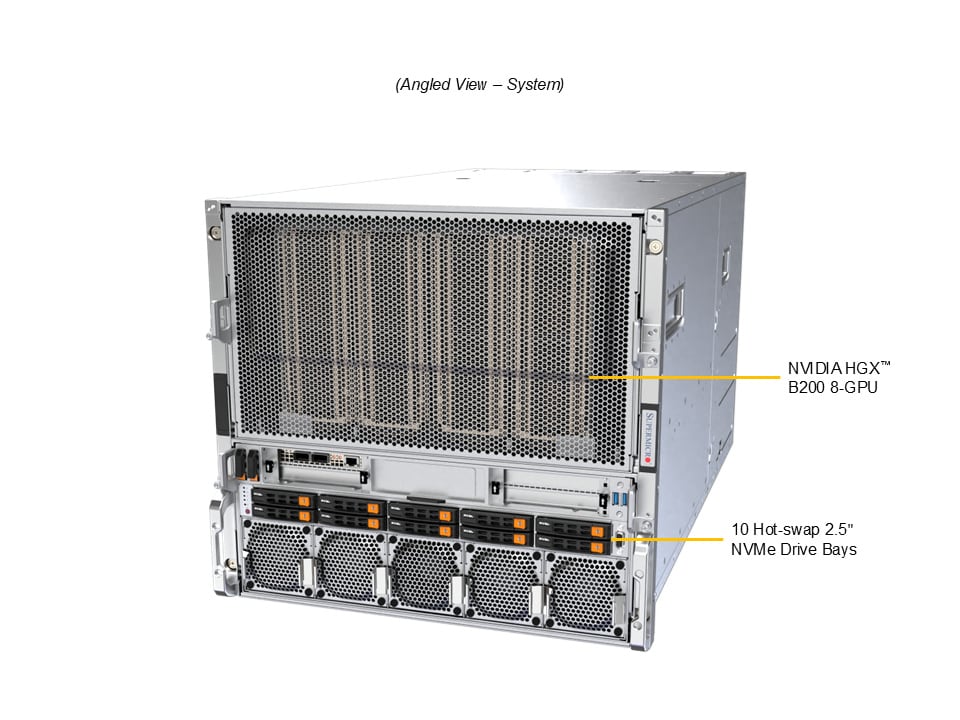

- Supports up to 8 GPUs — NVIDIA Blackwell
- NVIDIA SXM: HGX B200 8-GPU (180GB)
- 2× socket — 5th Gen Intel® Xeon®/4th Gen Intel® Xeon® Scalable processors
- Storage: 10 default drive bays
- Power: 6x 5250W Redundant (3 + 3)
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X13DEG-D |
Processor
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
GPU
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B200 8-GPU (180GB) — 1.4TB HBM3e GPU memory space |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ |
System Memory
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
On-Board Devices
| Network Connectivity | 2 RJ45 10GbE |
Input / Output
| USB | 2 USB 3.0 Type-A (front) |
| Video | 1 VGA port |
| TPM | 1 TPM header |
System BIOS
| BIOS Type | AMI 32MB UEFI |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | 8+4 Phase-switching voltage regulator; monitors CPU Cores, Chipset & Memory voltages |
| FAN | Fans with tachometer monitoring; PWM fan connectors with speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
Chassis
| Form Factor | 10U Rackmount |
| Model | CSE-GP1001TS-R000NPF |
Dimensions and Weight
| Enclosure | 449 x 438.8 x 843.28 mm (17.6" x 17.2" x 33.2") |
| Package | 730 x 710 x 1280 mm (28.74" x 27.95" x 50.39") |
| Weight | Gross Weight: 341 lbs (155 kg) Net Weight: 293 lbs (133 kg) |
| Available Color | Silver |
Expansion Slots

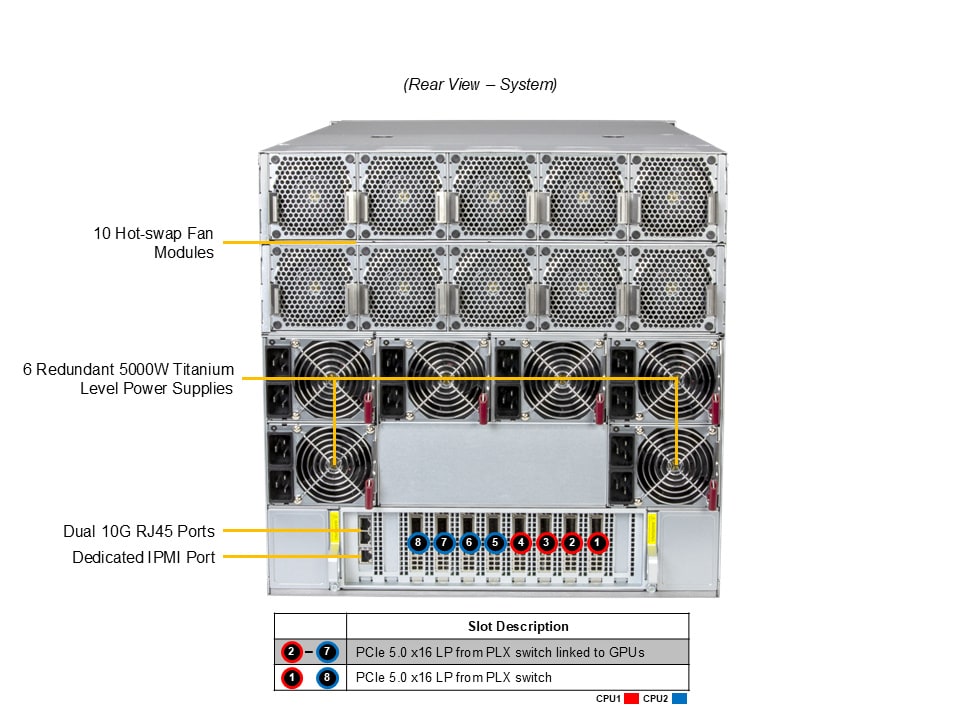

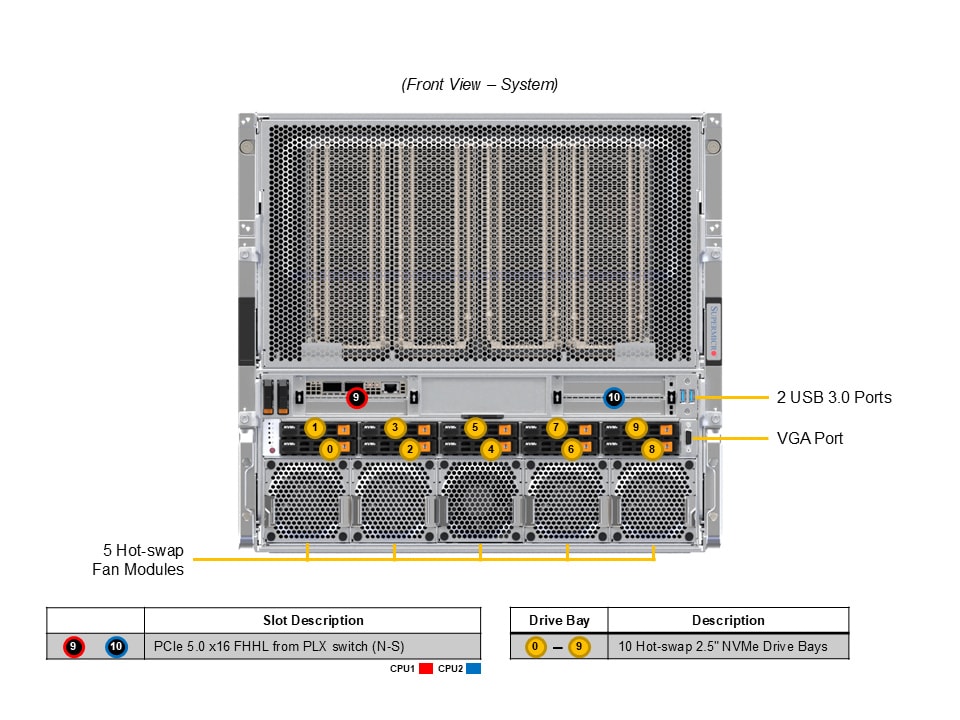

| PCI-Express (PCIe) Configuration | Default: 8 PCIe 5.0 x16 LP slots + 2 PCIe 5.0 x16 FHHL slots |
Drive Bays / Storage
| Drive Bays Configuration | Default: Total 10 bays — 10 front hot-swap 2.5" PCIe 5.0 x4 NVMe |
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110; VROC required for RAID) |
System Cooling
| Fans | Up to 15 hot-swappable 80mm fans + up to 4 internal 60mm fans |
Operating Environment
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Power Supply
| PSU | 6x 5250W Redundant (3 + 3) Titanium Level (96%) hot-plug |
