Supermicro · All-Flash NVMe

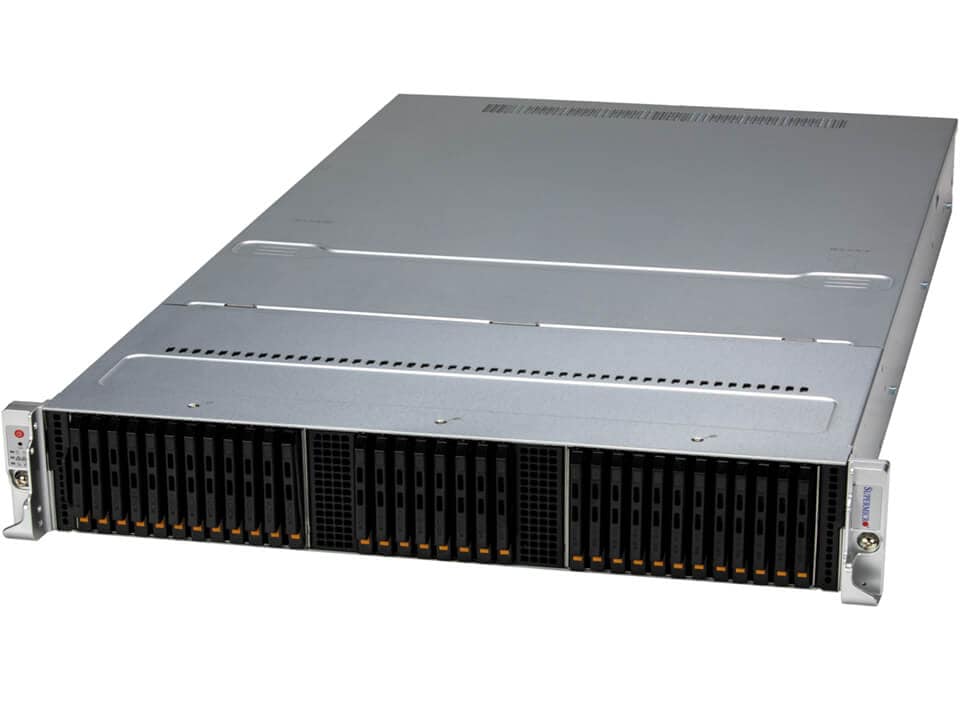

ASG-2115S-NE332R
2U front-loading all-flash storage server with 32 E3.S NVMe drives and PCIe 5.0.
2U
Form factor
34 Bays
Hot-swap
AMD EPYC
Single-socket
Up to 9TB
DDR5 ECC
PCIe 5.0
Gen5 slots
2×2000W
Titanium
- Single Socket SP5 AMD EPYC™ 9004/9005 Series processor
- up to 400W TDP
- Supports 24 DIMMs with 2DPC, up to 9TB memory capacity with 384GB 3DS RDIMM DDR5 ECC memory
- 2 PCIe 5.0 x16 slots & 2 AIOM slots (OCP 3.0 SFF compliant)

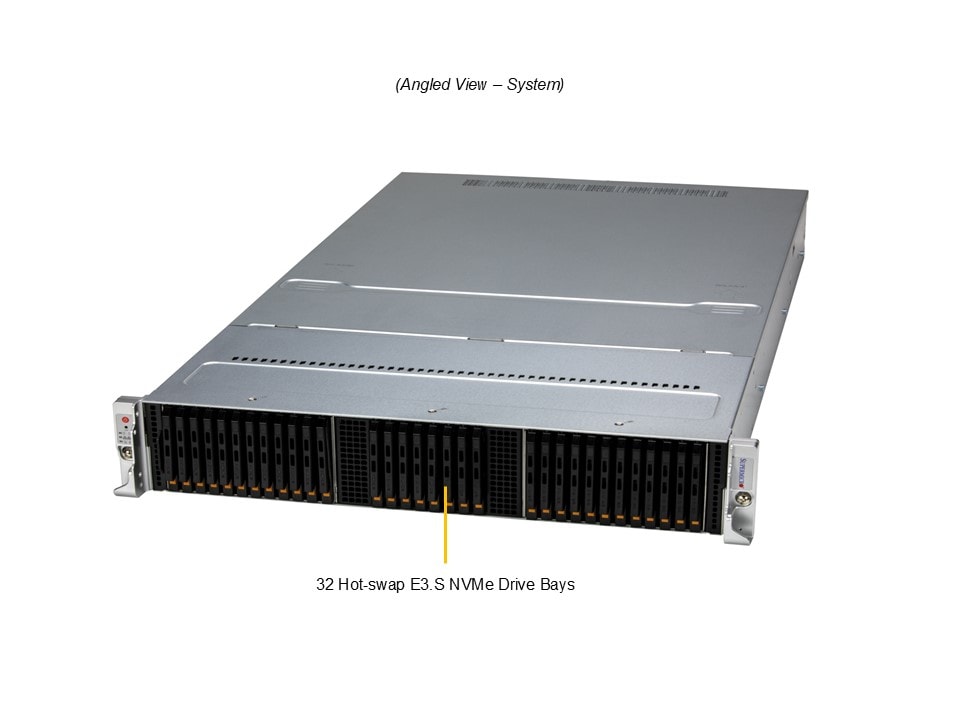

- 32 Hot-swap E3.S (7.5mm) NVMe PCIe 5.0 x2 drive bays
- Redundant Titanium 2000W Power Supplies
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super H13SSF |
Processor
| CPU | Single Socket SP5 AMD EPYC™ 9004/9005 Series Processors |
System Memory

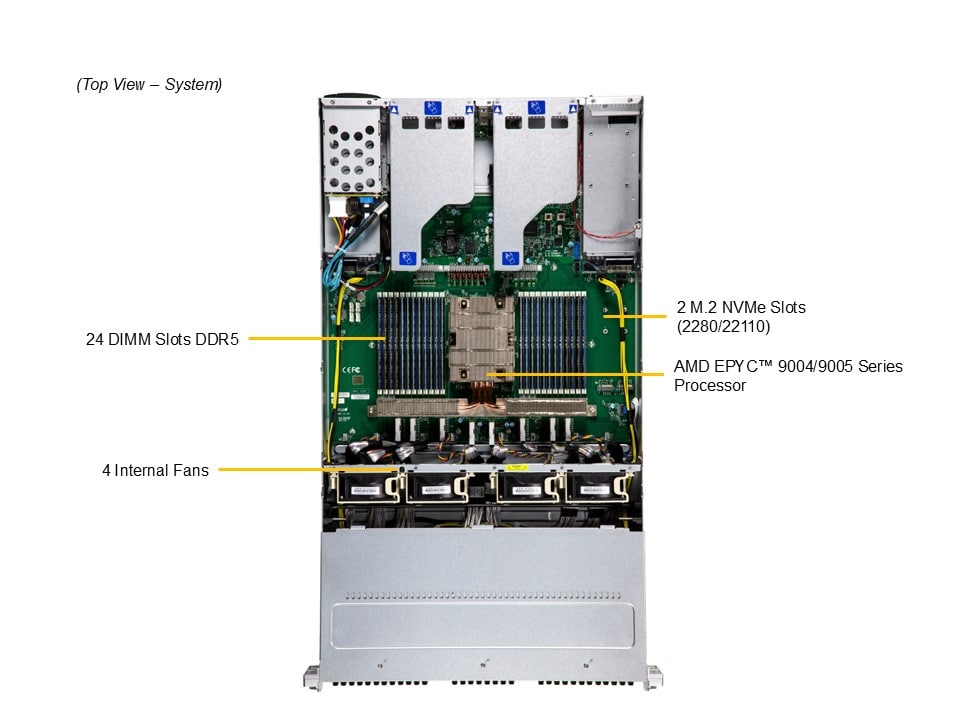

| Slot Count | 24 DIMM slots Max Memory (9005, 1DPC): Up to 4.5TB 5200MT/s ECC DDR5 RDIMM Max Memory (9005, 2DPC): Up to 9TB 4400MT/s ECC DDR5 RDIMM Max Memory (9004, 1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM |
Drive Bays / Storage

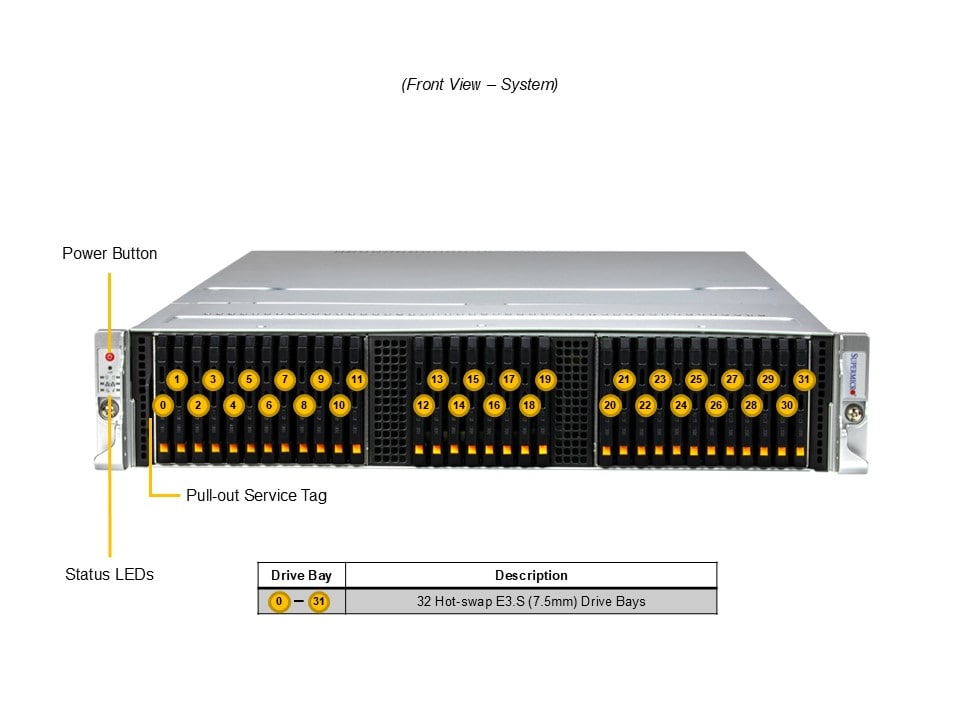

| Configuration Default | Total 34 bays 32 front hot-swap E3.S 1T PCIe 5.0 x2 NVMe drive bays 2 rear hot-swap 2.5" SATA drive bays |
| M.2 | 2 M.2 PCIe 3.0 NVMe slots (M-key 2280/22110) |
Expansion Slots

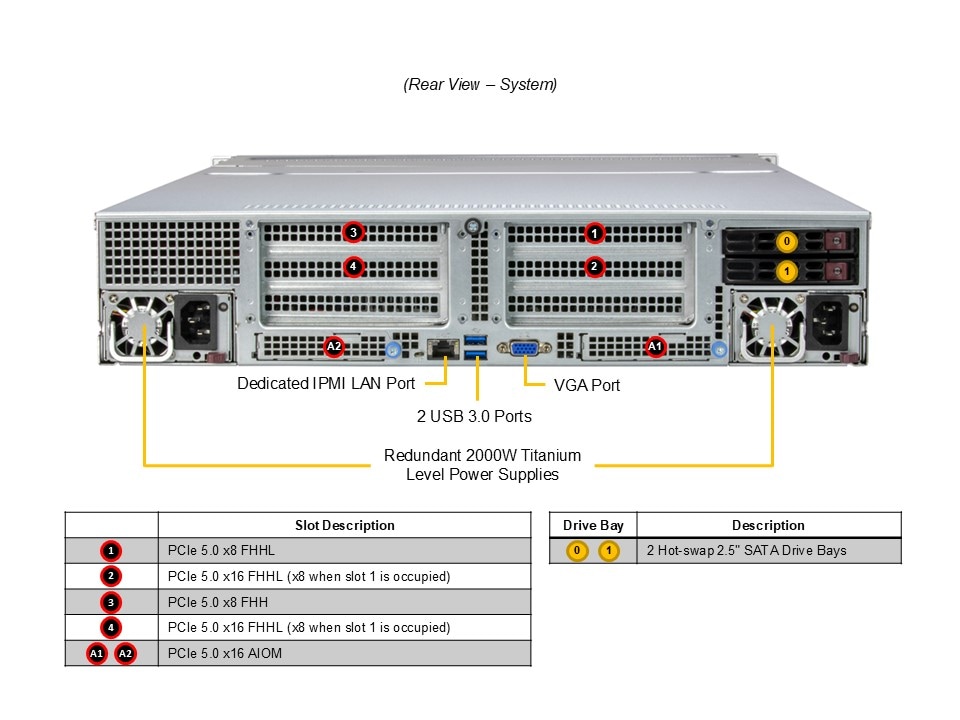

| PCIe | Default 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
On-Board Devices
| Network Connectivity | Via AIOM |
Input / Output
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) 2 USB 3.0 ports(front) |
| Video | 1 VGA port |
System Cooling
| Fans | Up to 4 Heavy Duty 8cm Fan(s) |
| Air Shroud | 1 Air Shroud |
Power Supply
| PSU | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
System BIOS
| BIOS Type | AMI 32MB SPI Flash EEPROM |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
Form Factor
| Form factor | 2U Rackmount |
| Enclosure | 438.4 x 89.8 x 789.9mm (17.2" x 3.5" x 30.8") |
| Package | 673.1 x 254 x 1098.55mm (26.5" x 10" x 43.25") |
Chassis
| Model | CSE-236E3-R2K08P |
Dimensions & Weight
| Weight | Gross Weight: 77 lbs (34.93 kg) |
| Net Weight | 55 lbs (24.95 kg) |
| Available Color | Silver |
Operating Environment
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Non-operating Relative Humidity | 5% to 95% (non-condensing) |
