Supermicro · All-Flash NVMe

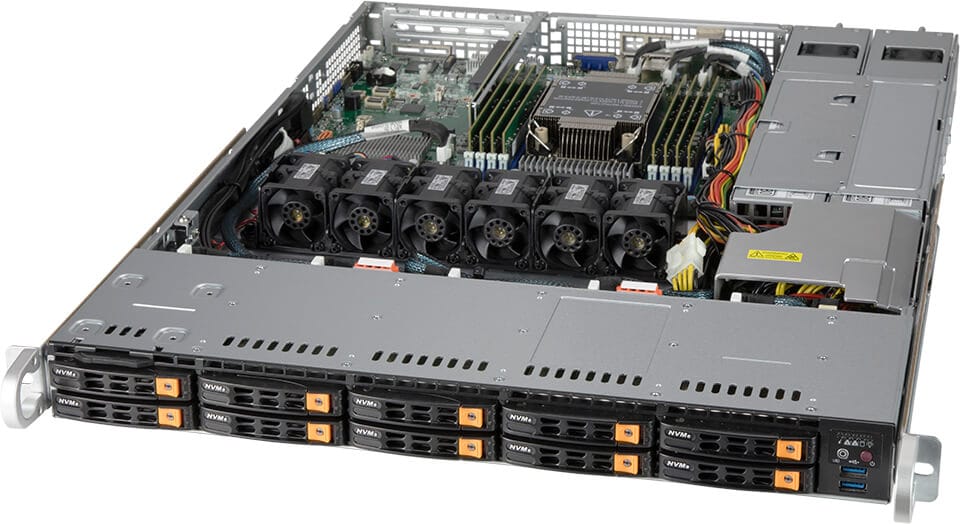

SSG-110P-NTR10
1U front-loading storage server with 10 hot-swap 2.5" NVMe bays and PCIe 4.0.
1U
Form factor
10 Bays
Hot-swap
Intel Xeon Scalable
Single-socket
Up to 2TB
DDR5 ECC
PCIe 4.0
Gen4 slots
2×860W
Titanium

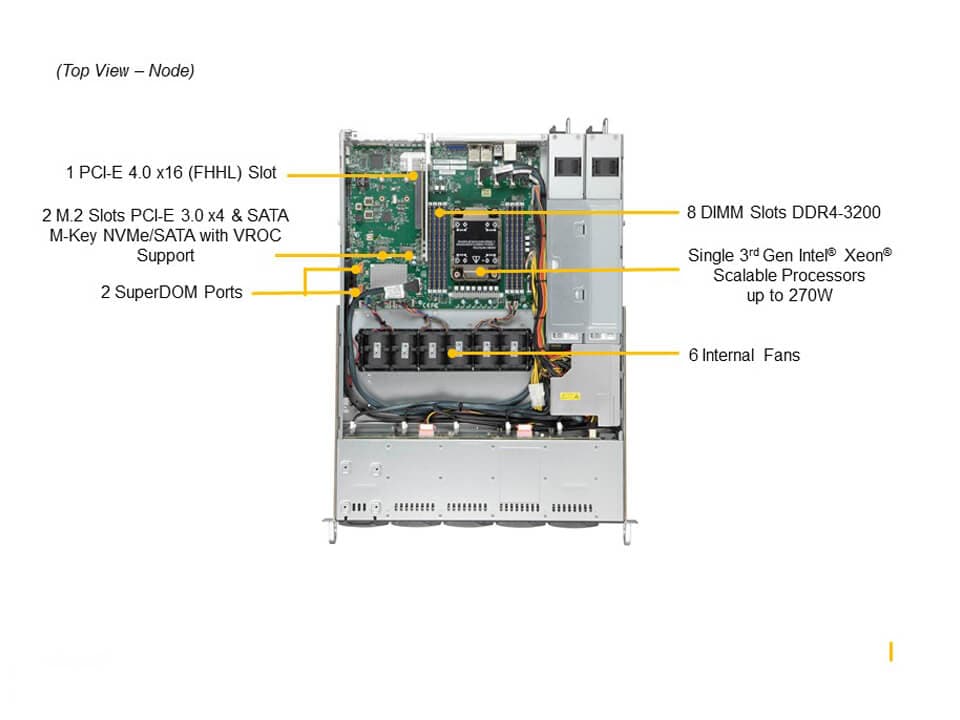

- Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
- 8 DIMMs
- Supports 3DS DDR4-3200 RDIMM/LRDIMM/Intel® Optane PMem
- 1 PCIe 4.0 x16 (FHHL) slot
- Intel® Ethernet Controller X550 2x 10GbE RJ45

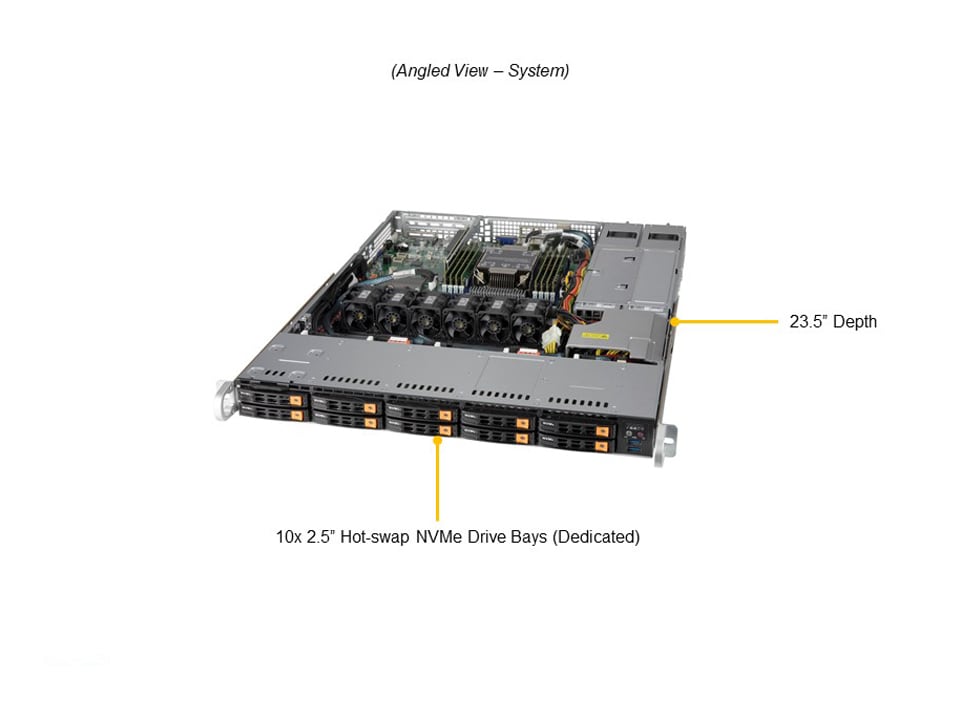

- 10x Hot-swap 2.5'' All NVMe Gen 4 tool-less drive bays
- Onboard 2x NVMe Gen 3/SATA M.2
- Redundant Platinum 860W Power Supply
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X12SPO-NTF |
Processor
| CPU | Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache |
System Memory
| Slot Count | 8 DIMM slots |
| Max Memory (1DPC) | Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
Drive Bays / Storage

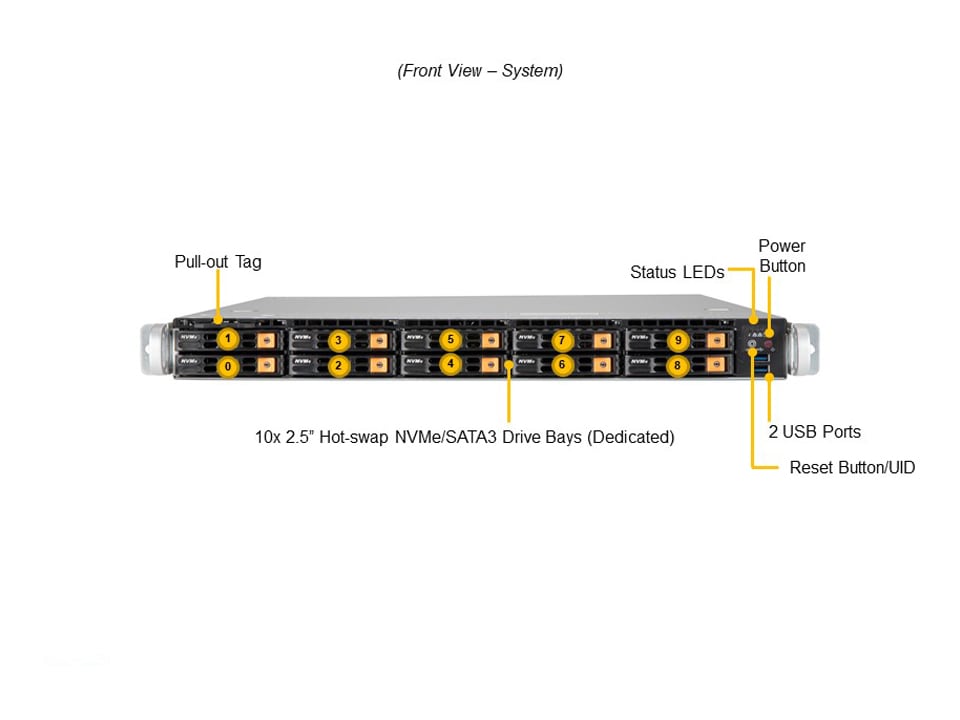

| Configuration Default | Total 10 bays 10 front hot-swap 2.5" PCIe 4.0 NVMe drive bays |
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280/22110; VROC required for RAID) |
Expansion Slots
| PCIe | Default 1 PCIe 4.0 x16 FHHL slot |
On-Board Devices
| NVMe | NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required) |
| Network Connectivity | 2 RJ45 10GbE with Intel® X550 |
Input / Output
| LAN | 2 RJ45 1 GbE LAN ports 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) |
| USB | 2 USB 3.2 Gen1 Type-A ports(rear) 2 USB 3.2 Gen1 Type-A ports(front) |
| Video | 1 VGA port |
| Serial | 1 COM port(Rear) |
System Cooling
| Fans | Up to 6 Counter-rotating PWM 40x40x56mm Fan(s) |
| Air Shroud | 1 Air Shroud |
Power Supply
| PSU | 2x 860W Redundant (1 + 1) Platinum Level (94%) power supplies |
System BIOS
| BIOS Type | AMI 32MB SPI Flash EEPROM |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
Form Factor
| Form factor | 1U Rackmount |
| Enclosure | 437 x 43 x 597mm (17.2" x 1.7" x 23.5") |
| Package | 610 x 203 x 813mm (24" x 8" x 32") |
Chassis
| Model | CSE-116TS-R860CBP-N10 |
Dimensions & Weight
| Weight | Gross Weight: 38 lbs (17.24 kg) |
| Net Weight | 25 lbs (11.34 kg) |
| Available Color | Black |
Operating Environment
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Non-operating Relative Humidity | 5% to 95% (non-condensing) |
