Supermicro · All-Flash NVMe

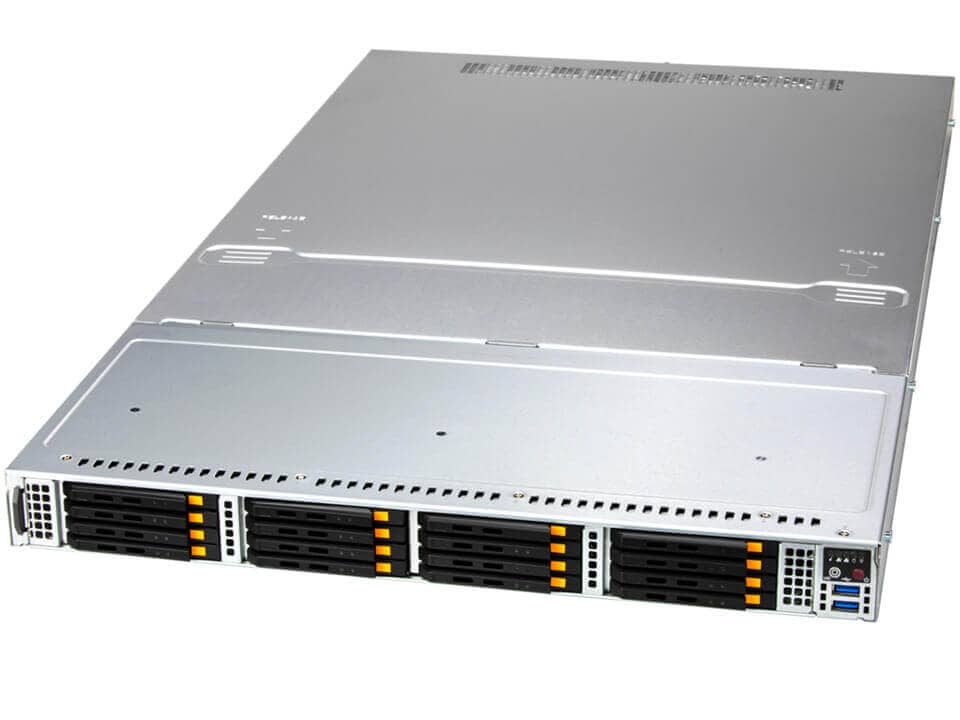

SSG-121E-NE316R
1U front-loading all-flash storage server with 16 E3.S NVMe drives and PCIe 5.0.
1U
Form factor
16 Bays
Hot-swap
Intel Xeon Scalable
Dual-socket
Up to 8TB
DDR5 ECC
PCIe 5.0
Gen5 slots
2×1600W
Titanium
- Dual Socket E (LGA-4677) 5th/4th Generation Intel® Xeon® Scalable processors. Up to 270W TDP.

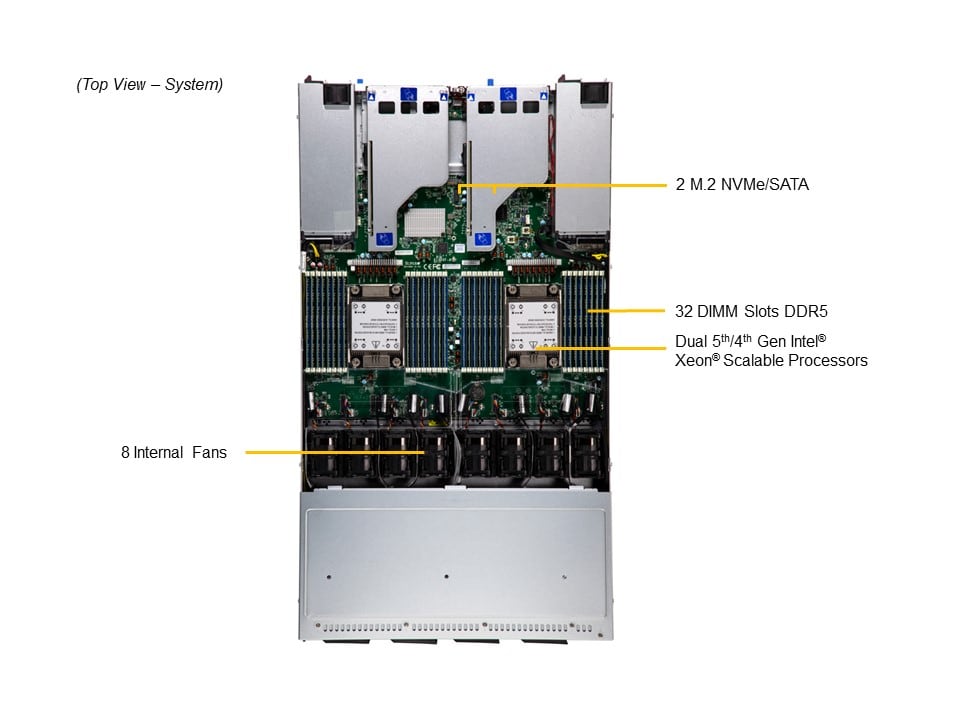

- Supports 32 DIMMs with 2DPC, up to 8TB memory capacity with 256GB 3DS RDIMM DDR5-5600 ECC memory

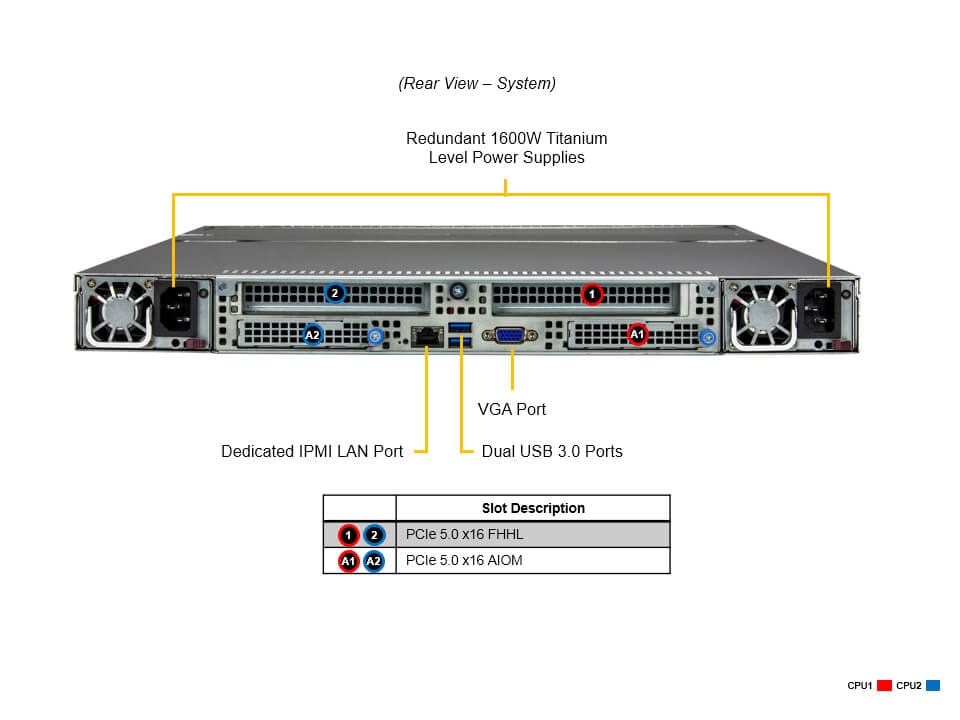

- Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)

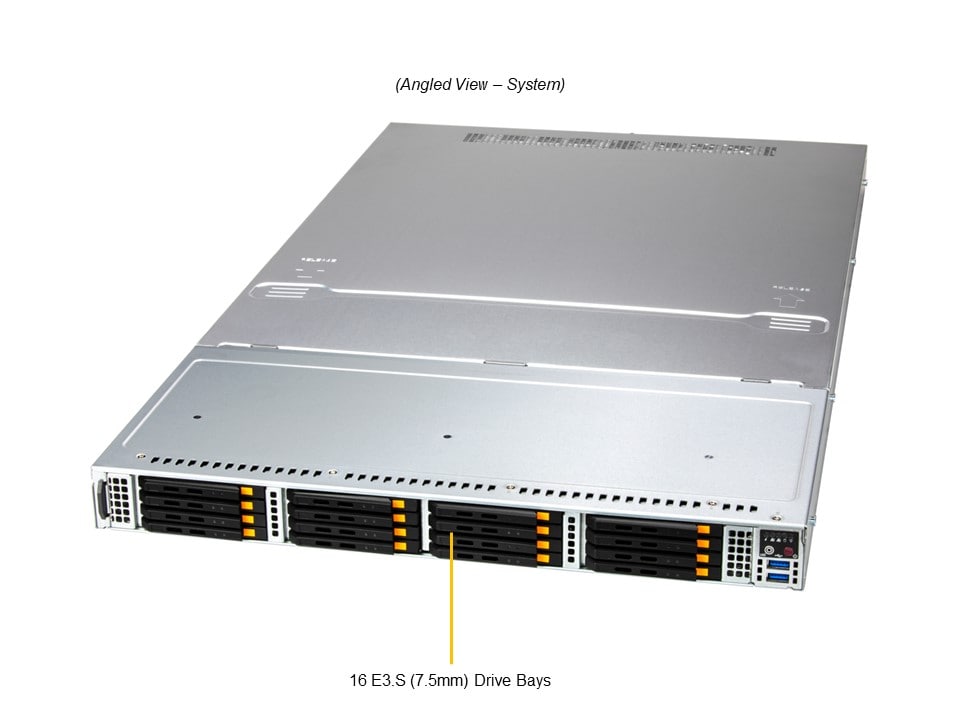

- 16x hot-swap E3.S (7.5mm) NVMe drive bays
- Redundant Titanium 1600W Power Supplies
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X13DSF-A |
Processor
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
System Memory
| Slot Count | 32 DIMM slots |
| Max Memory (2DPC) | Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM |
Drive Bays / Storage

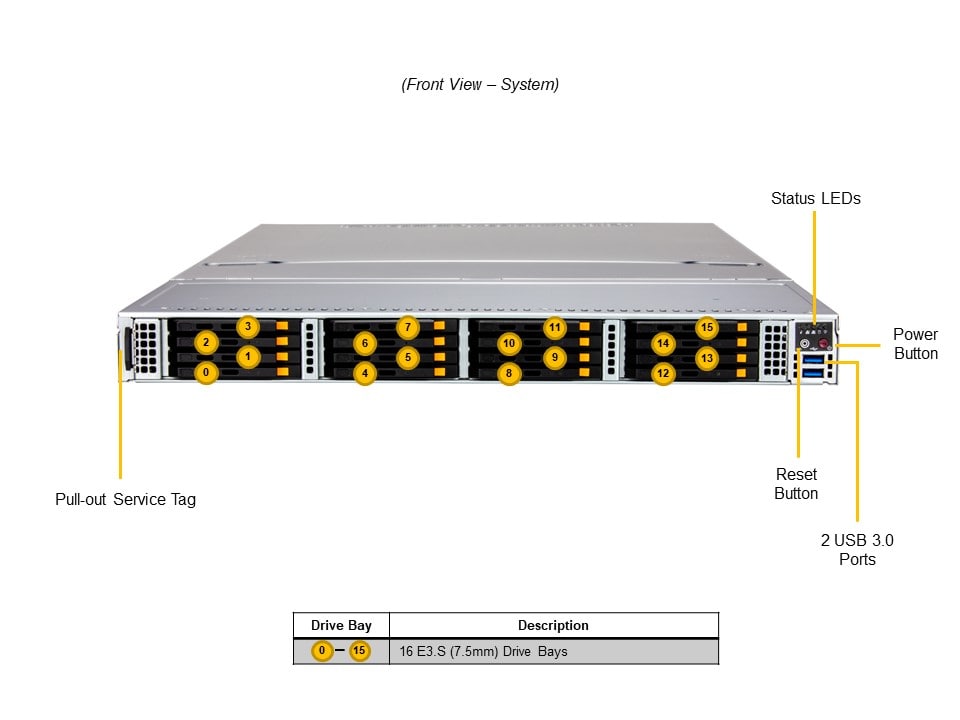

| Configuration Default | Total 16 bays 16 front hot-swap E3.S 1T NVMe drive bays |
| M.2 | 2 M.2 NVMe/SATA slots (M-key 2280/22110) |
Expansion Slots
| PCIe | Default 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
On-Board Devices
| Network Connectivity | Via AIOM |
Input / Output
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) 2 USB 3.0 ports(front) |
| Video | 1 VGA port |
System Cooling
| Fans | Up to 8 Heavy Duty 4cm Fan(s) |
| Air Shroud | 2 Air Shrouds |
Power Supply
| PSU | 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies |
System BIOS
| BIOS Type | AMI 32MB SPI Flash EEPROM |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
Form Factor
| Form factor | 1U Rackmount |
| Enclosure | 438.4 x 43.6 x 773.25mm (17.2" x 1.7" x 30.4") |
| Package | 604.774 x 199.898 x 1029.97mm (23.81" x 7.87" x 40.55") |
Chassis
| Model | CSE-126E32-R1K62P |
Dimensions & Weight
| Weight | Gross Weight: 68.74 lbs (31.2 kg) |
| Net Weight | 48 lbs (21.8 kg) |
| Available Color | Silver |
Operating Environment
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Non-operating Relative Humidity | 8% to 95% (non-condensing) |
