Supermicro · All-Flash NVMe

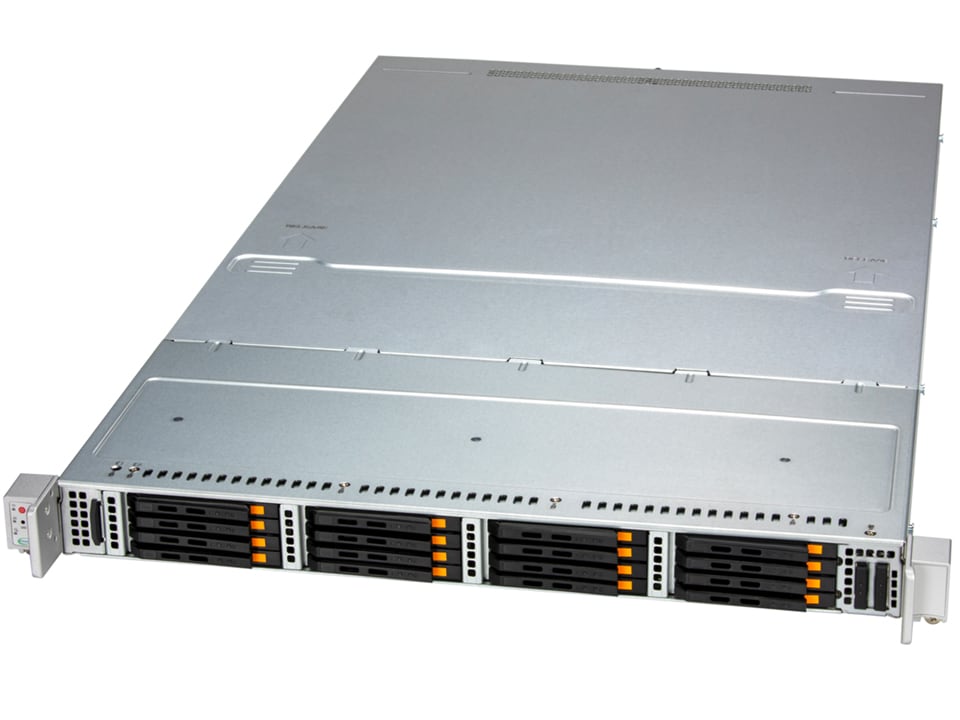

SSG-122B-NE316R
1U front-loading all-flash storage server with 16 E3.S NVMe drives and PCIe 5.0.
1U
Form factor
16 Bays
Hot-swap
Intel Xeon 6
Dual-socket
Up to 4TB
DDR5 ECC
PCIe 5.0
Gen5 slots
2×2000W
Titanium
- Dual Socket E2 (LGA-4710) Intel® Xeon® 6 6700 series processors with P-cores. CPU TDP up to 270W with air cooling
- Supports up to 4 TB of ECC DDR5 RDIMM/3DS/MRDIMM up to 6400 MT/s (1DPC) or 5200 MT/s (2DPC) in 32 DIMM slots
- Flexible networking with up to 2 OCP 3.0 compatible AIOM slots
- Up to 2 PCIe 5.0 x16 FHHL + 2 PCIe 5.0 x16 AIOM slots

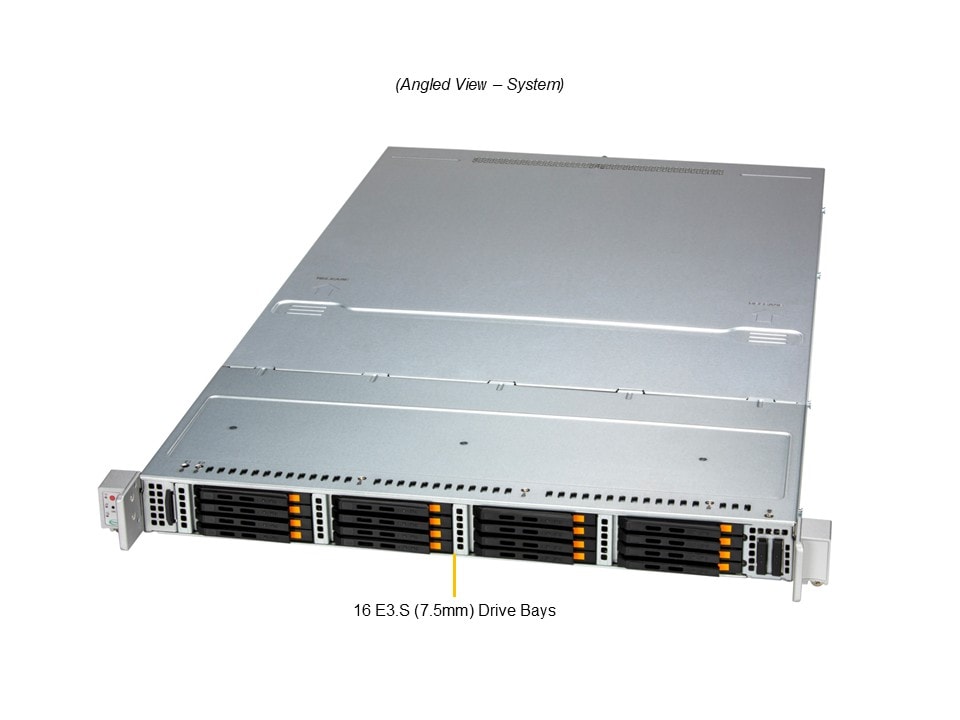

- Up to 16 front hot-swap E3.S 1T NVMe drive bays
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X14DBHM |
Processor
| CPU | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| P-cores | Up to 128C/256T; Up to 108MB Cache per CPU |
| E-cores | Up to 144C/144T; Up to 108MB Cache per CPU |
System Memory

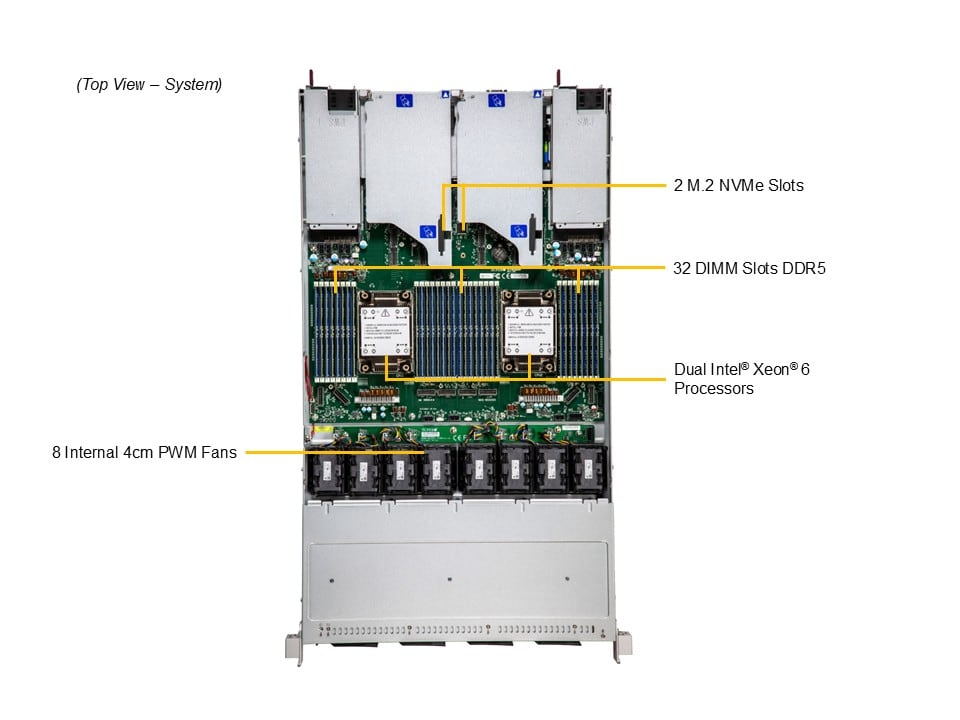

| Slot Count | 32 DIMM slots |
| Max Memory (1DPC) | Up to 4TB 8000MT/s ECC DDR5 MRDIMM |
| Max Memory (2DPC) | Up to 4TB 5200MT/s ECC DDR5 RDIMM/LRDIMM |
Drive Bays / Storage

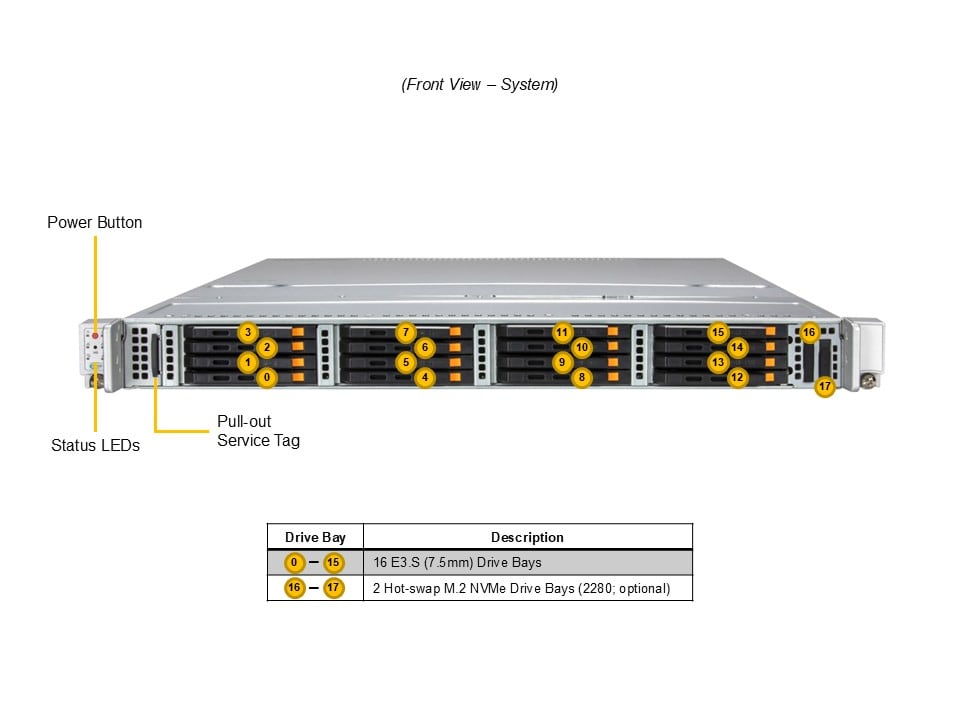

| Configuration Default | Total 16 bays 16 front hot-swap E3.S 1T NVMe drive bays |
| M.2 | 2 M.2 NVMe slots (M-key 2280/22110) |
Expansion Slots

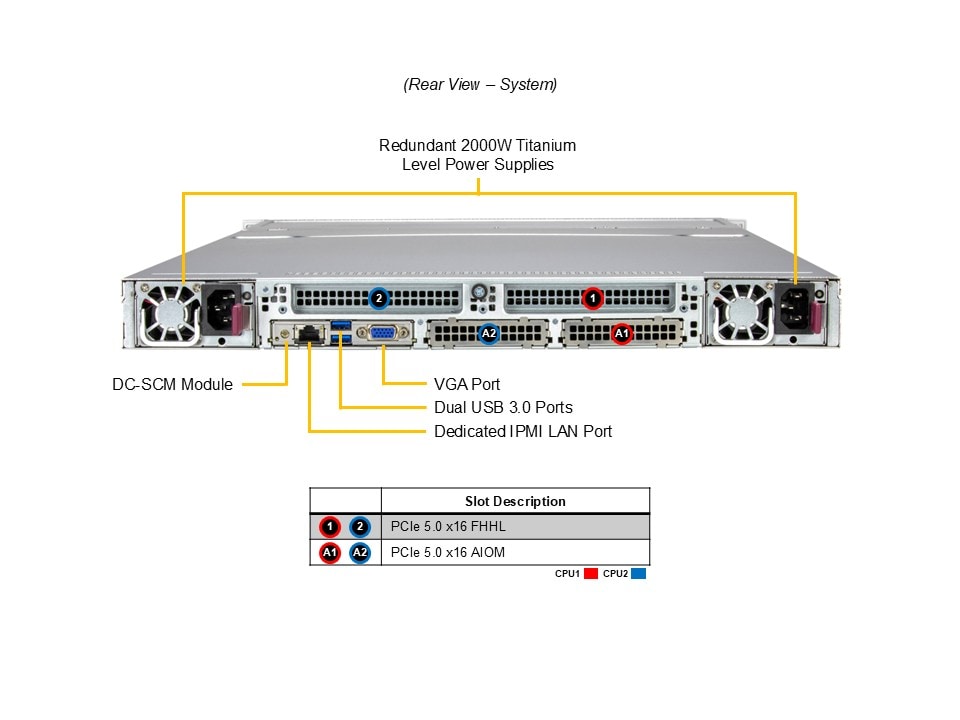

| PCIe | Default 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
On-Board Devices
| NVMe | NVMe; RAID 0/1/5/10 support (VROC HW key required) |
| Network Connectivity | Via AIOM |
Input / Output
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) |
| Video | 1 VGA port |
System Cooling
| Fans | Up to 8x 4cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
Power Supply
| PSU | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
System BIOS
| BIOS Type | AMI 64MB SPI Flash |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
Form Factor
| Form factor | 1U Rackmount |
| Enclosure | 438.4 x 43.6 x 784.85mm (17.2" x 1.7" x 30.9") |
| Package | 680 x 242 x 1108mm (26.77" x 9.52" x 43.62") |
Chassis
| Model | CSE-146E32-R2K09P |
Dimensions & Weight
| Weight | Gross Weight: 66.8 lbs (30.3 kg) |
| Net Weight | 43.6 lbs (19.8 kg) |
| Available Color | Silver |
Operating Environment
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Non-operating Relative Humidity | 8% to 95% (non-condensing) |
