Supermicro · JBOF

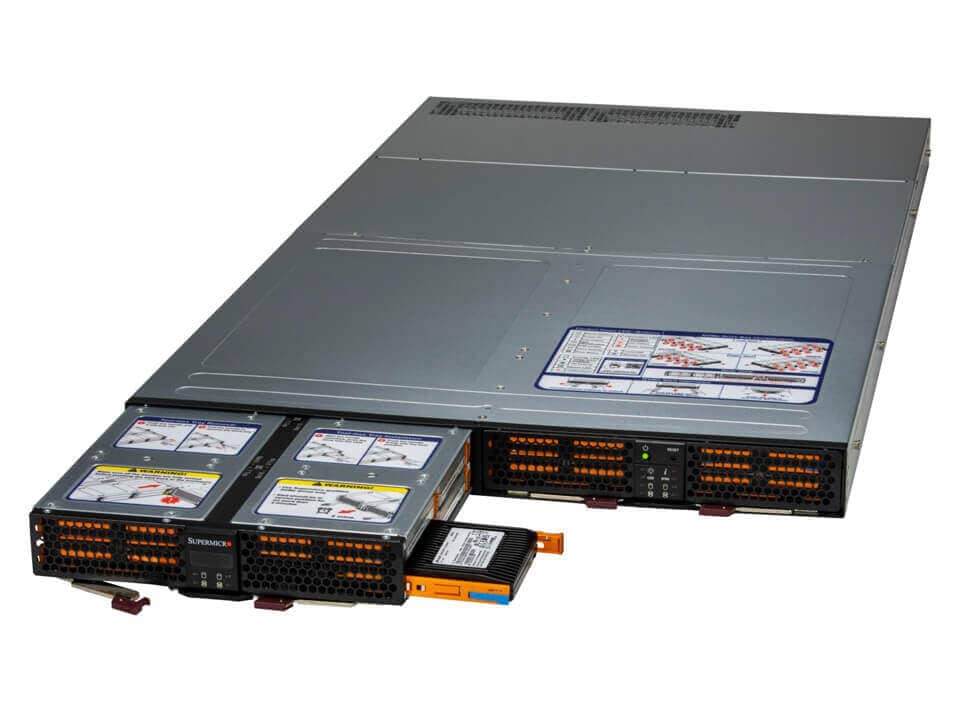

SSG-136R-4MU32JBF
1U all-flash JBOF storage box with 32 hot-swap U.2/U.3 NVMe bays and PCIe 4.0.
1U
Form factor
32 Bays
Hot-swap
PCIe 4.0
Gen4 slots
2×1000W
Titanium
- IPMI management with dedicated LAN

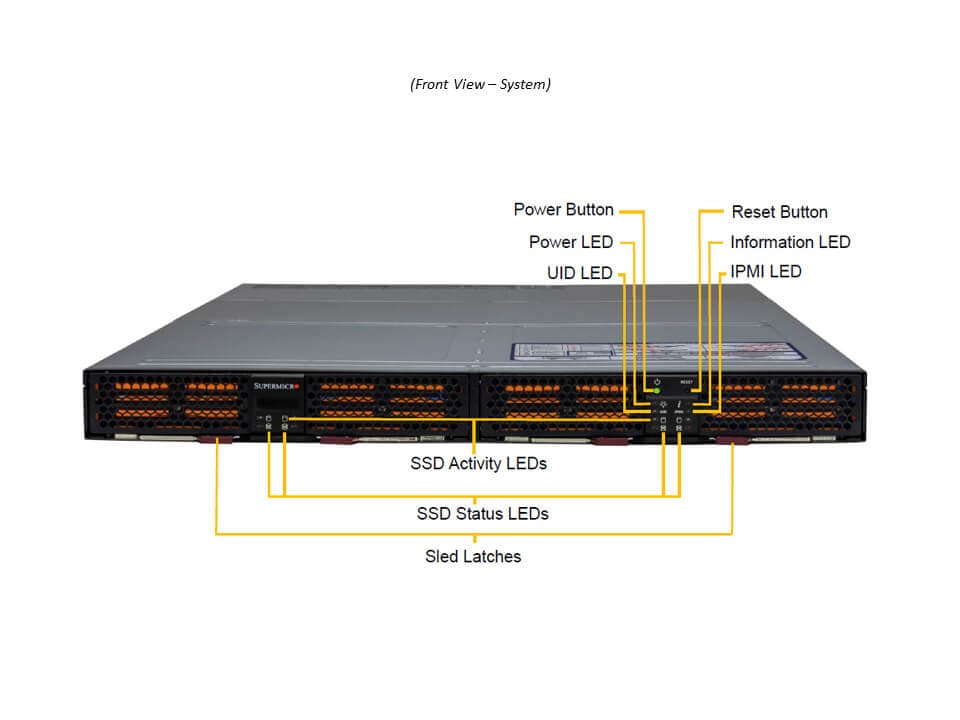

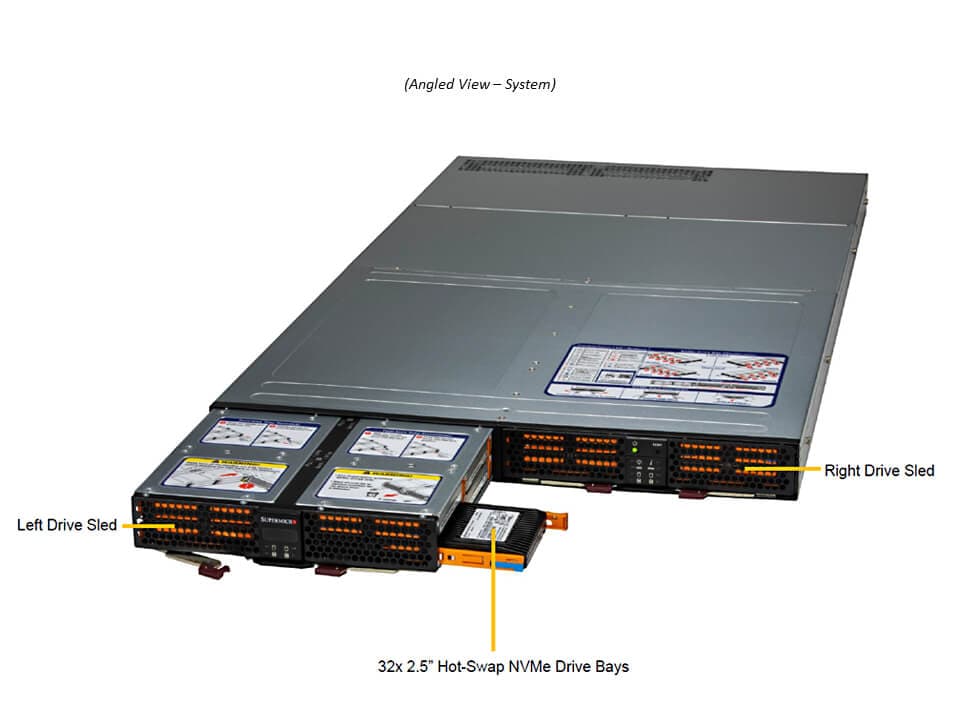

- 32x hot-swap U.2/U.3 NVMe drive bays
- 1000W Redundant Power Supplies

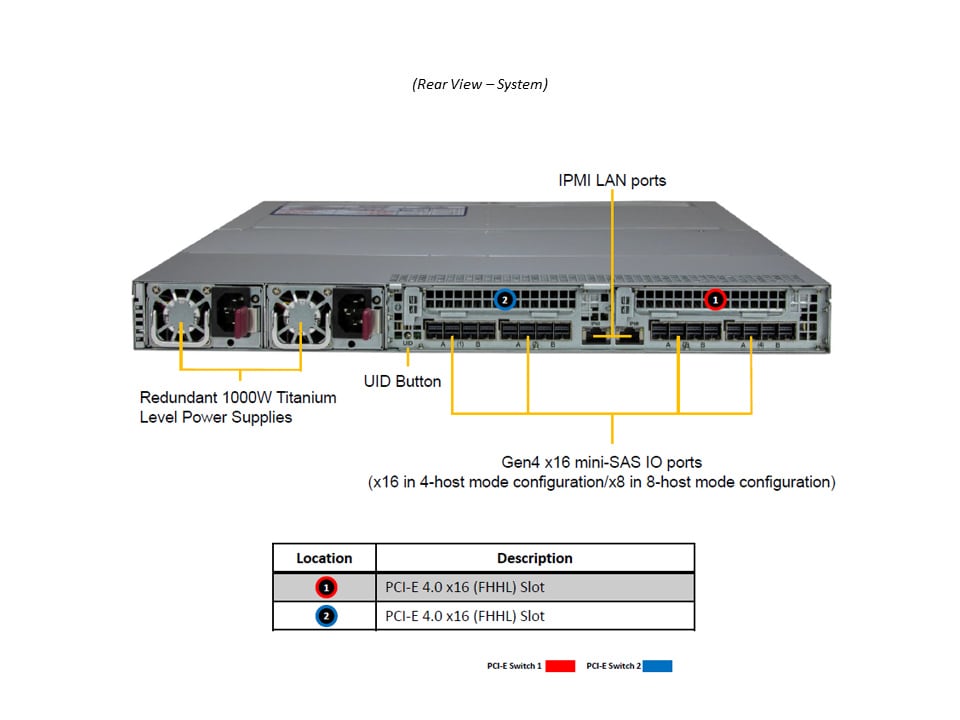

- 4 PCIe Gen4 rear IO ports, 2 PCIe Gen4 x16 slots
- Qualified retimer HBA: AOC-SLG4-4X4T-O (JBOF, PCIe Gen4 x16 NVMe retimer)
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super BPN-NVME4-136PL-J |
Drive Bays / Storage
| Configuration Default | Total 32 bays 32 front hot-swap 2.5" U.2/U.3 NVMe drive bays |
Expansion Slots
| PCIe | Default 2 PCIe 4.0 x16 FHHL slots |
On-Board Devices
| Network Connectivity | 2 RJ45 1GbE with Realtek |
Input / Output
| LAN | 2 RJ45 1 GbE Dedicated BMC LAN ports |
System Cooling

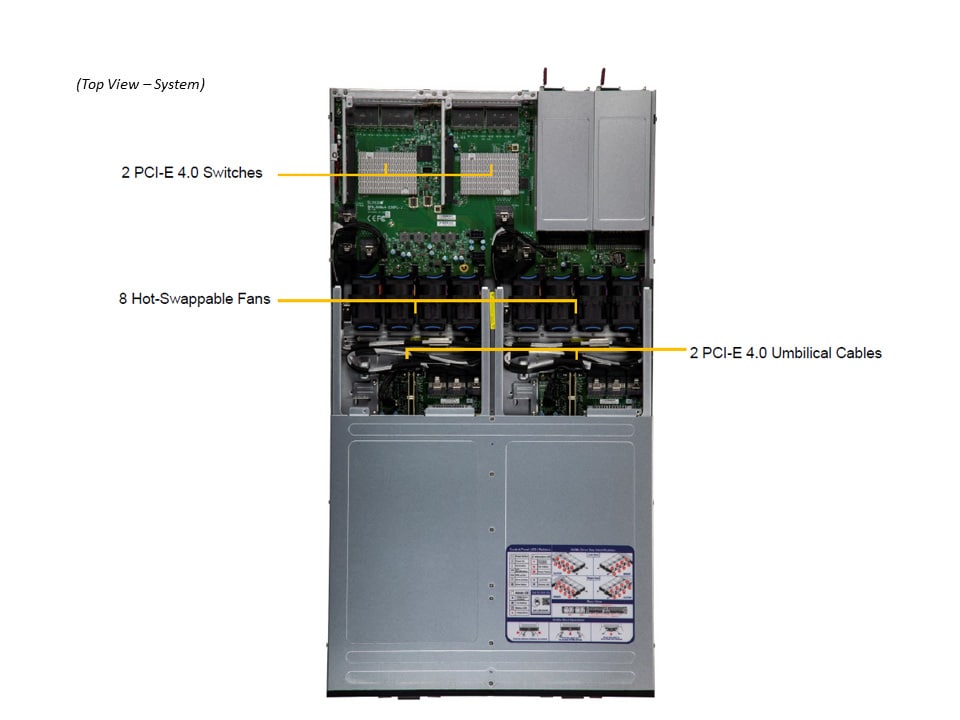

| Fans | Up to 8 Heavy Duty 4cm Fan(s) |
Power Supply
| PSU | 2x 1000W Redundant Titanium Level (96%) power supplies |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
Form Factor
| Form factor | 1U Rackmount |
| Enclosure | 438.4 x 43.6 x 811.7mm (17.26" x 1.71" x 31.95") |
| Package | 609.6 x 212.725 x 1231.9mm (24" x 8.375" x 48.5") |
Chassis
| Model | CSE-136TS-R000JNP-U2 |
Dimensions & Weight
| Weight | Gross Weight: 65 lbs (29.5 kg) |
| Net Weight | 49 lbs (22.2 kg) |
| Available Color | Silver |
Operating Environment
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Non-operating Relative Humidity | 5% to 95% (non-condensing) |
