Supermicro · All-Flash NVMe

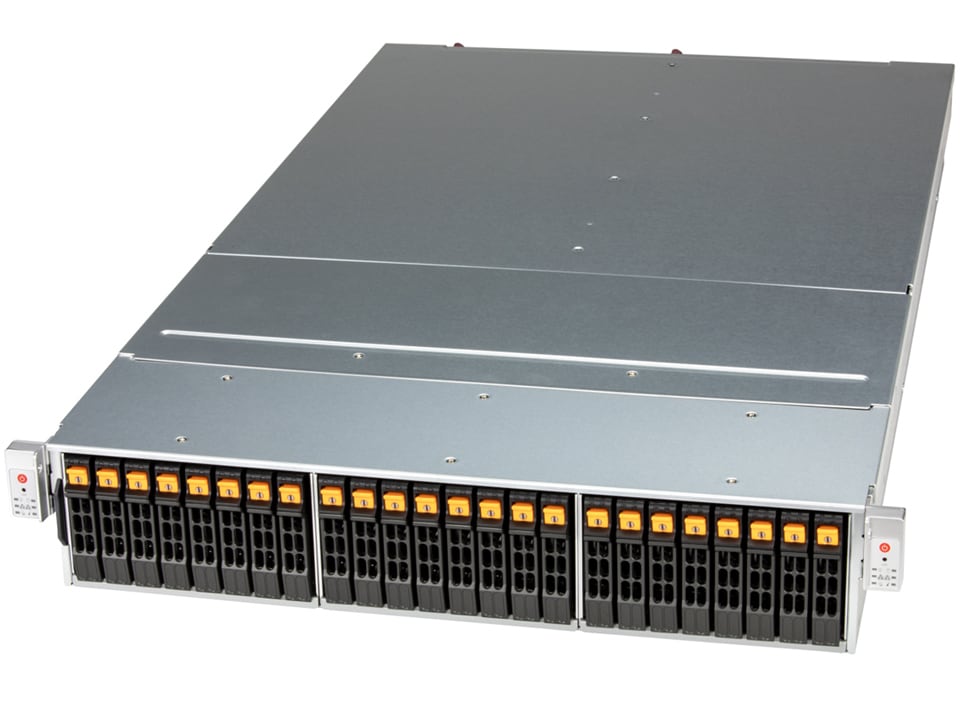

SSG-221E-DN2R24R
2U all-flash SBB (2-node) with 24 U.2 NVMe drives and PCIe 5.0.
2U
Form factor
24 Bays
Hot-swap
Intel Xeon Scalable
Single-socket
Up to 2TB
DDR5 ECC
PCIe 5.0
Gen5 slots
2×2000W
Titanium
- Two hot-pluggable systems (nodes) in a 2U form factor
- Single Socket E (LGA-4677) 5th/4th Generation Intel® Xeon® Scalable processor per node. Up to 350W TDP.
- 2 PCIe 5.0 x16 HHHL slots and 2 PCIe 5.0 x8 HHHL slots per node
- Supports 8 DIMMs per node with 1DPC, up to 2TB memory per node with 256GB 3DS RDIMM DDR5-5600 ECC
- Dedicated 1GbE Private Ethernet connection for node-to-node communication (Heartbeat)

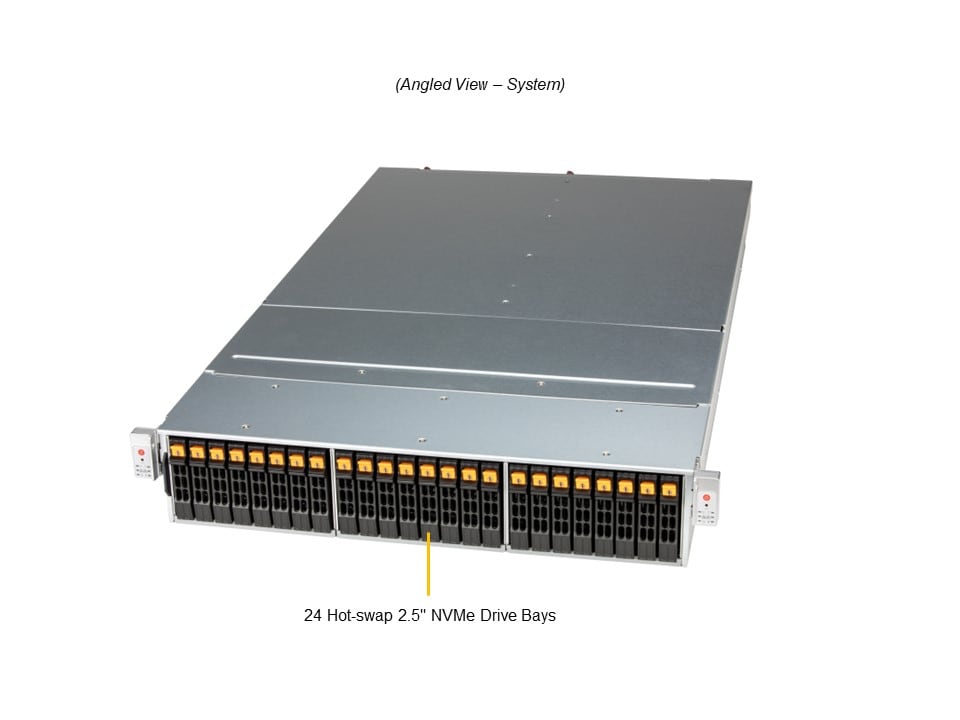

- 24 Hot-swap Dual Port Gen 5 U.2 NVMe SSD bays
- Redundant Titanium 2000W Power Supplies
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X13SEB-TF |
Processor
| CPU | Single Socket E (LGA-4677) per node 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
System Memory

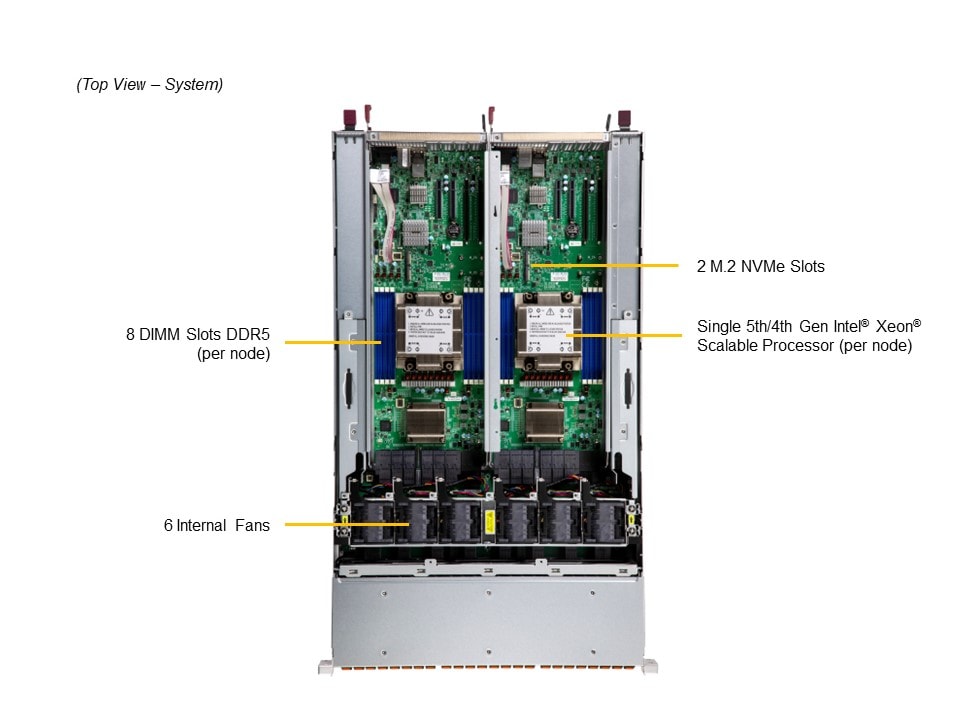

| Slot Count | 8 DIMM slots per node |
| Max Memory (1DPC) | Up to 2TB 5600MT/s ECC DDR5 RDIMM/LRDIMM per node |
Drive Bays / Storage

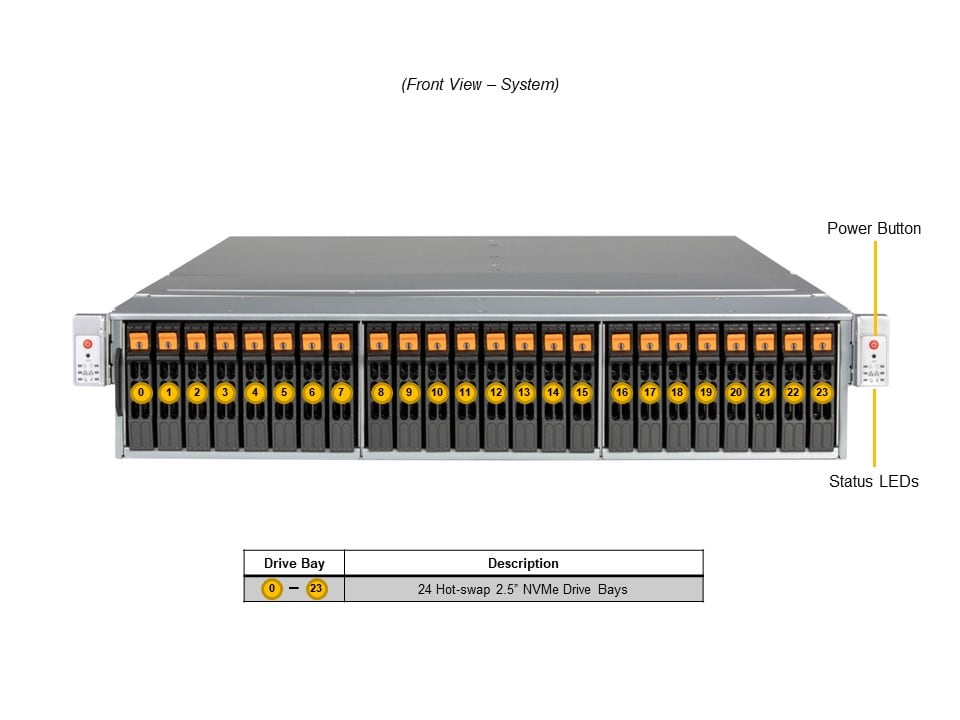

| Configuration Default | Total 24 bays 24 front hot-swap 2.5" PCIe 5.0 NVMe drive bays (dual-port) |
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slots (M-key) per node |
Expansion Slots
| PCIe | Default (per node) 2 PCIe 5.0 x16 HHHL slots 2 PCIe 5.0 x8 HHHL slots |
On-Board Devices
| Network Connectivity | 2 RJ45 10GbE with Intel® X710 per node |

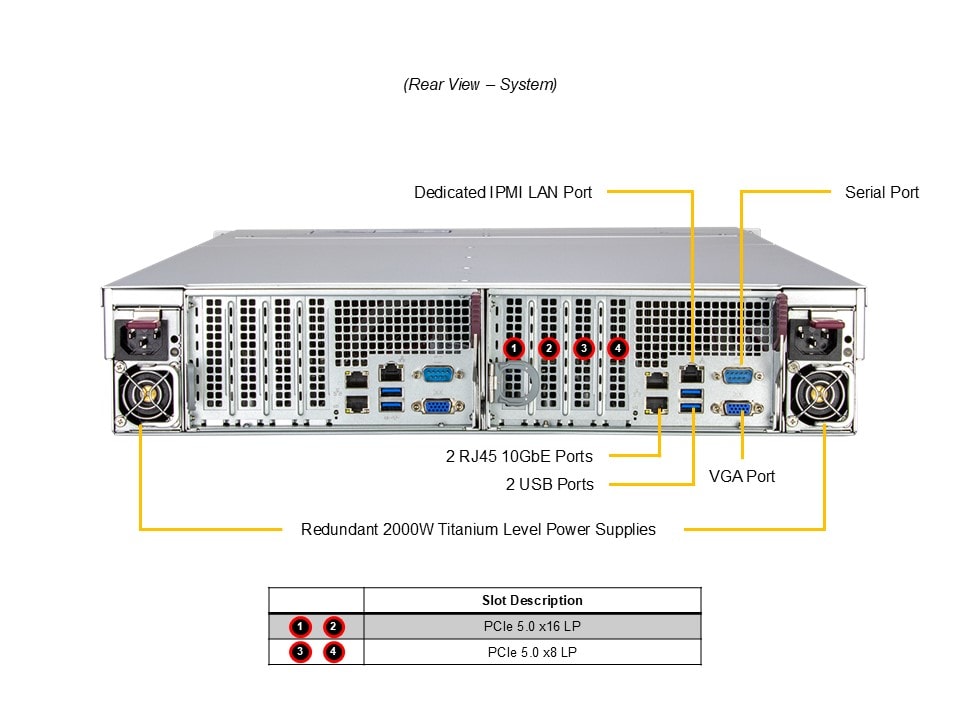

Input / Output
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port per node 2 RJ45 10 GbE LAN ports per node |
| USB | 2 USB 3.0 ports(rear) |
| Video | 1 VGA port |
| Serial | 1 COM port(Rear) |
System Cooling
| Fans | Up to 6 Heavy Duty 6cm Fan(s) |
| Air Shroud | 2 Air Shrouds |
Power Supply
| PSU | 2x 2000W Redundant Titanium Level (96%) power supplies |
System BIOS
| BIOS Type | AMI 32MB SPI Flash EEPROM |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
Form Factor
| Form factor | 2U Rackmount |
| Enclosure | 449.4 x 88 x 762mm (17.7" x 3.47" x 30") |
| Package | 670 x 245 x 1100mm (26.37" x 9.64" x 43.3") |
Chassis
| Model | CSE-229TS-R000NP |
Dimensions & Weight
| Weight | Gross Weight: 89.63 lbs (40.66 kg) |
| Net Weight | 66.82 lbs (30.31 kg) |
| Available Color | Silver |
Operating Environment
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Non-operating Relative Humidity | 5% to 95% (non-condensing) |
