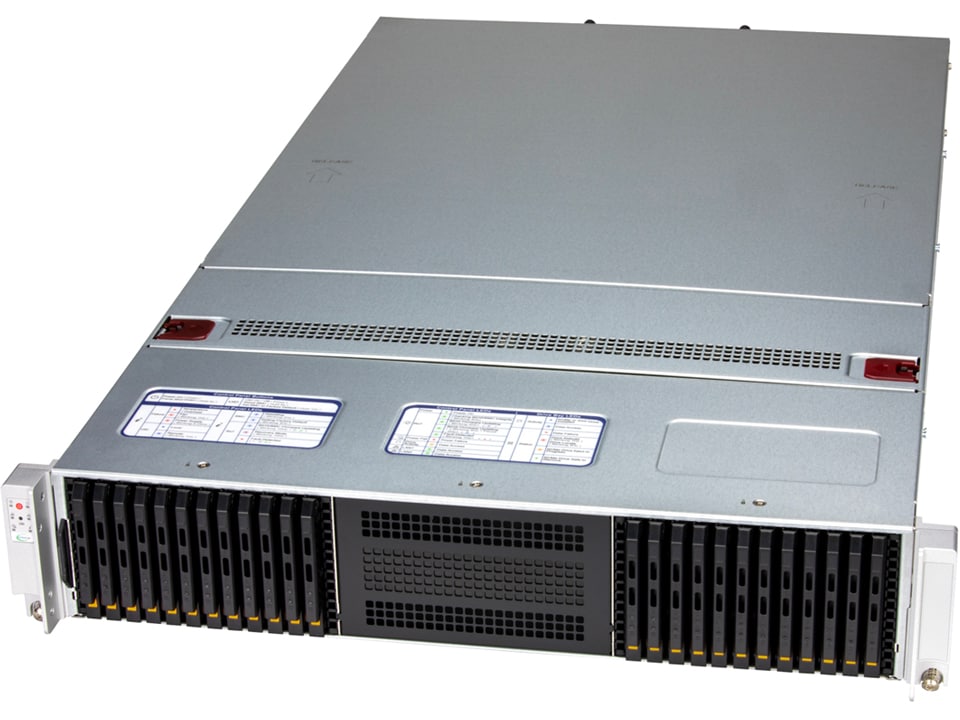

SSG-222B-NE3X24R
2U front-loading all-flash storage server with 24 E3.S NVMe drives and PCIe 5.0.
2U
Form factor
24 Bays
Hot-swap
Intel Xeon 6
Dual-socket
Up to 8TB
DDR5 ECC
PCIe 5.0
Gen5 slots
2×2000W
Titanium
- Dual Socket E2 (LGA-4710) Intel® Xeon® 6 6700 series processors. CPU TDP up to 350W with air cooling
- Up to 32 DIMMs supporting up to 8TB DDR5-6400 in 2DPC
- Flexible networking with up to 2 OCP 3.0 compatible AIOM slots
- Up to 2 PCIe 5.0 x16 FHHL + 1 PCIe 5.0 x8 FHHL + 2 PCIe 5.0 x16 AIOM slots
- Up to 32 front hot-swap E3.S 1T NVMe drive bays, up to 8 CXL 2.0 x8 Type 3 devices
- Up to 2 double-width GPUs (Max TDP 300W)
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X14DBHM |
Processor
| CPU | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| P-cores | Up to 86C/172T; Up to 336MB Cache per CPU |
| E-cores | Up to 144C/144T; Up to 108MB Cache per CPU |
System Memory

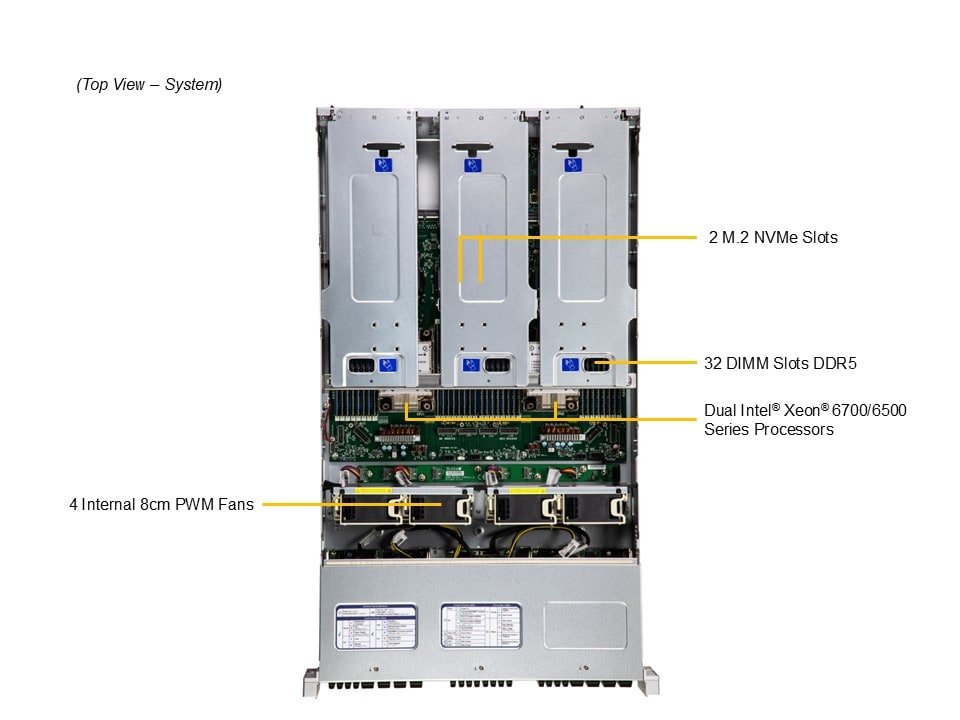

| Slot Count | 32 DIMM slots |
| Max Memory (1DPC) | Up to 4TB 6400MT/s ECC DDR5 RDIMM/LRDIMM |
| Max Memory (2DPC) | Up to 8TB 5200MT/s ECC DDR5 RDIMM/LRDIMM |
Drive Bays / Storage

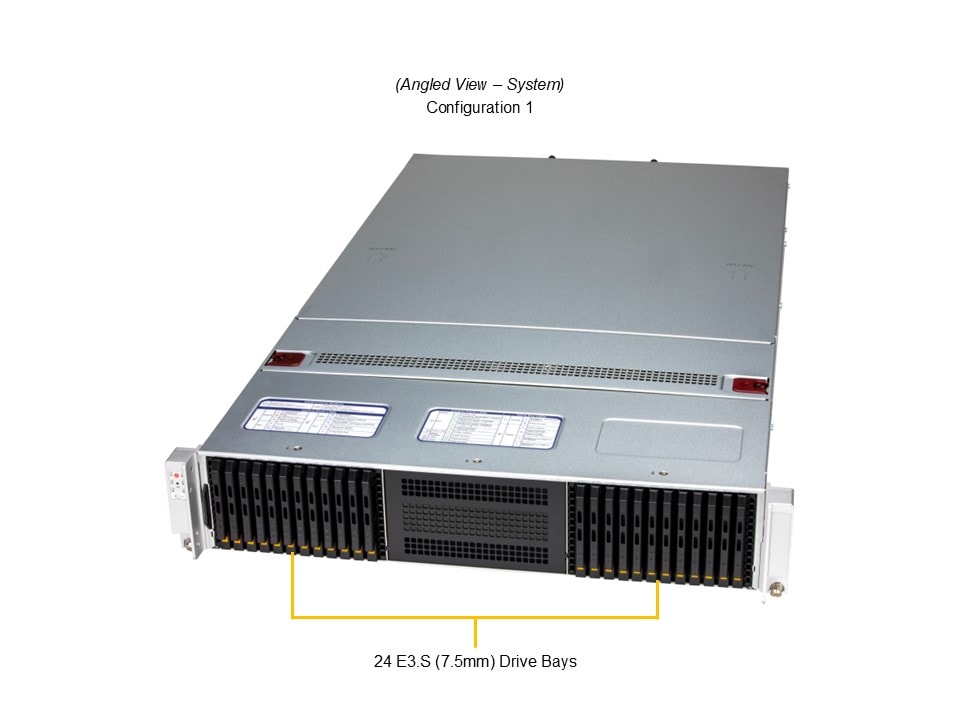

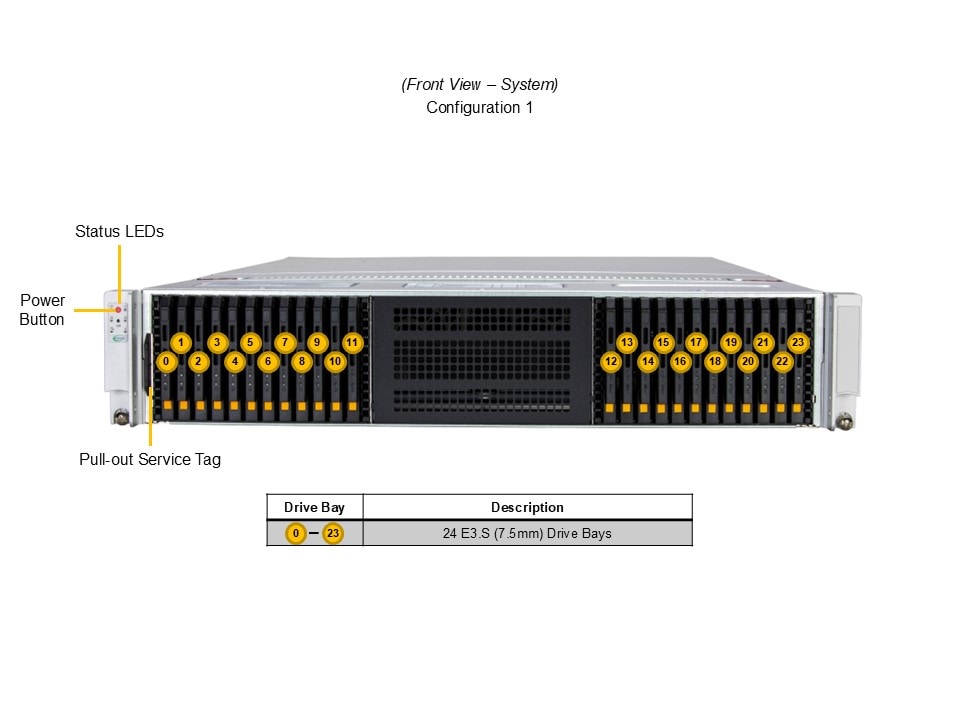

| Configuration Default | Total 24 bays 24 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays |
| Option B | Total 32 bays 32 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays |
| M.2 | 2 M.2 NVMe slots (M-key 2280/22110) |
Expansion Slots
| PCIe | Default 2 PCIe 5.0 x16 FHFL double-width slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) 1 PCIe 5.0 x8 FHFL slot |
| CXL Support | Up to 8 CXL 2.0 x8 Type 3 devices |
On-Board Devices
| Network Connectivity | Via AIOM |
Input / Output

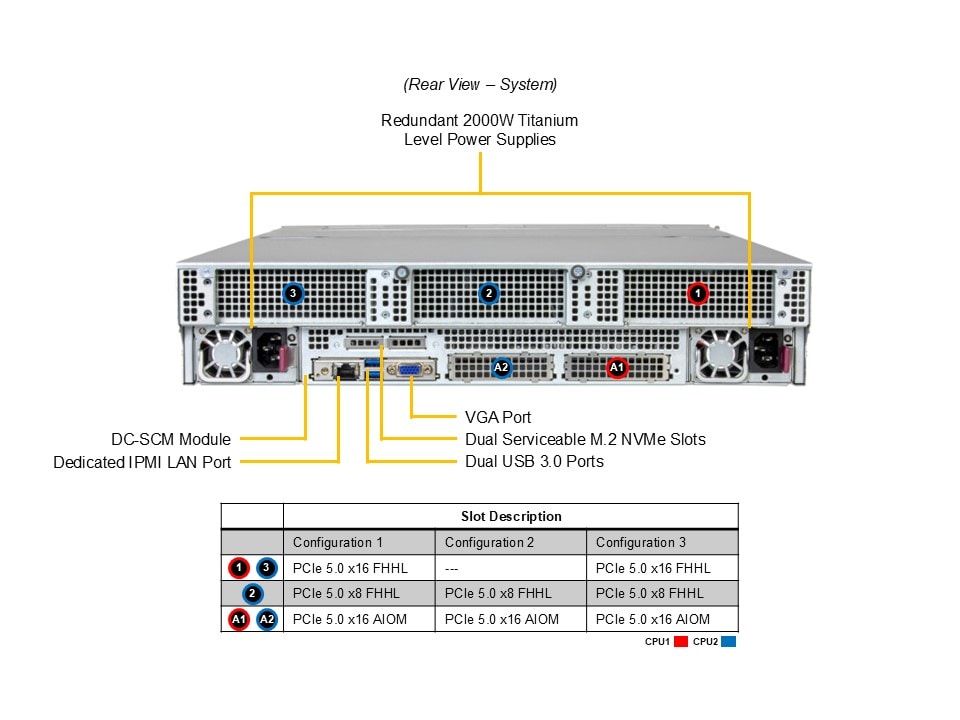

| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 1 USB 3.0 port(Rear) (via DC-SCM) |
| Video | 1 VGA port |
System Cooling
| Fans | Up to 4x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
Power Supply
| PSU | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
System BIOS
| BIOS Type | AMI 64MB SPI Flash |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
Form Factor
| Form factor | 2U Rackmount |
| Enclosure | 438 x 88 x 780mm (17.25" x 3.47" x 30.7") |
| Package | 597 x 239 x 1097mm (23.5" x 9.4" x 43.2") |
Chassis
| Model | CSE-246E3-R2K09P |
Dimensions & Weight
| Weight | Gross Weight: 83.78 lbs (38 kg) |
| Net Weight | 61.73 lbs (28 kg) |
| Available Color | Silver |
Operating Environment
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Non-operating Relative Humidity | 5% to 95% (non-condensing) |
