Supermicro · JBOF

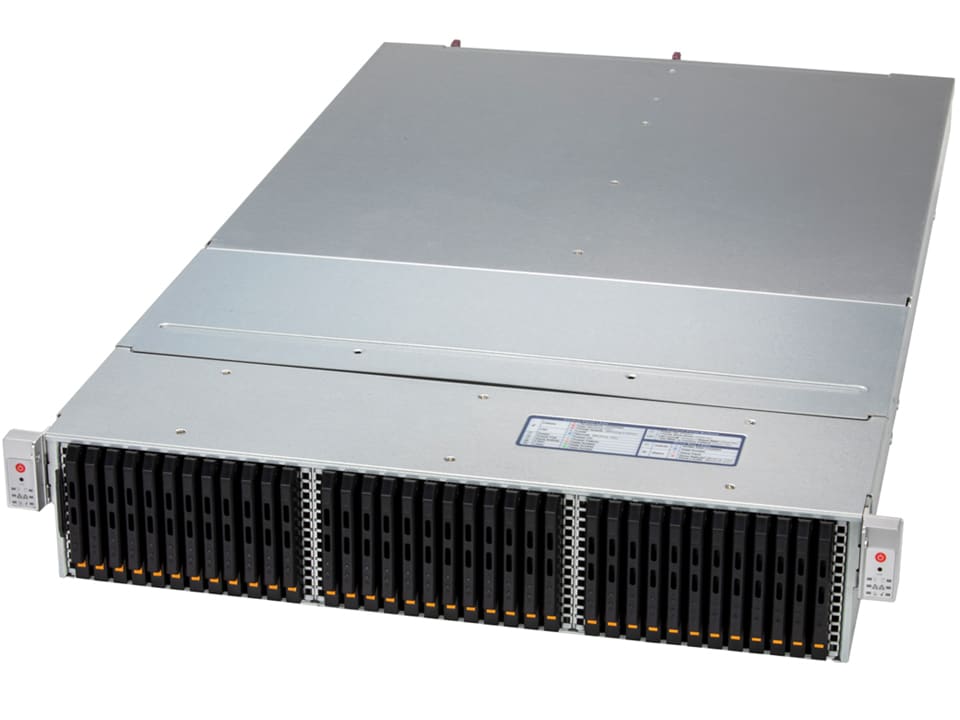

SSG-229J-5BE36JBF
2U all-flash modular BlueField-3 SDS storage enclosure with 36 hot-swap E3.S NVMe bays and PCIe 5.0 (GPU/DPU support for LLM).
2U
Form factor
36 Bays
Hot-swap
PCIe 5.0
Gen5 slots
2×2000W
Titanium
- Two hot-pluggable systems (nodes) in a 2U form factor
- IPMI management with dedicated LAN, BF3 management with shared LAN

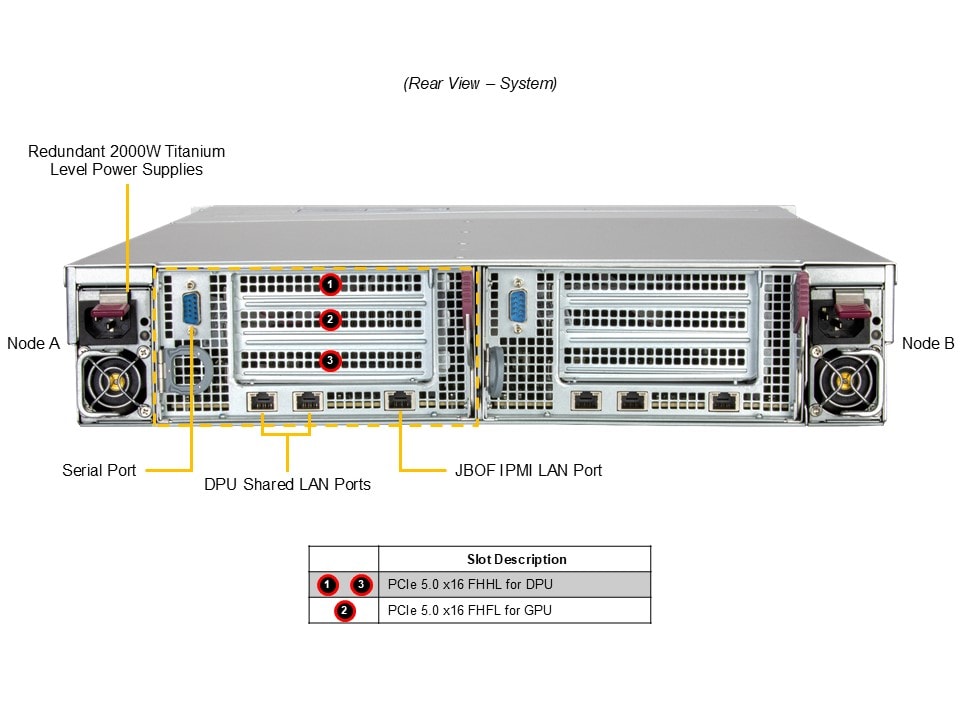

- Up to 3 PCIe 5.0 x16 FHFL slots per node
- Up to 2 DPU and 1 GPU per node

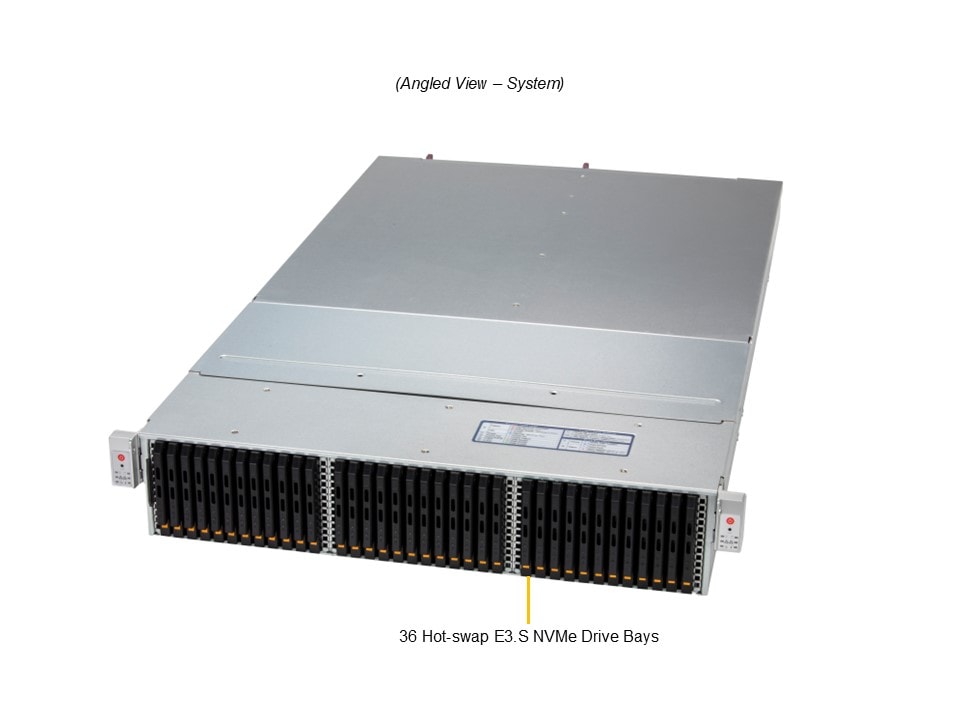

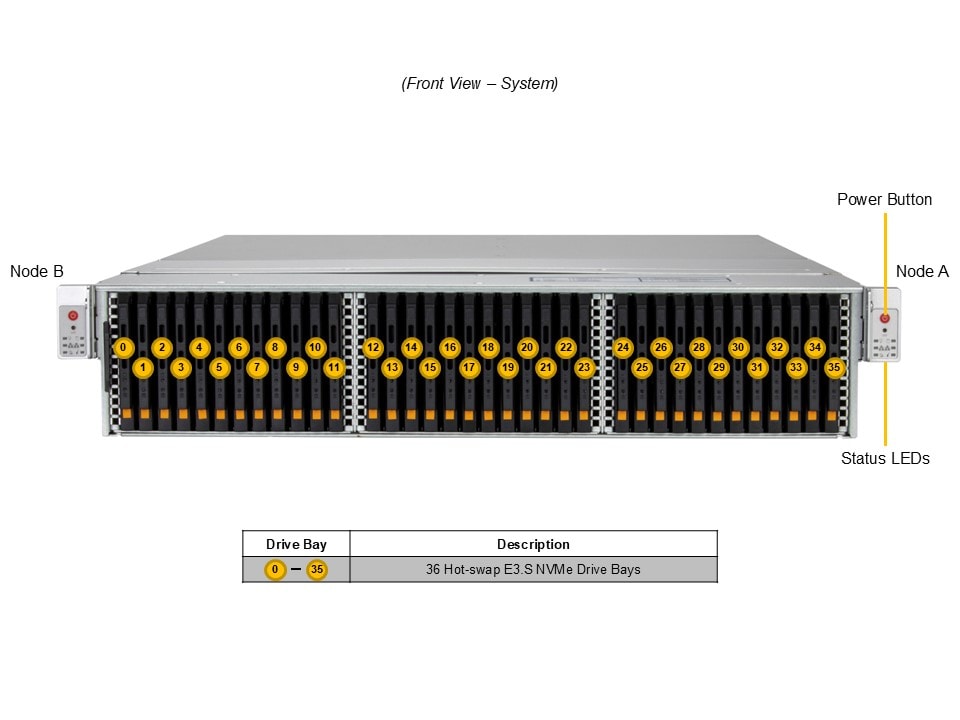

- Up to 36 front hot-swap E3.S 1T NVMe drive bays
- 2 Redundant 2000W Titanium Level power supplies
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super BPN-NVME5-229PL-J |
Drive Bays / Storage
| Configuration Default | Total 36 bays 36 front hot-swap E3.S 1T NVMe drive bays |

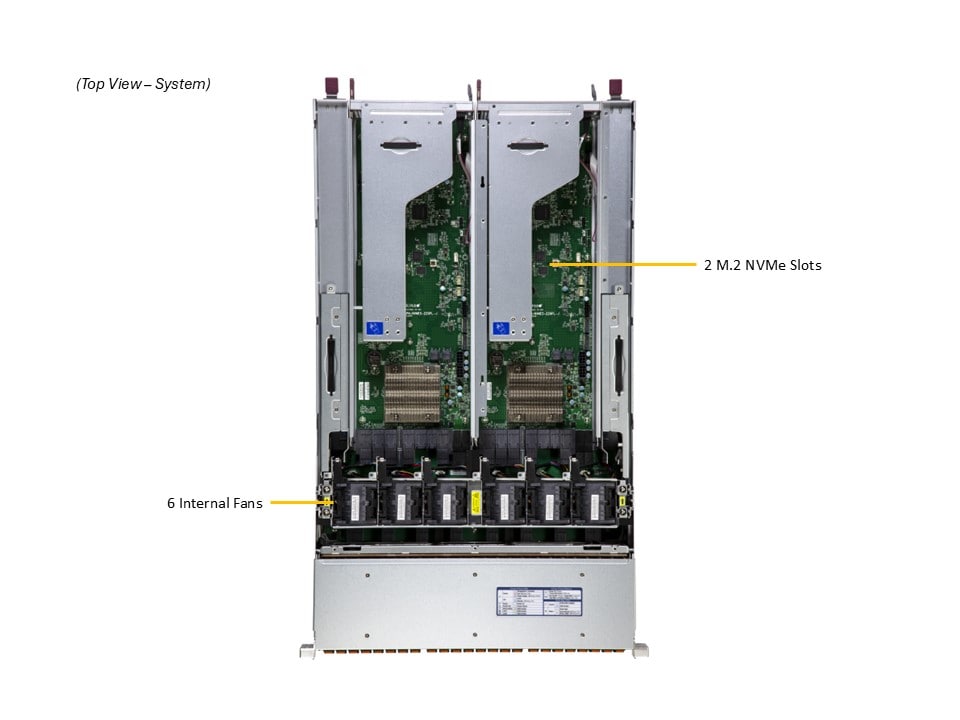

| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110) |
Expansion Slots
| PCIe | Default 3 PCIe 5.0 x16 FHFL slots per node |
On-Board Devices
| Network Connectivity | 2 QSFP+ 200GbE with NVIDIA® BlueField®-3; 1 RJ45 1GbE with Realtek |
System Cooling
| Fans | Up to 6 Heavy Duty 60mm Fan(s) |
Power Supply
| PSU | 2x 2000W Redundant Titanium Level (96%) power supplies |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
Form Factor
| Form factor | 2U Rackmount |
| Enclosure | 449.4 x 88 x 762mm (17.7" x 3.47" x 30") |
| Package | 670 x 245 x 1100mm (26.37" x 9.64" x 43.3") |
Chassis
| Model | CSE-229ES-R000RCNDP |
Dimensions & Weight
| Weight | Gross Weight: 94.8 lbs (43 kg) |
| Net Weight | 71.88 lbs (32.6 kg) |
| Available Color | Silver |
Operating Environment
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Non-operating Relative Humidity | 5% to 95% (non-condensing) |
