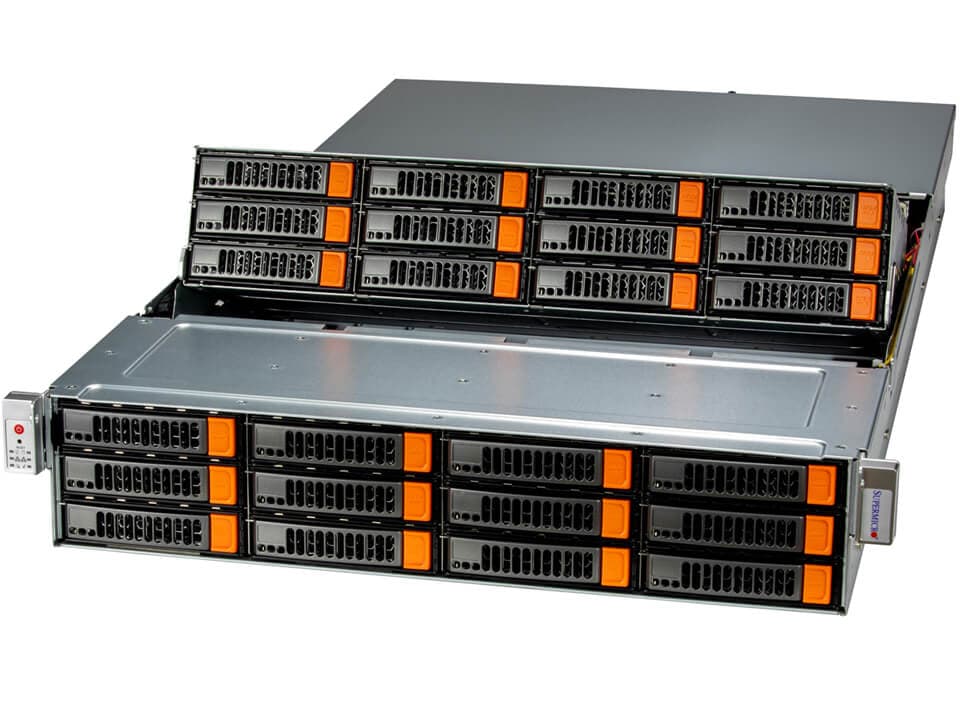

SSG-521E-E1CR24L
2U front/top-loading storage server with 24 hot-swap 3.5" SAS/SATA bays and PCIe 5.0.
2U
Form factor
24 Bays
Hot-swap
Intel Xeon Scalable
Single-socket
Up to 4TB
DDR5 ECC
PCIe 5.0
Gen5 slots
2×1600W
Titanium

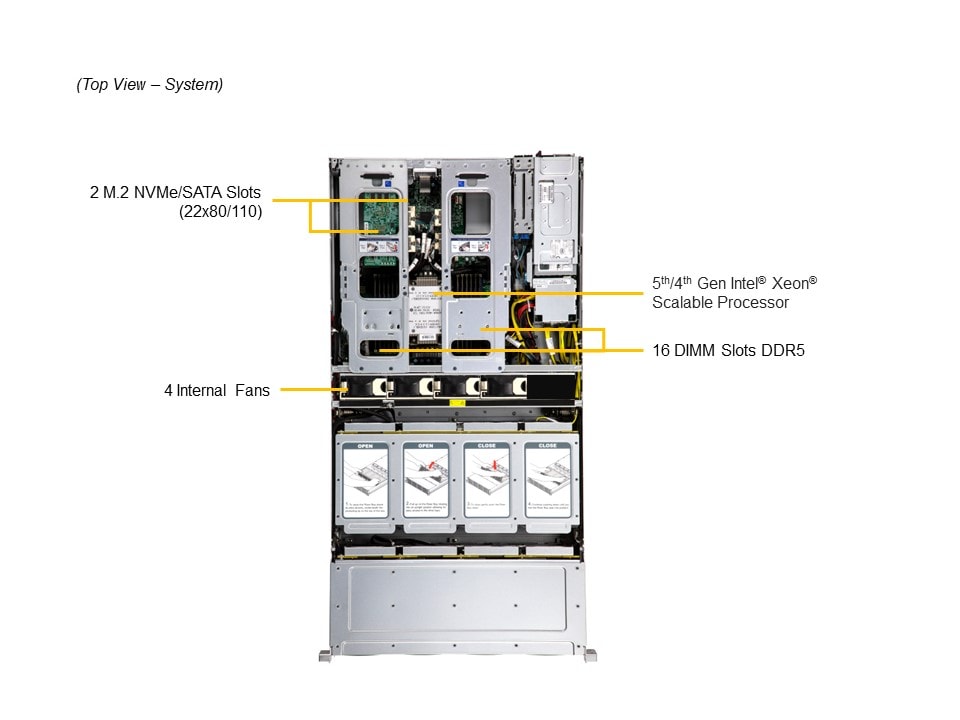

- Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processor. Up to 300W TDP.
- 16 ECC DDR5-5600 LRDIMM/RDIMM
- Two Dedicated PCIe 5.0 x16 AIOM slots (OCP 3.0 SFF compliant)
- Up to 6x PCIe 5.0 Slots (Slot #2 populated by 3808 controller by default)

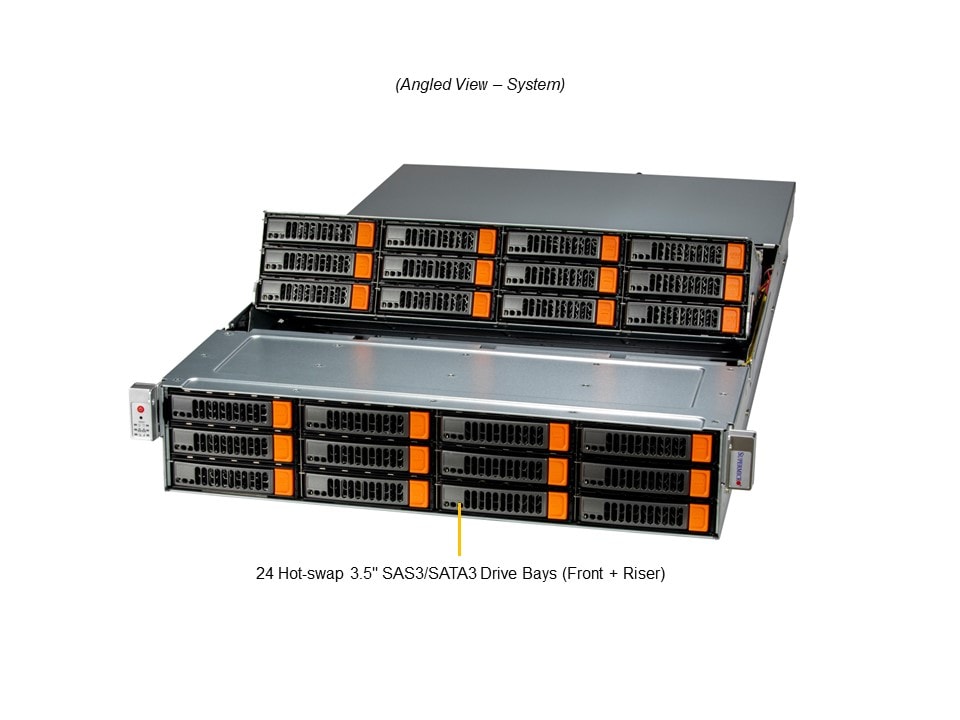

- 24 3.5" Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots, 4x Optional Rear NVMe Slots, 2x NVMe/SATA M.2
- 4x 8cm hot-swap counter-rotate redundant PWM cooling fans
- 1600W Redundant Power Supplies Titanium Level (96%)
- HBA Controller support via Broadcom® 3808
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X13SEDW-F |
Processor
| CPU | Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Up to 36C/72T; Up to 180MB Cache |
System Memory
| Slot Count | 16 DIMM slots |
| Max Memory (2DPC) | Up to 4TB 5600MT/s ECC DDR5 RDIMM |
Drive Bays / Storage

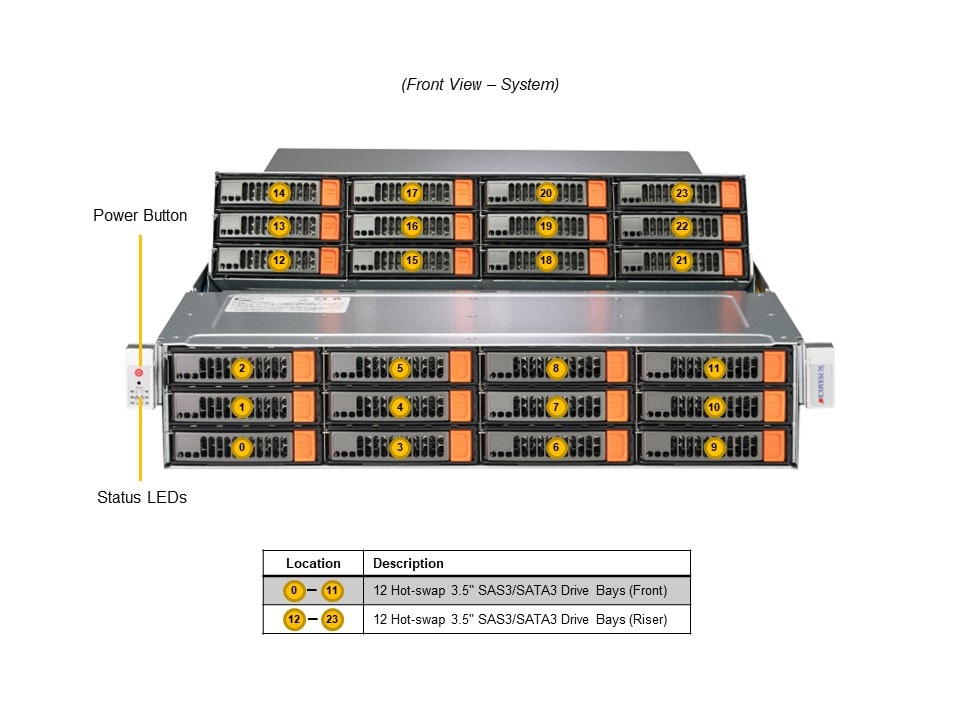

| Configuration Default | Total 26 bays 12 front hot-swap 3.5" SAS/SATA drive bays 12 top-loading hot-swap 3.5" SAS/SATA drive bays 2 rear hot-swap 2.5" SATA drive bays |
| Option B | Total 30 bays 12 front hot-swap 3.5" SAS/SATA drive bays 12 top-loading hot-swap 3.5" SAS/SATA drive bays 4 rear hot-swap 2.5" NVMe drive bays 2 rear hot-swap 2.5" SATA drive bays |
| M.2 | 2 M.2 NVMe slots (M-key 2280/22110) |
Expansion Slots

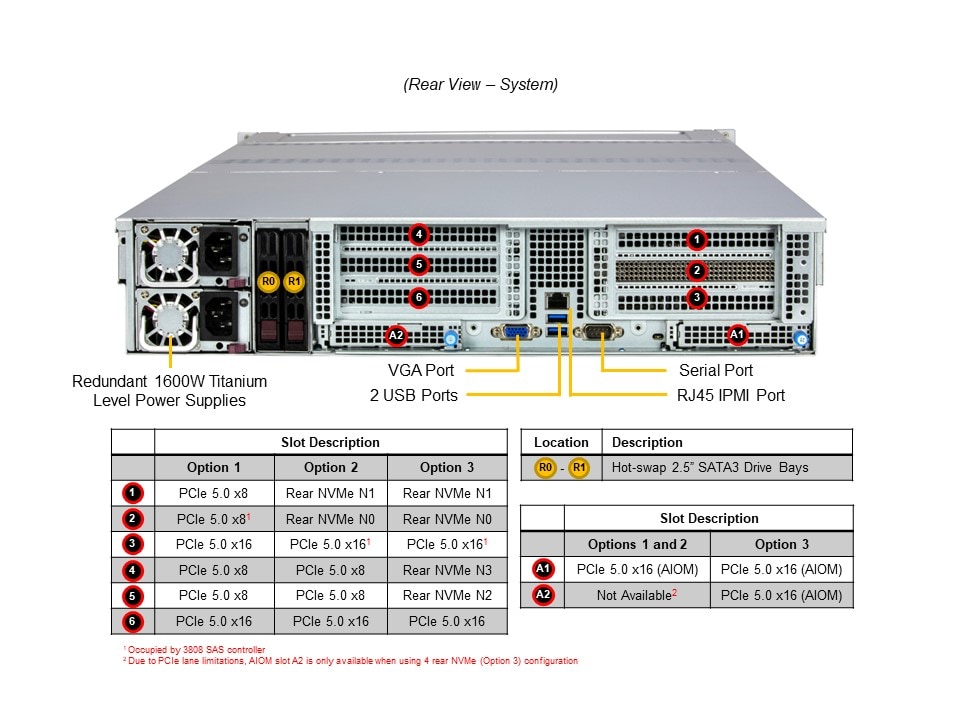

| PCIe | Default 4 PCIe 5.0 x8 FHHL slots 2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
On-Board Devices
| Network Connectivity | Via AIOM |
Input / Output
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) |
| Video | 1 VGA port |
| DOM | 2 SuperDOM (Disk on Module) ports |
System Cooling
| Fans | Up to 4 Heavy Duty 8cm Fan(s) |
| Air Shroud | 1 Air Shroud |
Power Supply
| PSU | 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies |
System BIOS
| BIOS Type | AMI 32MB SPI Flash EEPROM |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
Form Factor
| Form factor | 2U Rackmount |
| Enclosure | (17.2" x 3.5" x 34") |
| Package | (29" x 12" x 52") |
Chassis
| Model | CSE-826S3TS-R1K62P1 |
Dimensions & Weight
| Weight | Gross Weight: 74.5 lbs (33.79 kg) |
| Net Weight | 52 lbs (23.59 kg) |
| Available Color | Silver |
Operating Environment
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Non-operating Relative Humidity | 5% to 95% (non-condensing) |
