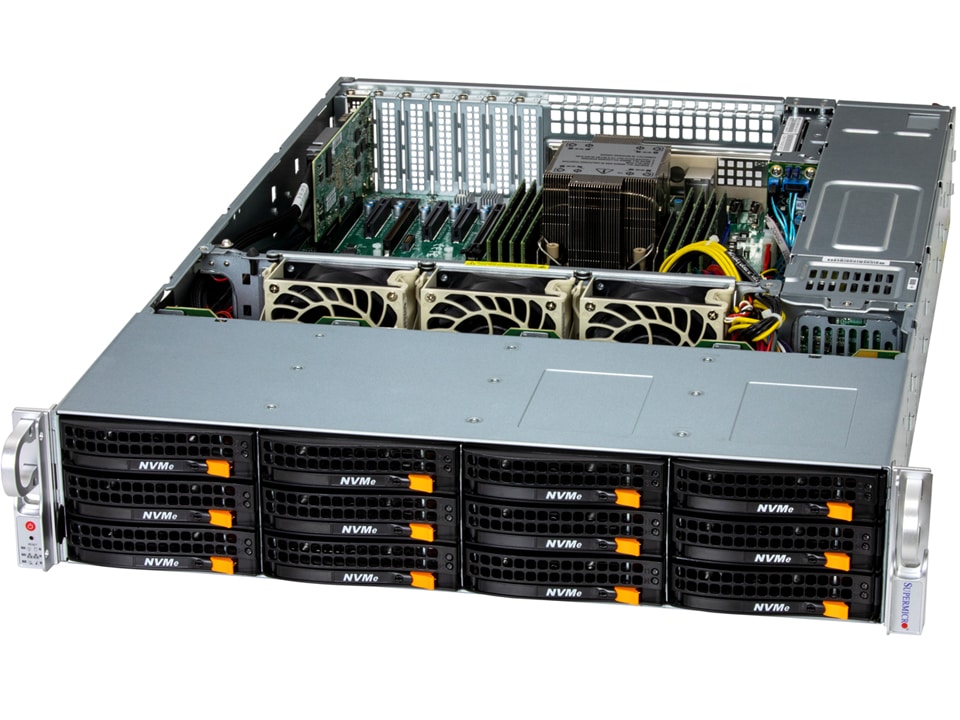

SSG-522B-ACR12H
2U UP front-loading storage server with 12 direct-attached hot-swap 3.5" SAS/SATA/NVMe bays (SAS hardware RAID) and PCIe 5.0.
2U
Form factor
14 Bays
Hot-swap
Intel Xeon 6
Single-socket
Up to 2TB
DDR5 ECC
PCIe 5.0
Gen5 slots
2×1200W
Titanium
- HW RAID by Broadcom® SAS3916 on both front and rear drive bays

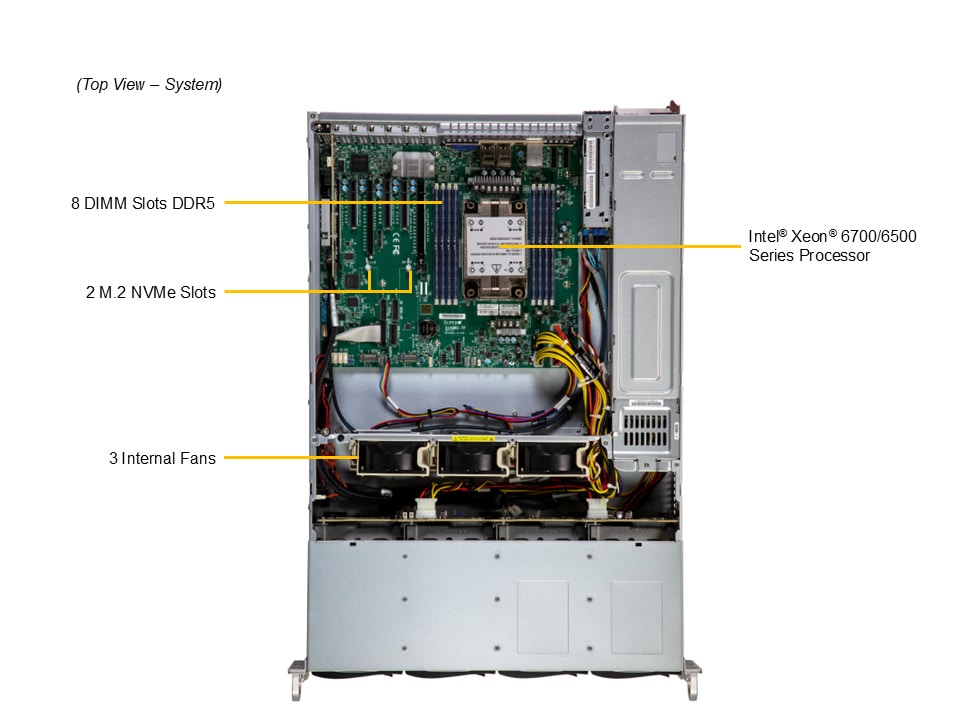

- Single Intel® Xeon® 6700/6500 series processor up to 350W TDP
- Up to 2TB DDR5-6400MT/s ECC Registered in 8 DIMM slots (1DPC)

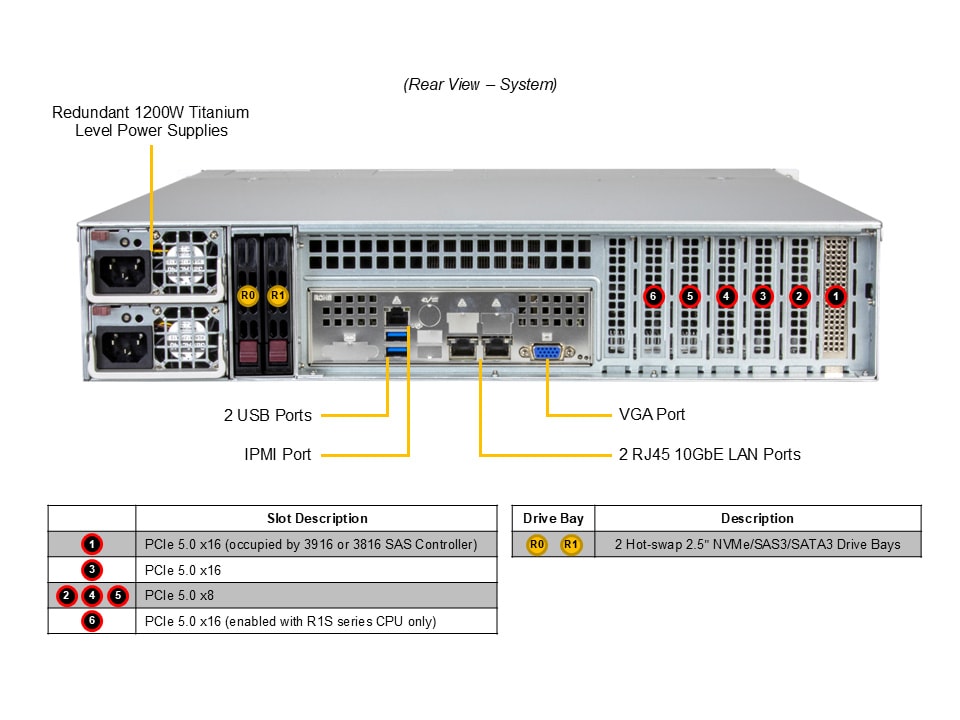

- 2 onboard 10GbE ports via Intel® X550 and 1 GbE port for BMC via Aspeed AST2600
- Six total PCIe slots: 3 PCIe 5.0 x8 + 3 PCIe 5.0 x16 slots

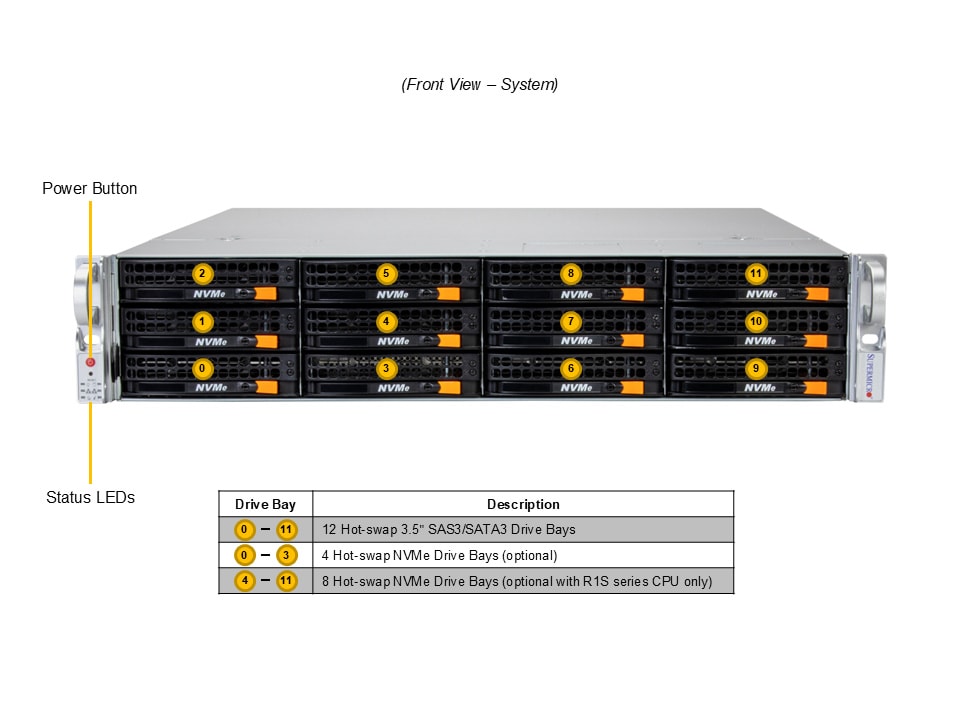

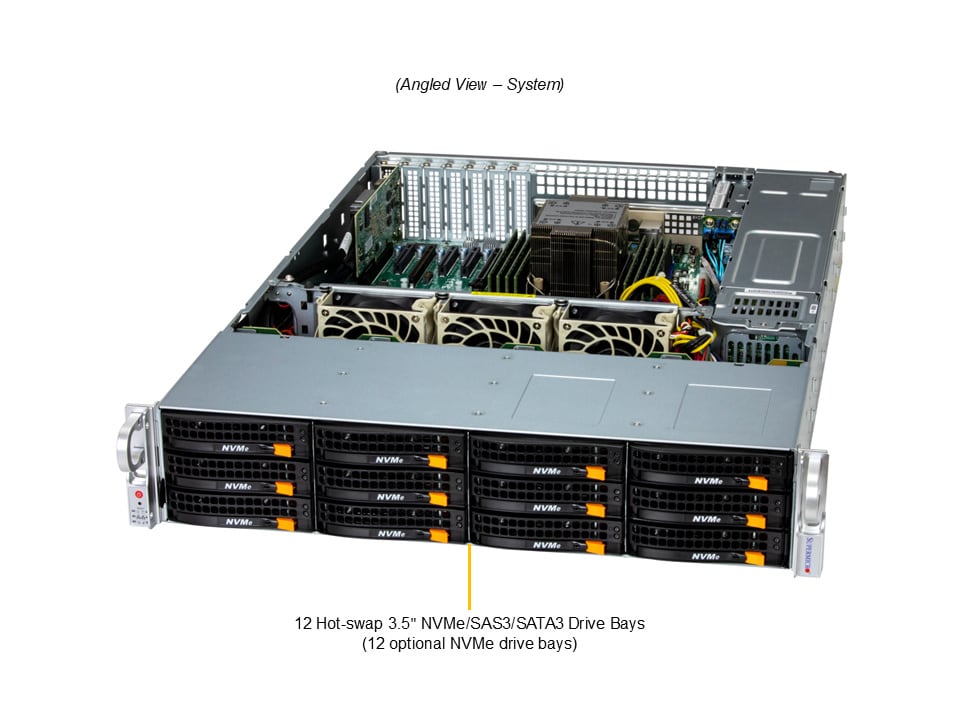

- 2U all hybrid hot-swap NVMe/SAS3/SATA3 front(3.5" x 12) and rear(2.5" x 2) drive bays
- 1200W Redundant Titanium Level (96%) Hot-plug power supplies
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X14SBI-TF |
Processor
| CPU | Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| P-cores | Up to 86C/172T; Up to 336MB Cache |
| E-cores | Up to 144C/144T; Up to 108MB Cache |
System Memory
| Slot Count | 8 DIMM slots/8 Channels |
| Max Memory (1DPC) | Up to 2TB 6400MT/s ECC DDR5 RDIMM |
Drive Bays / Storage
| Configuration Default | Total 14 bays 12 front hot-swap 3.5" NVMe*/SAS/SATA drive bays 2 rear hot-swap 2.5" NVMe*/SAS/SATA drive bays |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)) |
Expansion Slots
| PCIe | Default 3 PCIe 5.0 x16 (in x16) LP slots 3 PCIe 5.0 x8 (in x8) LP slots |
On-Board Devices
| SATA | 4 x SlimSAS |
| SAS | SAS (12Gbps) via Broadcom® 3916; RAID 0/1/5/6/10/50/60 support |
| NVMe | NVMe; RAID 0/1 support(Intel® VROC RAID key required) |
| Network Connectivity | 2 RJ45 10GbE with Intel® X550 |
Input / Output
| LAN | 2 RJ45 10 GbE LAN ports (Intel® X550) 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) |
| USB | 2 USB 3.2 Gen1 ports(Header) 2 USB 3.2 Gen1 ports(Rear) |
| Video | 1 VGA port(Rear) |
| Serial | 1 COM port(header) |
System Cooling
| Fans | Up to 3 Heavy Duty PWM 80x80x38mm Fan(s) |
| Air Shroud | 1 Air Shroud |
Power Supply
| PSU | 2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies |
System BIOS
| BIOS Type | AMI 64MB UEFI SMBIOS 3.7 or later |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment, PECI |
Form Factor
| Form factor | 2U Rackmount |
| Enclosure | 437 x 89 x 650mm (17.2" x 3.5" x 25.6") |
| Package | 673 x 292 x 864mm (26.5" x 11.5" x 34") |
Chassis
| Model | CSE-826BTS-R1K23LPBP2 |
Dimensions & Weight
| Weight | Gross Weight: 58 lbs (26.3 kg) |
| Net Weight | 34 lbs (15.4 kg) |
| Available Color | Black |
Operating Environment
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Non-operating Relative Humidity | 5% to 95% (non-condensing) |
