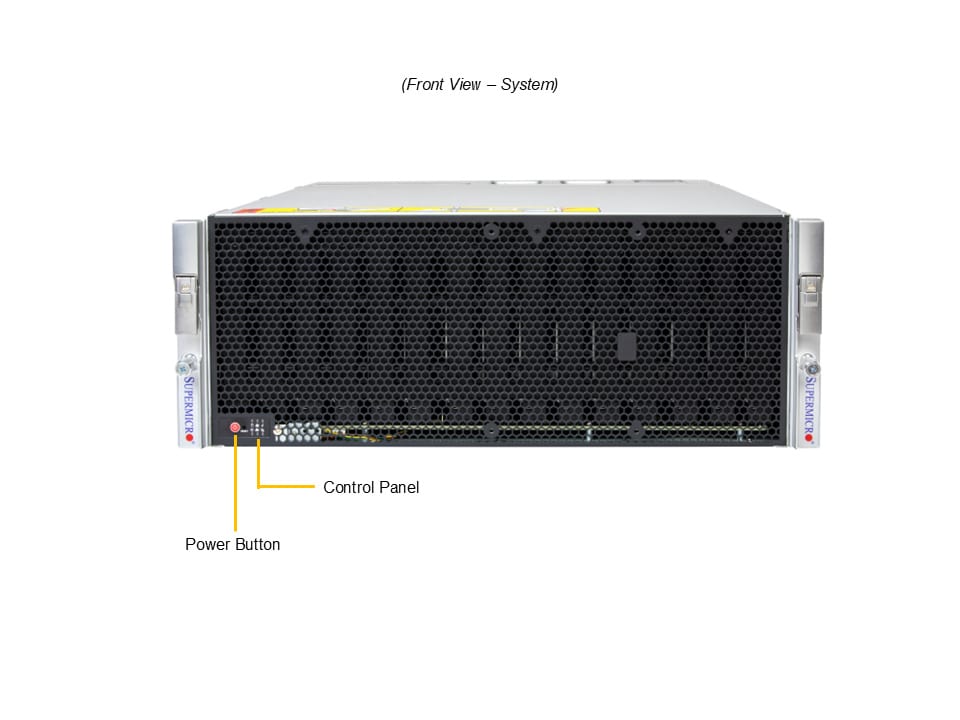

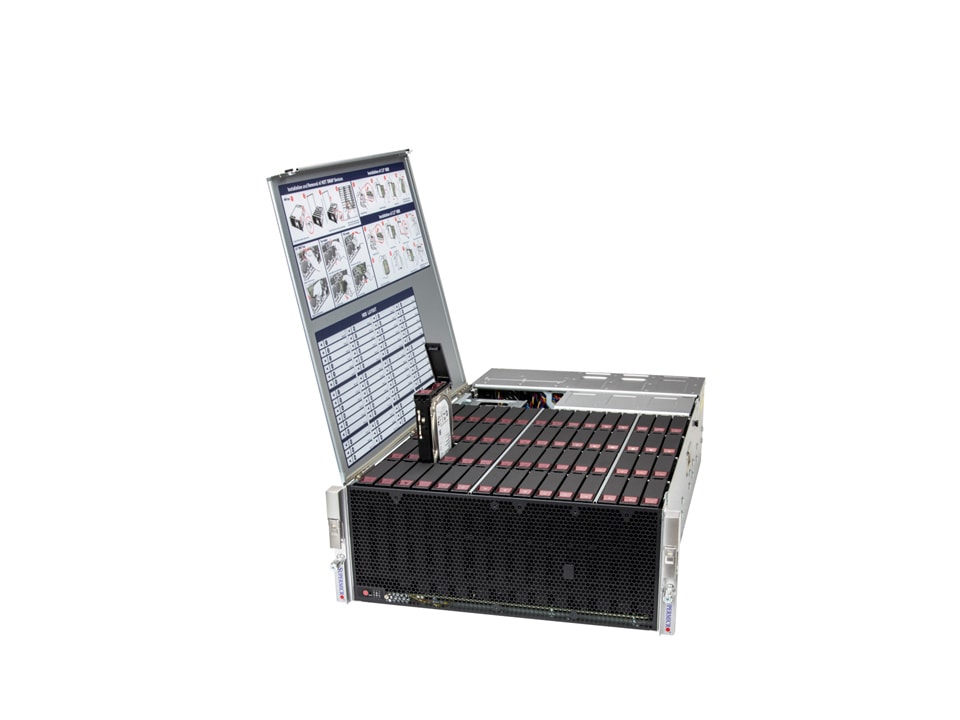

SSG-542B-CE1CR60L
4U Storage server with 60 hot-swap 3.5" SAS/SATA bays and PCIe 5.0.
4U
Form factor
60 Bays
Hot-swap
Xeon 6
Single socket
Up to 2TB
DDR5 ECC
PCIe 5.0
Gen5 slots
2×1600W
Titanium
- HBA by Broadcom® SAS3816 on main drive bays
- Onboard Trusted Platform Module 2.0 via Infineon TPM 9672
- Single Intel® Xeon® 6700/6500 series processor up to 350W TDP
- Up to 2TB DDR5-6400MT/s registered ECC in 8 DIMM slots (1DPC)
- 2 onboard 10GbE ports via Intel® X550 and 1 GbE port for BMC via Aspeed AST2600

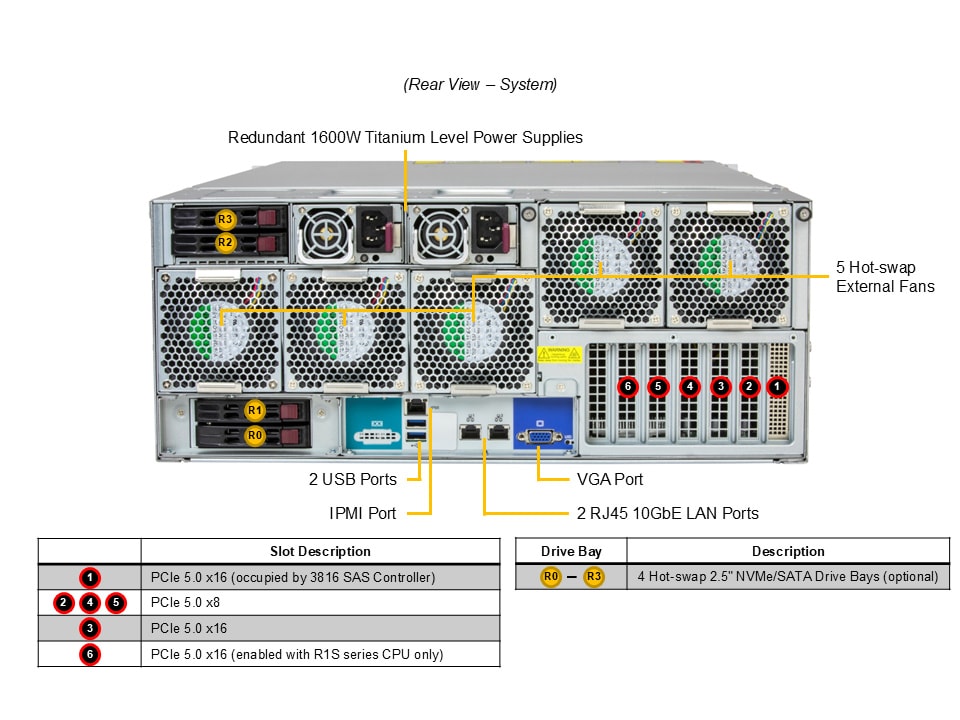

- Six total PCIe slots: 3 PCIe 5.0 x8 + 3 PCIe 5.0 x16 slots

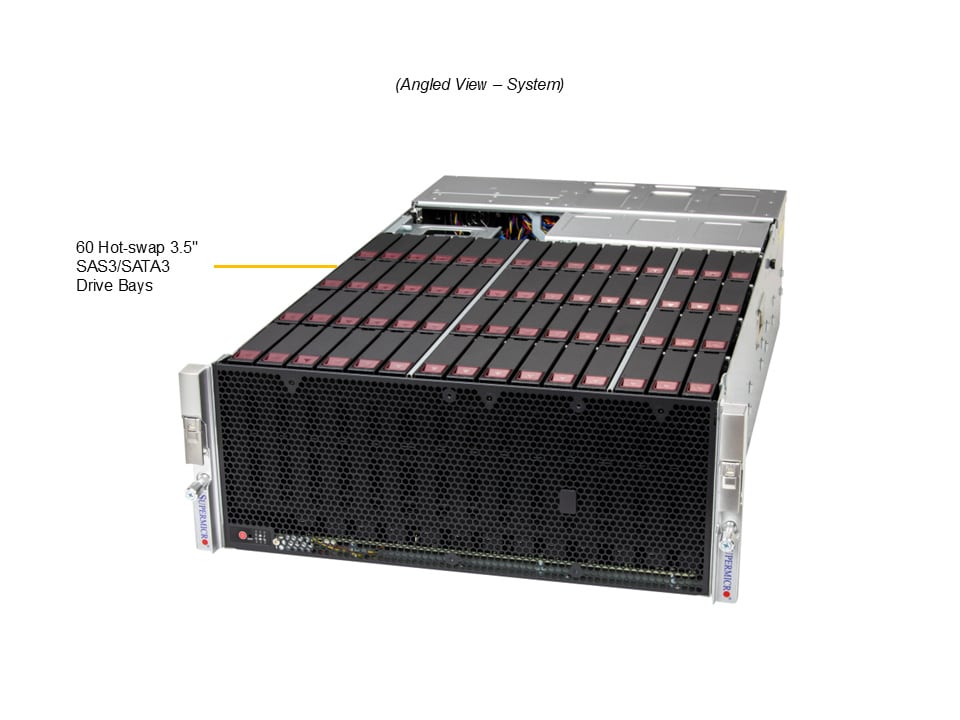

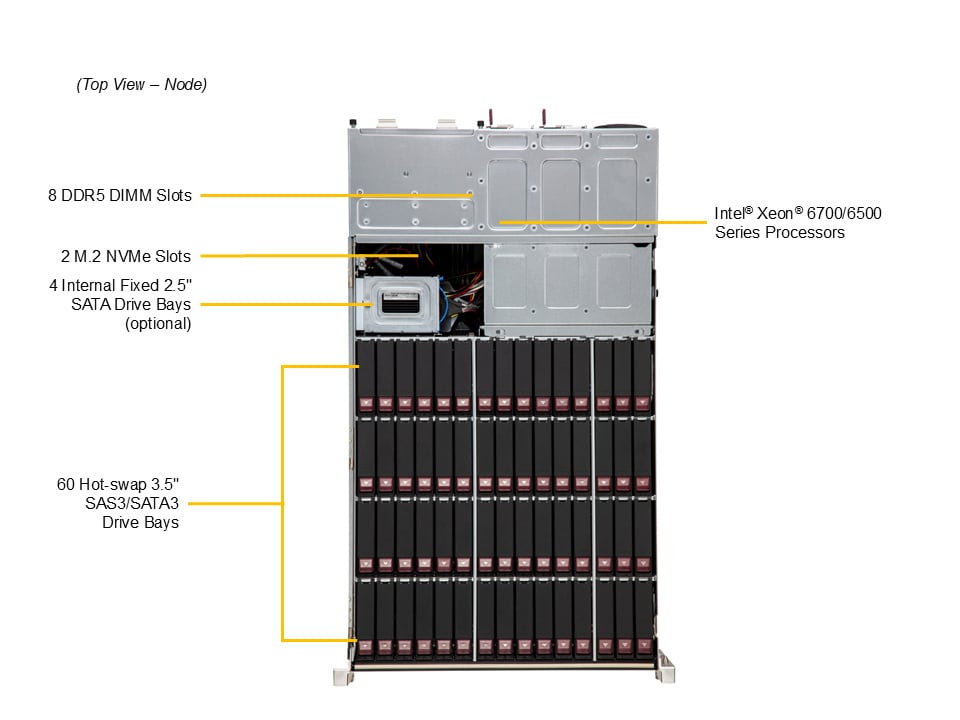

- Up to 60 top-loading hot-swap 3.5" SAS/SATA drive bays
- Optional 4 hot-plug NVMe or SATA SSDs
- 2 Redundant 1600W Titanium Level Hot-plug power supplies
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X14SBI-TF |
Processor
| CPU | Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| P-cores | Up to 86C/172T; Up to 336MB Cache |
| E-cores | Up to 144C/144T; Up to 108MB Cache |
System Memory
| Slot Count | 8 DIMM slots |
| Max Memory (1DPC) | Up to 2TB 6400MT/s ECC DDR5 RDIMM |
Drive Bays / Storage
| Configuration Default | Total 60 bays 60 top-loading hot-swap 3.5" SAS/SATA drive bays |
| Option A | Total 4 bays 4 rear hot-swap 2.5" PCIe 5.0 x8 NVMe* drive bays |
| Option B | Total 4 bays 4 rear hot-swap 2.5" SATA* drive bays |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)) |
Expansion Slots
| PCIe | Default 3 PCIe 5.0 x16 (in x16) LP slots 3 PCIe 5.0 x8 (in x8) LP slots |
On-Board Devices
| SATA | SATA (6Gbps) |
| NVMe | NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) |
| Network Connectivity | 2 RJ45 10GBASE-T with Intel® X550 |
Input / Output
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports |
| USB | 2 USB 3.2 Gen1 ports(Header) 2 USB 3.2 Gen1 ports(Rear) |
| Video | 1 VGA port |
System Cooling
| Fans | Up to 5 Heavy Duty 8cm Fan(s) |
| Air Shroud | 1 Air Shroud |
Power Supply
| PSU | 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies |
System BIOS
| BIOS Type | AMI 64MB UEFI SMBIOS 3.7 or later |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment, PECI |
Form Factor
| Form factor | 4U Rackmount |
| Enclosure | 437 x 178 x 767.08mm (17.2" x 7" x 26") |
| Package | 711 x 845 x 1080mm (28" x 33.25" x 42.5") |
Chassis
| Model | CSE-946STS-R1K63LPP |
Dimensions & Weight
| Weight | Gross Weight: 169.5 lbs (76.9 kg) |
| Net Weight | 117 lbs (53 kg) |
| Available Color | Black |
Operating Environment
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Non-operating Relative Humidity | 5% to 95% (non-condensing) |
