Supermicro · Storage Servers

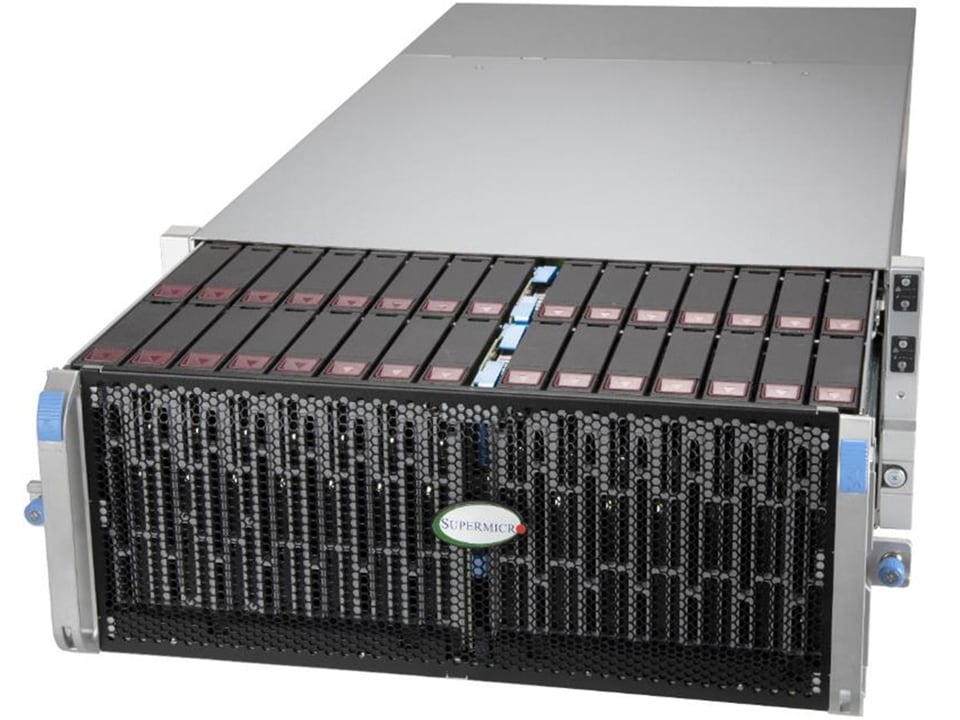

SSG-542B-DE1CR90
4U 2-node top-loading storage server with 90 hot-swap 3.5" SAS/SATA bays and PCIe 5.0.
4U
Form factor
2 Nodes
Hot-pluggable
90 Bays
3.5"/2.5" SAS/SATA
Xeon 6
LGA-4710, ≤350W
2TB/node
DDR5, 16 DIMM
2×2600W
Titanium, 1+1
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Product SKUs
| SSG-542B-DE1CR90 | Base model |
| SSG-542B-DE1CR90-01-G2 | Gold Series version with pre-configured components |
Motherboard
| Model | Super X14SBSC |
Processor (per Node)
| CPU | Single Socket E2 (LGA-4710) |
| Supported processors | Intel® Xeon® 6700/6500 series with P-cores, or 6700 series with E-cores |
| Core count | P-cores: up to 86C/144T, up to 108MB cache · E-cores: up to 144C/144T, up to 108MB cache |
| Note | Supports up to 350W TDP CPUs (air cooled) |
System Memory (per Node)
| Slot count | 16 DIMM slots |
| Max memory (1DPC) | Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| Max memory (2DPC) | Up to 2TB 5200MT/s ECC DDR5 RDIMM |
| Memory voltage | 1.1V |
On-Board Devices (per Node)
| NVMe | NVMe; RAID 0/1 support |
| Network connectivity | No onboard NIC; network via AOC option |
Input / Output (per Node)
| LAN | 1× RJ45 1GbE dedicated BMC LAN port |
| USB | 2× USB 3.0 ports (rear) |
| Video | 1× VGA port |
Expansion Slots (per Node)

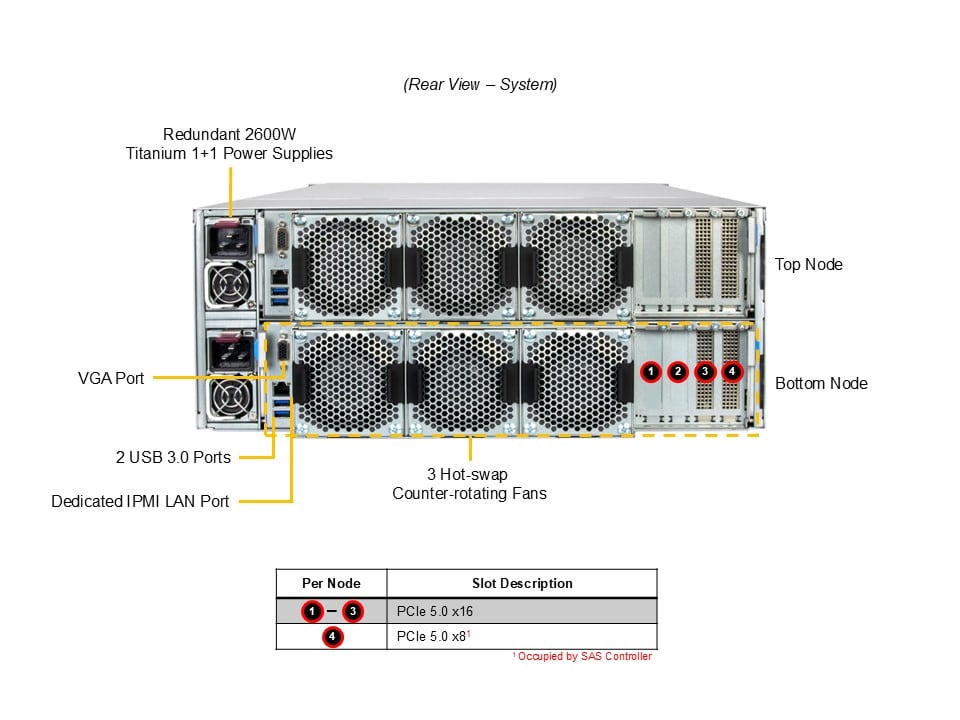

| PCIe | 1× PCIe 5.0 x8 (in x8) HHHL slot · 3× PCIe 5.0 x16 (in x16) HHHL slots |
| M.2 | 2× M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110) |
Drive Bays / Storage (per Node)

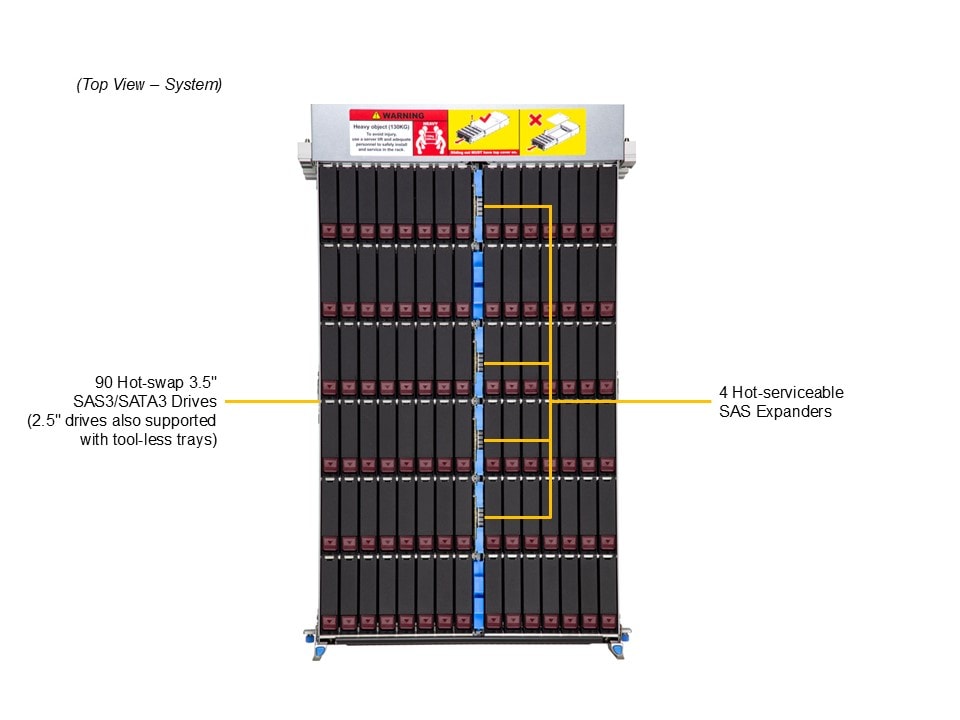

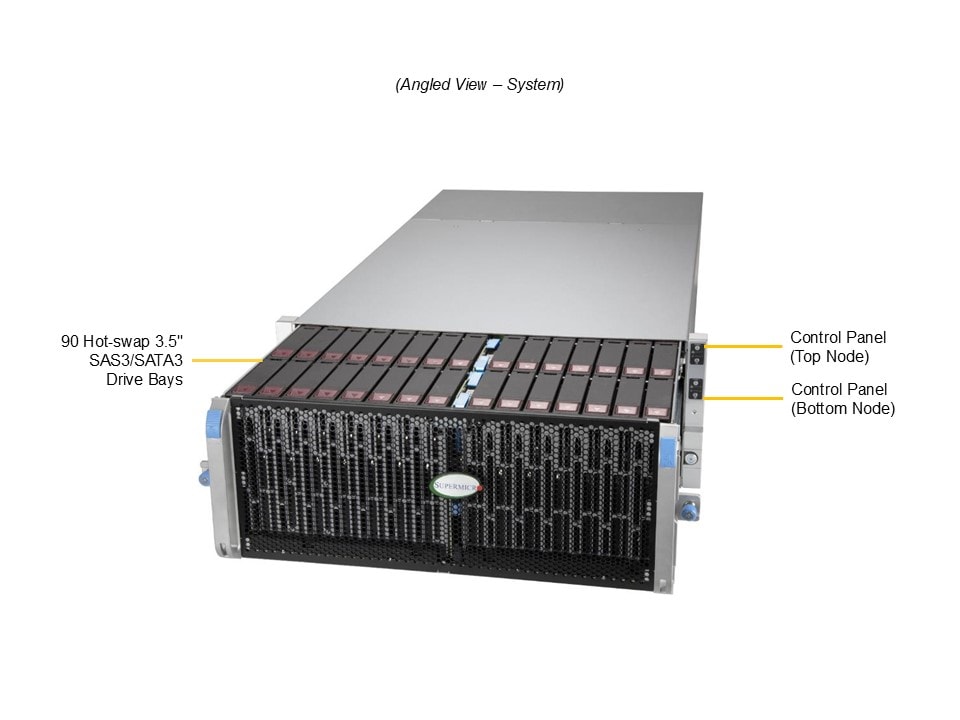

| Default | Total 90 bays — 90 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays |

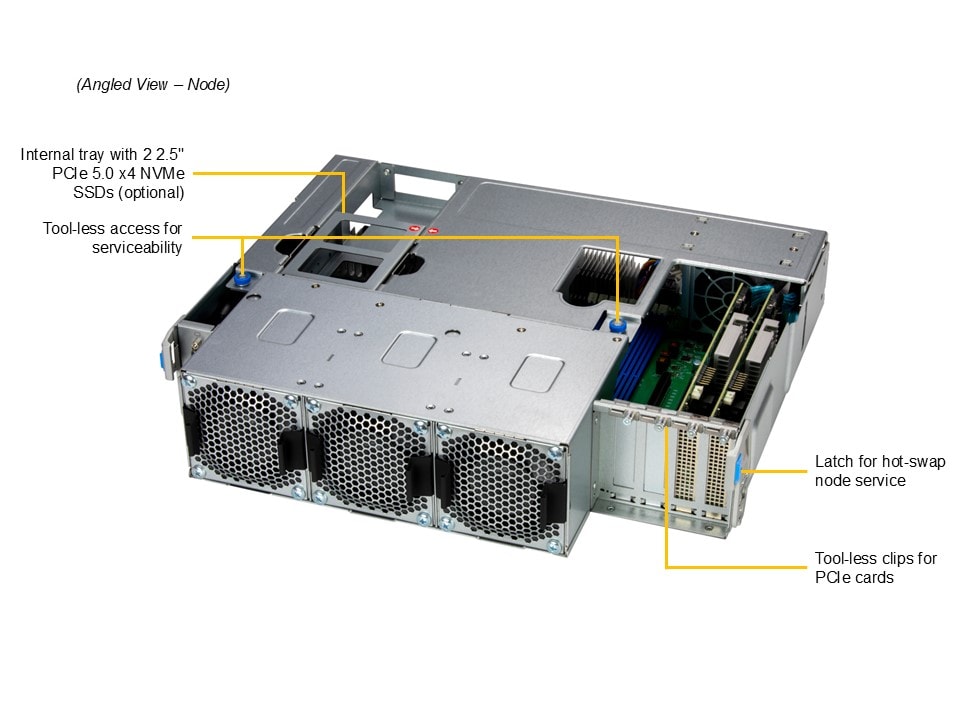

| Option A | Total 2 bays — 2 internal fixed 2.5" PCIe 5.0 x4 NVMe drive bays (NVMe support may require additional storage controller and/or cables) |
| M.2 | 2× M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110) |
Chassis
| Form factor | 4U Rackmount |
| Chassis model | CSE-947HTS-R2K63P |
| Dimensions (H×W×D) | 6.96" (177 mm) × 17.6" (447 mm) × 43.3" (1099 mm) |
| Weight | Gross: 225 lbs (102.06 kg) · Net: 130 lbs (58.97 kg) |
| Palletized packing (W×H×L) | 35.82" (910 mm) × 29.92" (755 mm) × 53.15" (1345 mm) |
System Cooling
| Fans | Up to 1× counter-rotating 6cm fan; up to 6× heavy-duty 8cm fans |
Power Supply
| PSU | 2× 2600W Redundant (1+1) Titanium Level (96%) power supplies |
| Dimension (W×H×L) | 73.5 × 40 × 265 mm |
| Input | 2600W: 200-240Vac · 200-240Vdc (CQC only) · 200-240Vac / 50-60Hz · 200-240Vdc / 50-60Hz (CQC only) |
| +12V | Max 216A / Min 0A (11.4–12.6Vdc) · Max 216A / Min 0A (200–240Vac) |
| 12V SB | Max 3.5A |
| Output type | Backplanes (gold finger) |
System BIOS
| BIOS type | AMI 64MB SPI Flash |
Management
| Software | SuperCloud Composer® (SCC), Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) |
| Power configurations | Power-on mode for AC power recovery; ACPI Power Management |
Security
| Hardware | Trusted Platform Module (TPM) 2.0; Silicon Root of Trust (RoT) — NIST 800-193 compliant |
| Features | Cryptographically signed firmware · Secure Boot · Secure firmware updates · Automatic firmware recovery · Supply-chain security: remote attestation · Runtime BMC protections · System lockdown |
PC Health Monitoring
| CPU | Monitors CPU cores, chipset voltages, memory |
| Fan | Fans with tachometer monitoring; PWM fan connectors; status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment; thermal control for fan connectors |
Certifications
| Operating systems | Oracle Linux 9.6, RHEL 10.0, Windows Server 2025 |
Operating Environment
| Operating temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating humidity | 8% to 90% (non-condensing) |
| Non-operating humidity | 5% to 95% (non-condensing) |
