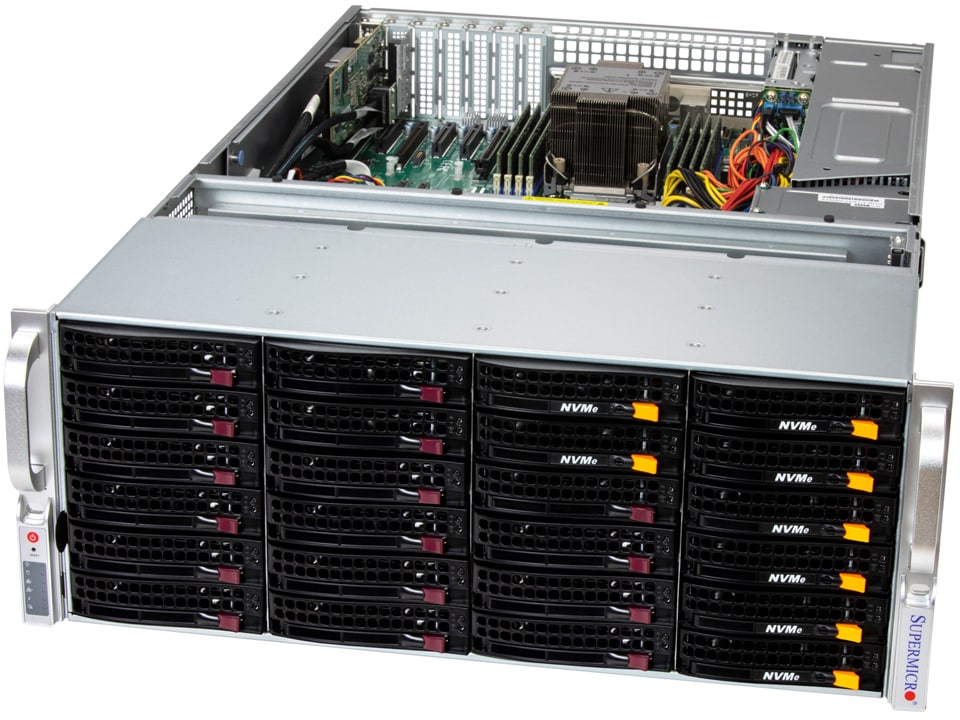

SSG-542B-E1CR36L
4U UP front/rear-loading storage server with 36 hot-swap 3.5" SAS/SATA bays (SAS HBA) and PCIe 5.0.
4U
Form factor
36 Bays
Hot-swap
Xeon 6
Single socket
Up to 2TB
DDR5 ECC
PCIe 5.0
Gen5 slots
2×1600W
Titanium
- HBA via Broadcom® SAS3816 connected on all 2.5"/3.5" drive bays
- Onboard Trusted Platform Module 2.0 via Infineon TPM 9672
- Single Intel® Xeon® 6700/6500 series processor up to 350W TDP
- Up to 2TB DDR5-6400MT/s registered ECC in 8 DIMM slots (1DPC)
- 2 onboard 10GbE ports via Intel® X550 and 1GbE port for BMC via Aspeed AST2600
- Six total PCIe slots: 3 PCIe 5.0 x8 + 3 PCIe 5.0 x16 slots
- 4U hybrid hot-swap NVMe/SAS3/SATA3 main (3.5" x 36) and rear (2.5" x 2) drive bays
- 1600W Redundant Titanium Level (96%) Hot-plug power supplies
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X14SBI-TF |

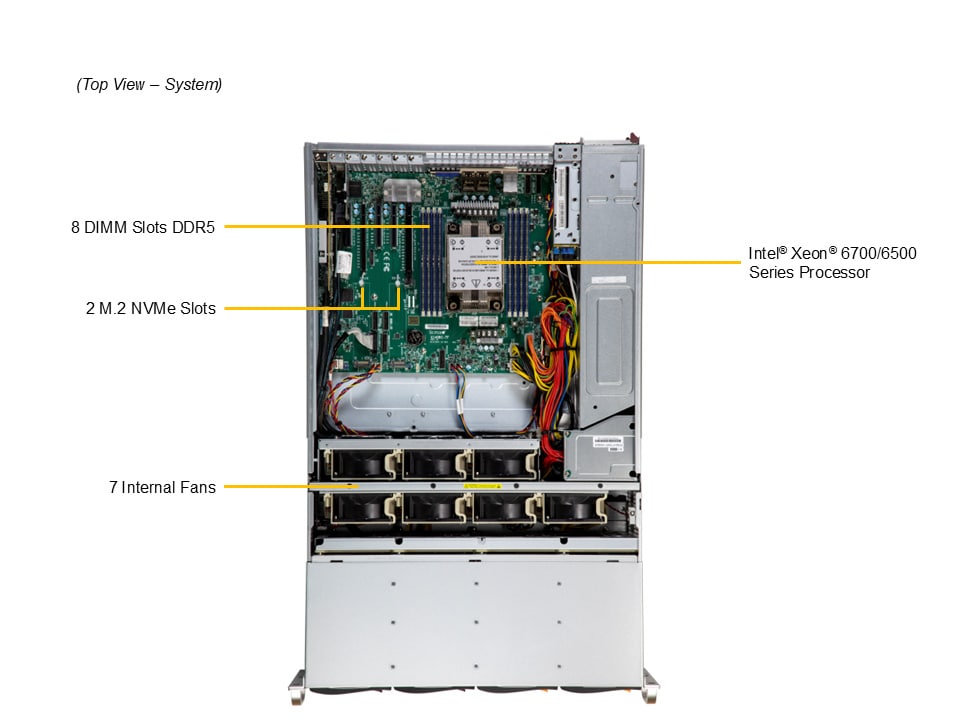

Processor
| CPU | Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| P-cores | Up to 86C/172T; Up to 336MB Cache |
| E-cores | Up to 144C/144T; Up to 108MB Cache |
System Memory
| Slot Count | 8 DIMM slots/8 Channels |
| Max Memory (1DPC) | Up to 2TB 6400MT/s ECC DDR5 RDIMM |

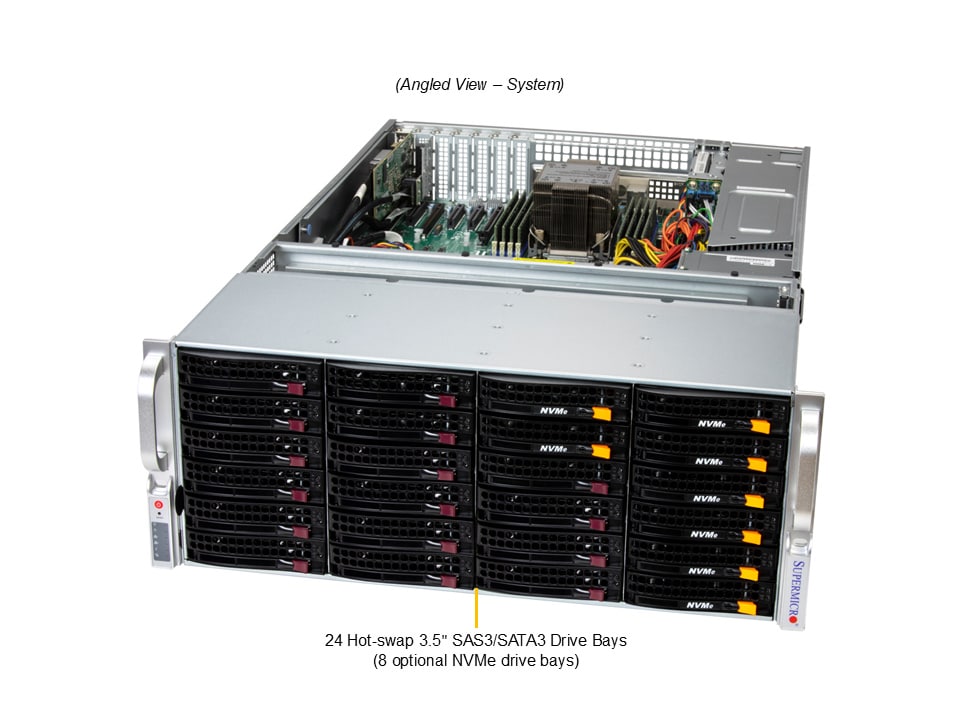

Drive Bays / Storage

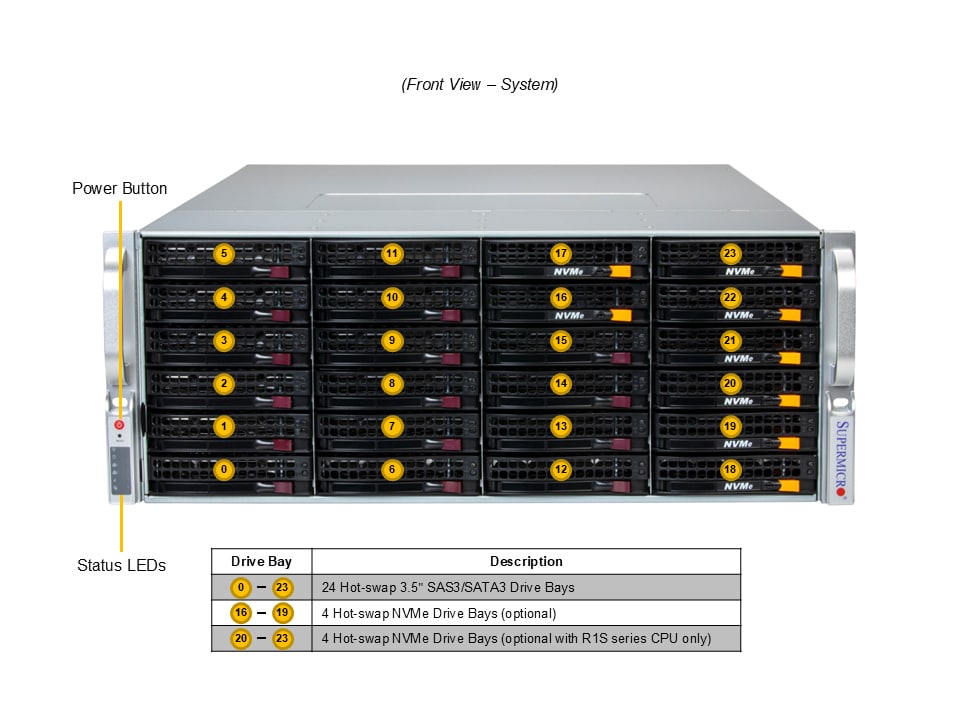

| Configuration Default | Total 38 bays 24 front hot-swap 3.5" SAS/SATA drive bays 12 rear hot-swap 3.5" SAS/SATA drive bays 2 rear hot-swap 2.5" SAS/SATA drive bays |
| Option A | Total 10 bays 8 front hot-swap 3.5" PCIe 5.0 x4 NVMe* drive bays 2 rear hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)) |
Expansion Slots

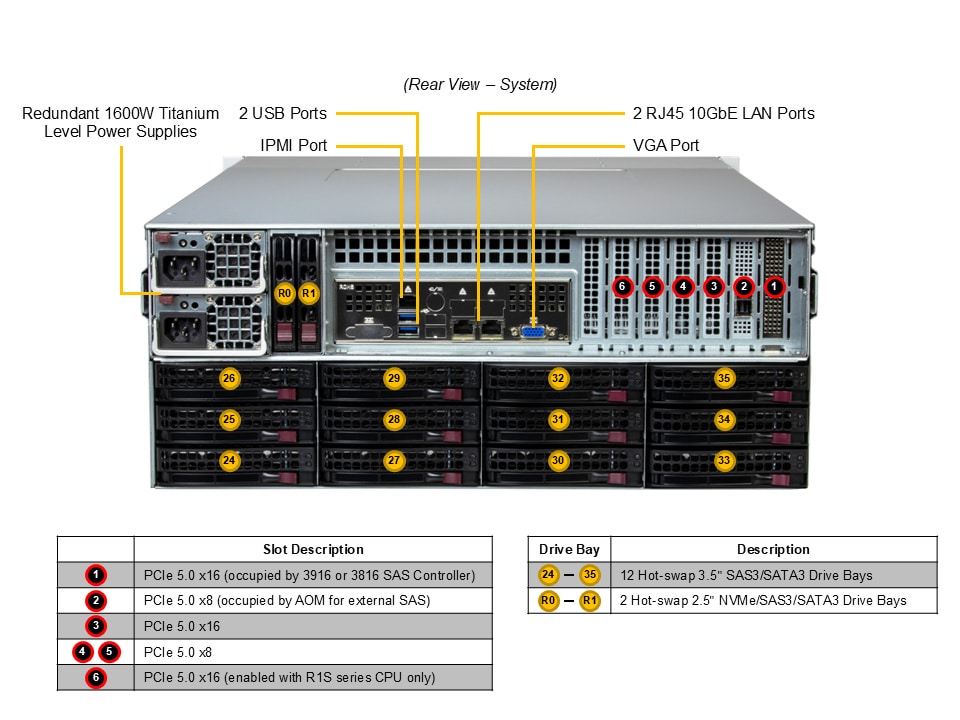

| PCIe | Default 3 PCIe 5.0 x8 (in x8) LP slots 3 PCIe 5.0 x16 (in x16) LP slots |
