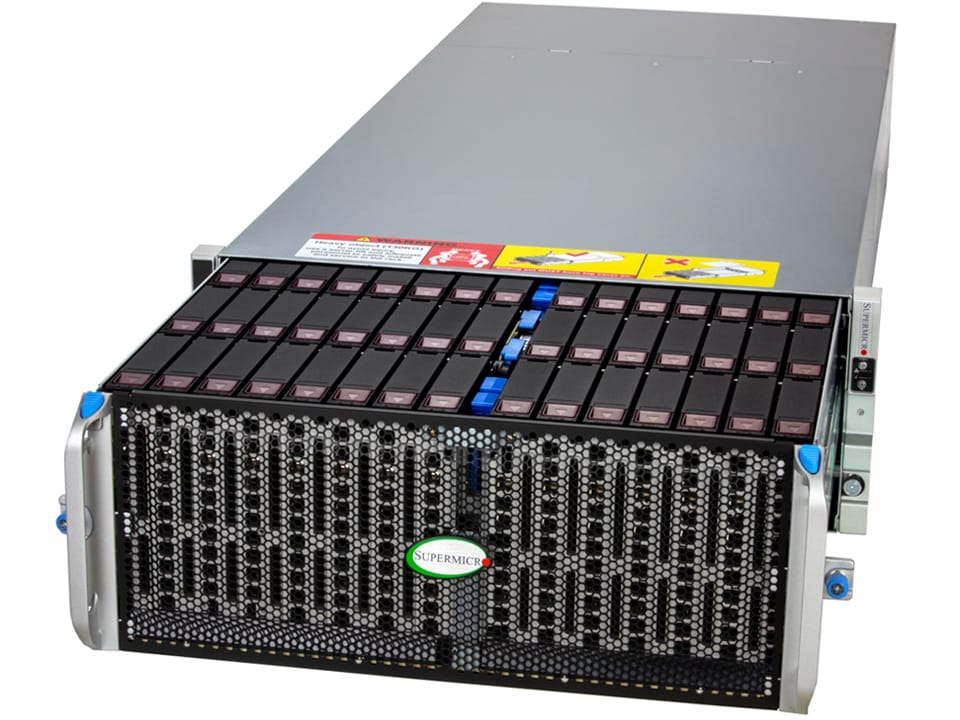

SSG-542B-E1CR60

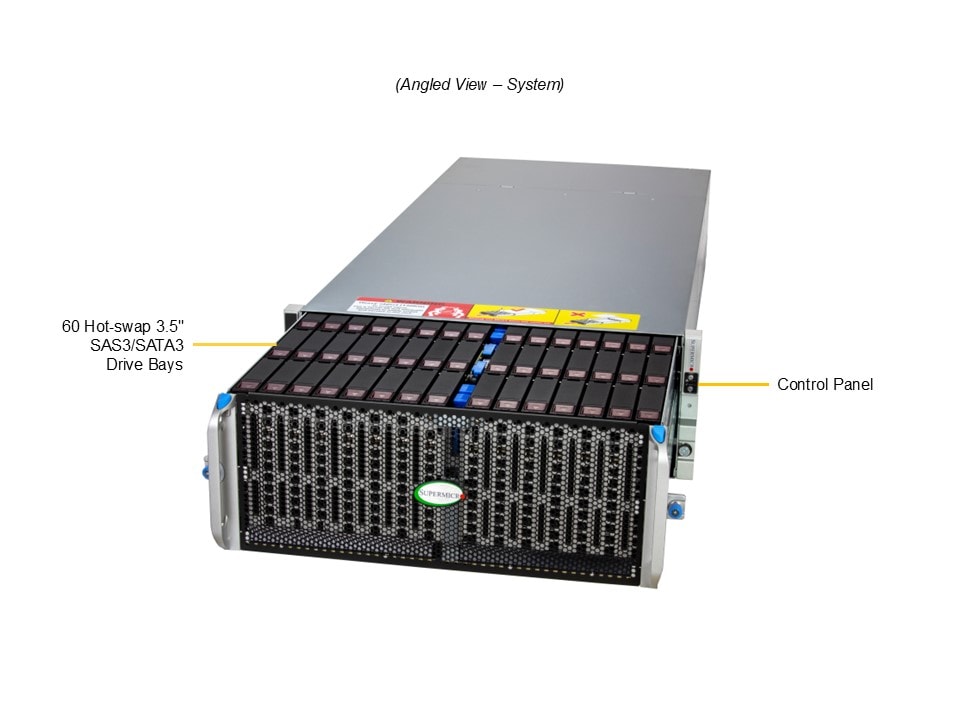

4U top-loading storage server with 60 hot-swap 3.5" SAS/SATA bays and PCIe 5.0.
4U
Form factor
60 Bays
Hot-swap
Xeon 6
Single socket
Up to 2TB
DDR5 ECC
PCIe 5.0
Gen5 slots
2×2000W
Titanium
- Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP
- Up to 2TB ECC RDIMM, DDR5-6400MT/s (1DPC) or DDR5-5200MT/s (2DPC) in 16 DIMM slots
- 1 PCIe 5.0 x8 and 3 PCIe 5.0 x16 HHHL
- 60 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2 2.5" Hot-swap Gen4 NVMe
- Drive Controller support via Broadcom® 3916 or 3816
- 2000W Redundant Power Supplies Titanium Level (96%)
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X14SBSC |
Processor
| CPU | Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| P-cores | Up to 86C/144T; Up to 336MB Cache |
| E-cores | Up to 144C/144T; Up to 108MB Cache |
System Memory
| Slot Count | 16 DIMM slots |
| Max Memory (1DPC) | Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| Max Memory (2DPC) | Up to 2TB 5200MT/s ECC DDR5 RDIMM |
Drive Bays / Storage

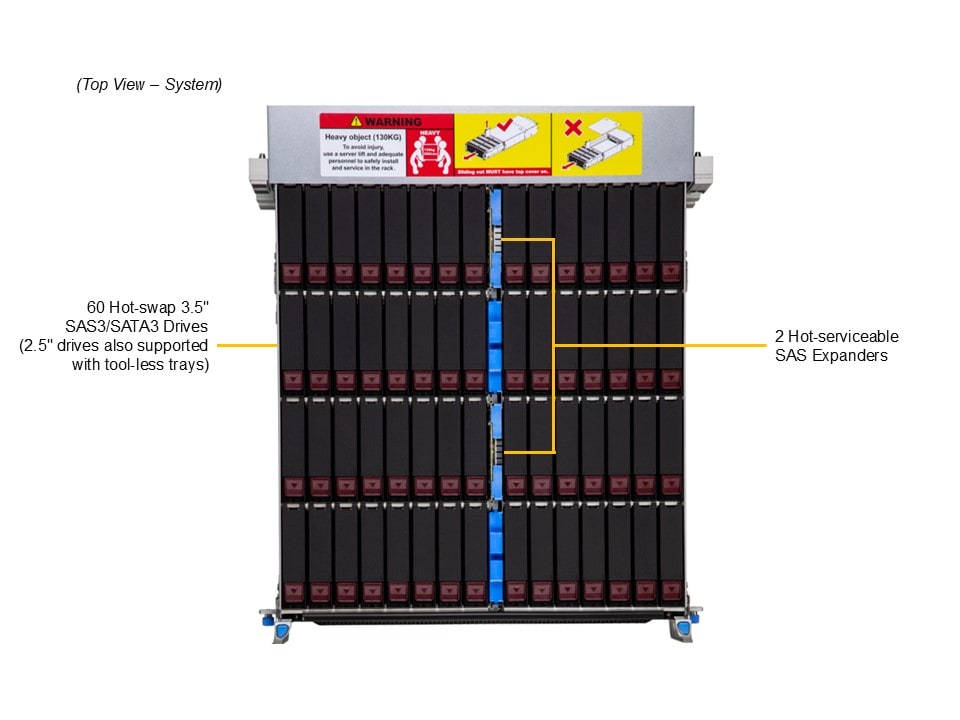

| Configuration Default | Total 60 bays 60 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays |
| Option A | Total 4 bays 4 rear hot-swap 2.5" PCIe 4.0 x4 NVMe* drive bays |

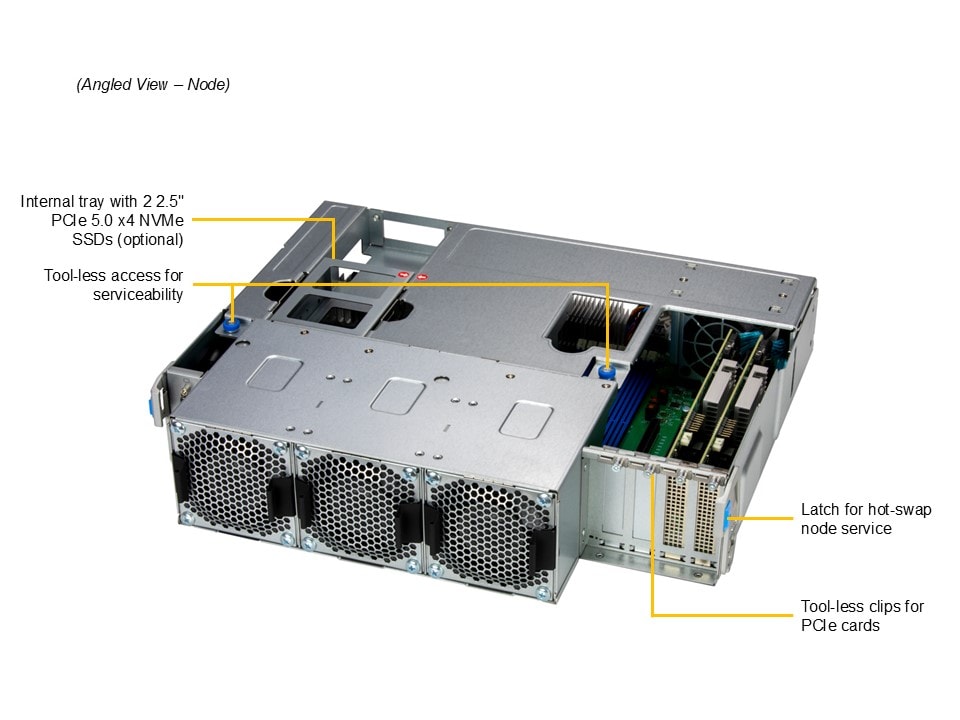

| Option B | Total 2 bays 2 internal fixed 2.5" PCIe 5.0 x4 NVMe* drive bays |
| M.2 | 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110) |
Expansion Slots

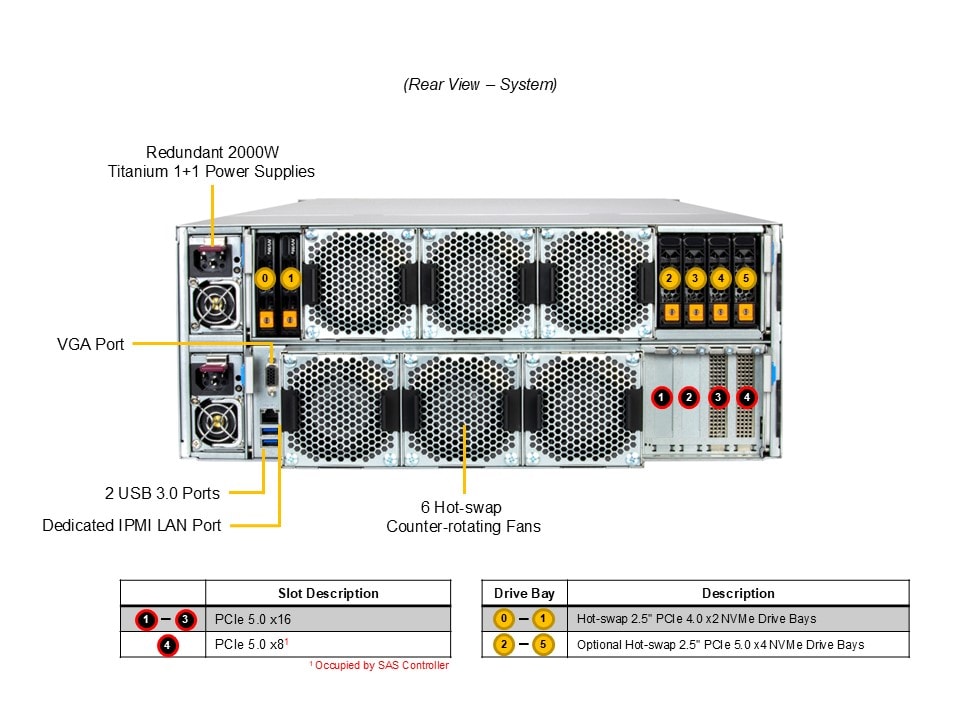

| PCI-Express (PCIe) Configuration | Default 1 PCIe 5.0 x8 (in x8) HHHL slot 3 PCIe 5.0 x16 (in x16) HHHL slots |
| M.2 | 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110) |
On-Board Devices
| NVMe | NVMe; RAID 0/1 support |
| Network Connectivity | No NIC option supported |
Input / Output
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) |
| Video | 1 VGA port |
System Cooling
| Fans | Up to 6 Heavy Duty 8cm Fan(s) Up to 1 Counter Rotating 6cm Fan(s) |
Power Supply
| PSU | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
System BIOS
| BIOS Type | AMI 64MB SPI Flash |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
Form Factor
| Form factor | 4U Rackmount |
| Enclosure | 447 x 177 x 813mm (17.6" x 6.96" x 32") |
Chassis
| Model | CSE-947STS-R2K05P |
Dimensions & Weight
| Weight | Gross Weight: 170 lbs (77.11 kg) |
| Net Weight | 107 lbs (48.53 kg) |
| Available Color | N/A |
Operating Environment
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Non-operating Relative Humidity | 5% to 95% (non-condensing) |
