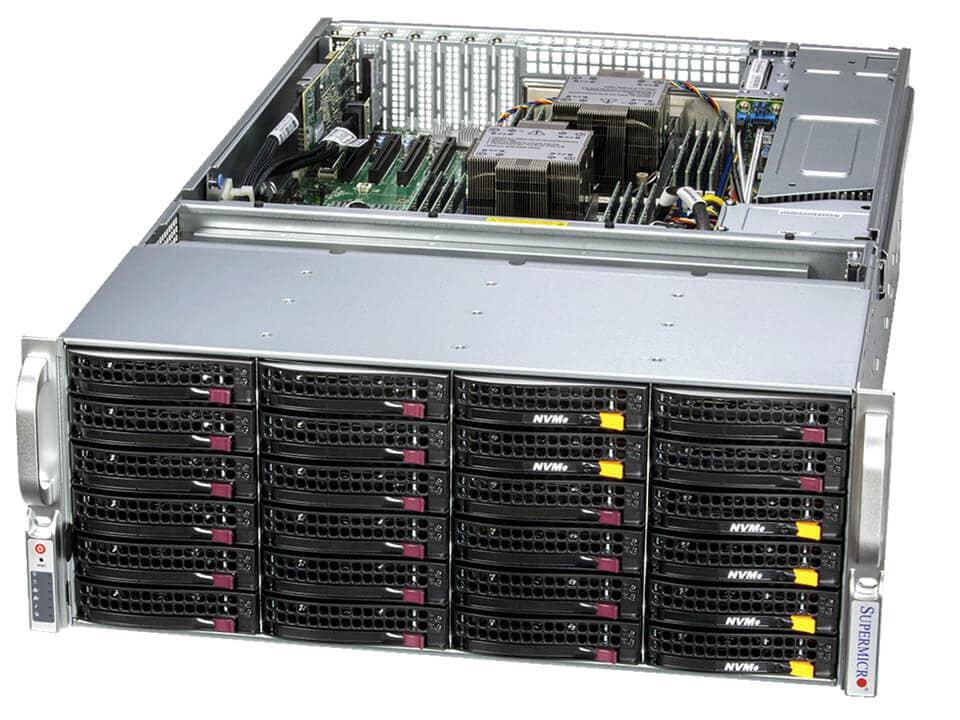

SSG-641E-E1CR36L

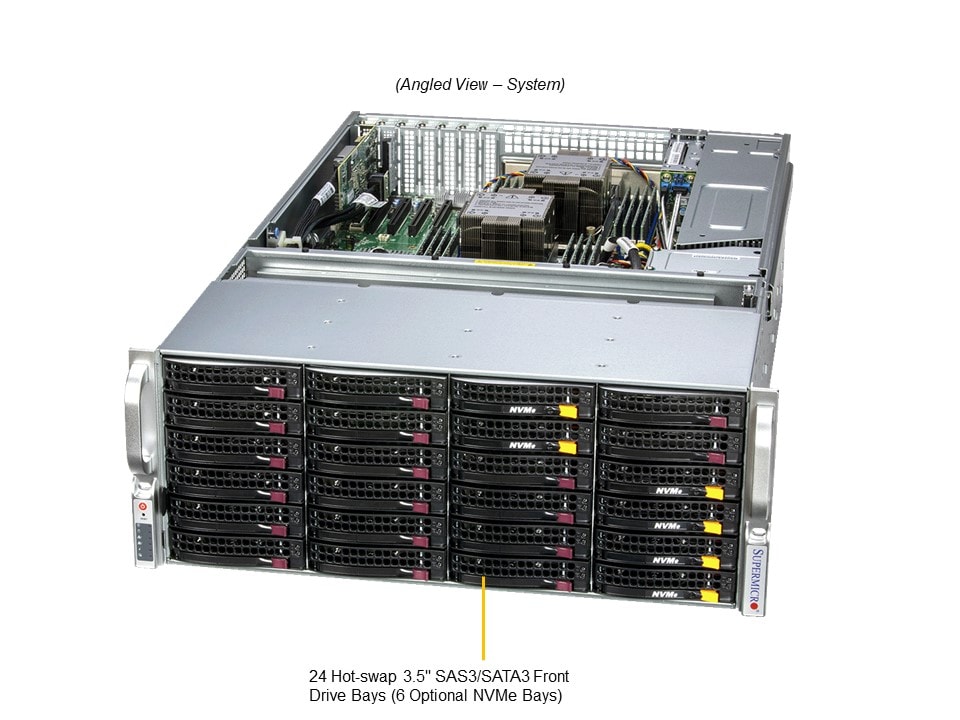

4U front/rear-loading storage server with 36 hot-swap 3.5" SAS/SATA bays (6 optional NVMe hybrid) and PCIe 5.0.
4U
Form factor
36 Bays
Hot-swap
Intel Xeon Scalable
Dual-socket
Up to 4TB
DDR5 ECC
PCIe 5.0
Gen5 slots
2×1600W
Titanium

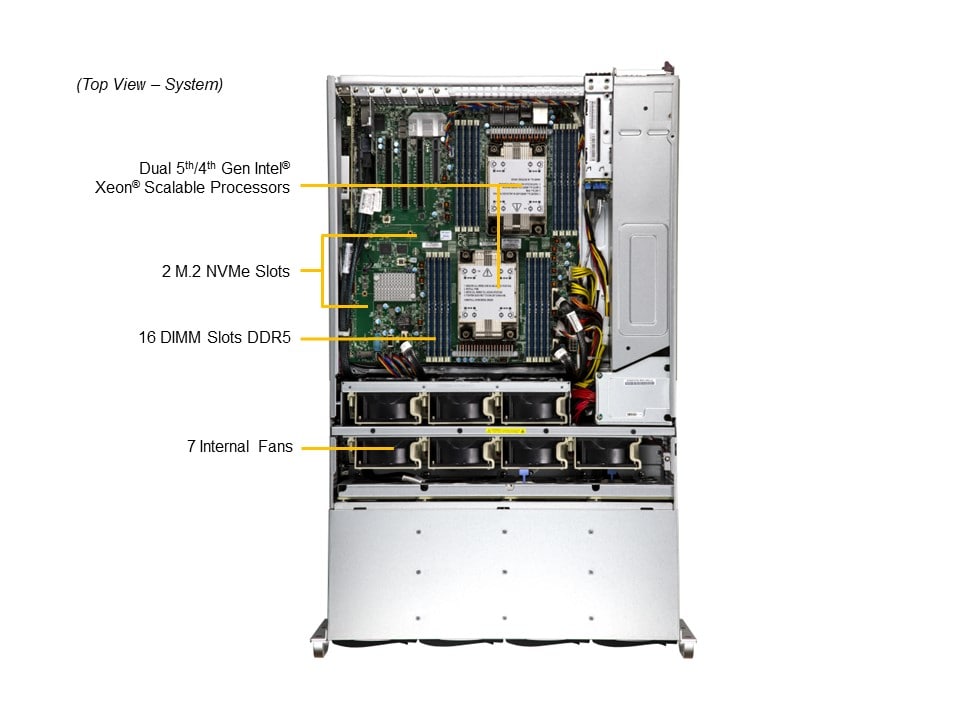

- Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
- Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots
- 2x 10 GbE onboard via Broadcom BCM57416
- 36x 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear 2.5" SATA Slots, 2x NVMe M.2
- 7x 8cm hot-swap counter-rotate redundant PWM cooling fans
- 1600W Redundant Power Supplies Titanium Level (96%)
- HBA Controller support via Broadcom® 3808
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Motherboard
| Model | Super X13DEI-T |
Processor
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
System Memory
| Slot Count | 16 DIMM slots |
| Max Memory (1DPC) | Up to 4TB 5600MT/s ECC DDR5 RDIMM |
Drive Bays / Storage

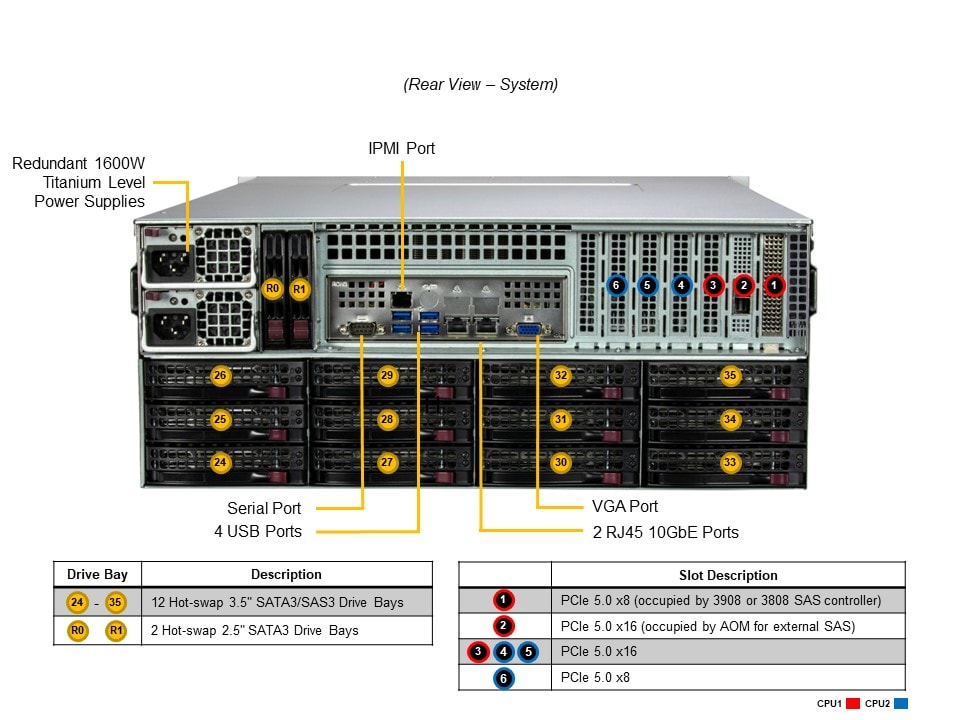

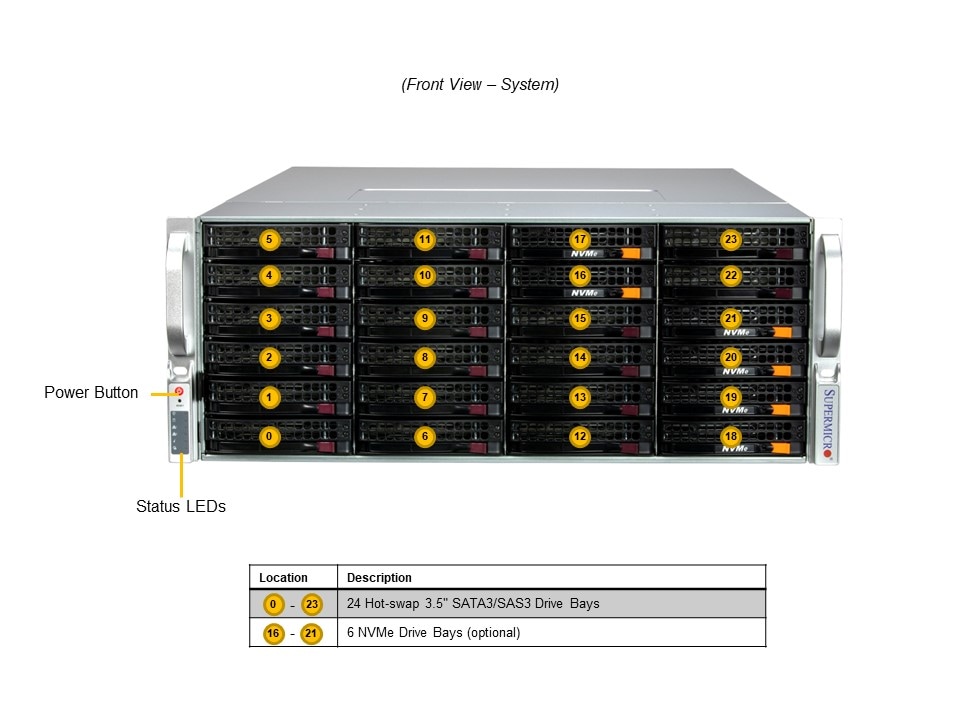

| Configuration Default | Total 38 bays 24 front hot-swap 3.5" SAS/SATA drive bays 12 rear hot-swap 3.5" SAS/SATA drive bays 2 rear hot-swap 2.5" SATA drive bays |
| Option A | Total 6 bays 6 front hot-swap 3.5" PCIe 5.0 x4 NVMe* drive bays |
| M.2 | 2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110) |
Expansion Slots
| PCIe | Default 4 PCIe 5.0 x16 (in x16) LP slots 2 PCIe 5.0 x8 (in x8) LP slots |
On-Board Devices
| Network Connectivity | 2 RJ45 10GbE with Broadcom® BCM57416 |
Input / Output
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GbE LAN ports (Broadcom® BCM57416) (IPMI shared on LAN port 1) |
| USB | 4 USB 3.0 ports(rear) |
| Video | 1 VGA port(Rear) |
| Serial | 1 COM port(Rear) |
System Cooling
| Fans | Up to 7 Heavy Duty 8cm Fan(s) |
| Air Shroud | 1 Air Shroud |
Power Supply
| PSU | 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies |
System BIOS
| BIOS Type | AMI 32MB SPI Flash EEPROM |
Management
| Software | SuperCloud Composer® (SCC); Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) |
PC Health Monitoring
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
Form Factor
| Form factor | 4U Rackmount |
| Enclosure | (17.2" x 7" x 27.5") |
| Package | (27" x 15" x 39") |
Chassis
| Model | CSE-847BTS-R1K68LPBP5 |
Dimensions & Weight
| Weight | Gross Weight: 102.5 lbs (46.4 kg) |
| Net Weight | 65.5 lbs (29.7 kg) |
| Available Color | Silver |
Operating Environment
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Non-operating Relative Humidity | 5% to 95% (non-condensing) |
