Supermicro · ARM

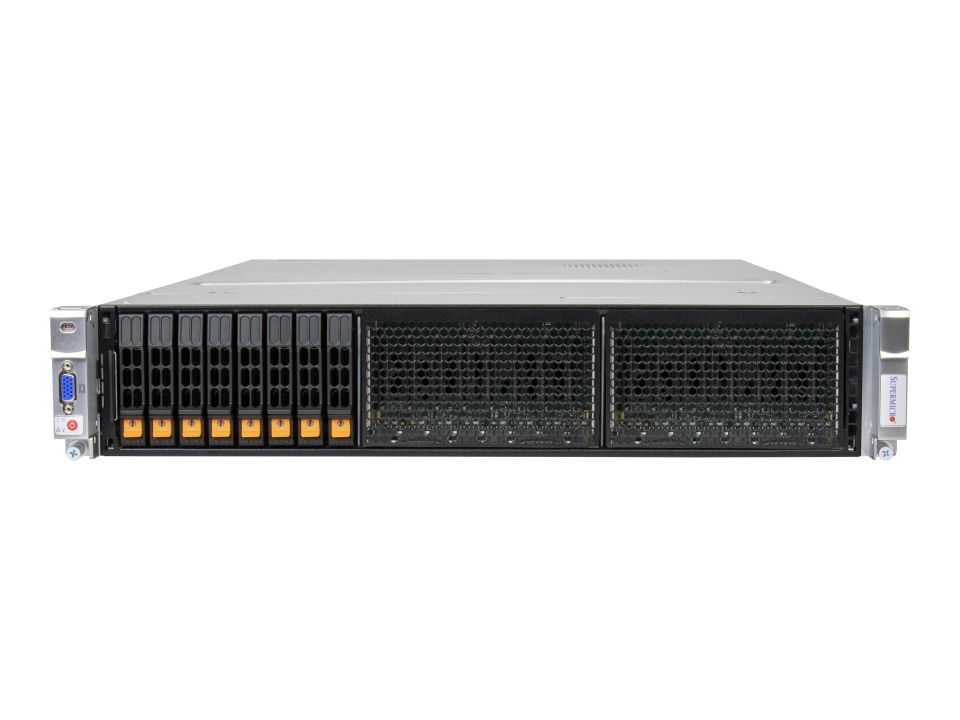

ARS-222H-NR
2U Arm Hyper with 8 hot-swap 2.5" NVMe bays, 5 PCIe 6.0 x16 slots and OCP 3.0 AIOM networking.
2U
Form factor
Dual
Sockets
Arm
Processor
6TB
Max memory
8 bays
Drive bays
2× 2700W
Power
- Dual Arm Neoverse V3 CPUs (64/128/136 cores)
- 24 DDR5-8800 DIMM slots, up to 6TB
- 8 hot-swap 2.5" NVMe drive bays
- 5 PCIe 6.0 x16 + 1 PCIe 6.0 x8 slots
- 1 AIOM (OCP NIC 3.0) networking slot
- Dual 2700W Titanium redundant PSUs
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Processor
| CPU Sockets | 2 |
| CPU | Arm Neoverse V3 (64/128/136-core) |
| Core Count | Up to 136 cores per CPU |
System Memory
| DIMM Slots | 24 DIMM slots |
| Max Memory | 6TB DDR5-8800 ECC RDIMM |
Drive Bays / Storage
| Configuration | 8 default |
| Drive type | 2.5" NVMe |
Expansion (PCIe)
| Slots | 5 PCIe 6.0 x16 + 1 x8 + 1 AIOM |
Networking
| On-board / AIOM | AIOM (OCP NIC 3.0) |
Cooling
| Type | Air |
Power Supply
| PSU | 2× 2700W Redundant Titanium |
Form Factor
| Form factor | 2U |
| Motherboard | Super AR3DPD |
| Chassis | CSE-218HTS-R3K2AWP |
Management
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Update Manager (SUM), SuperDoctor® 5, IPMI 2.0 / Redfish |
