Supermicro · Hyper

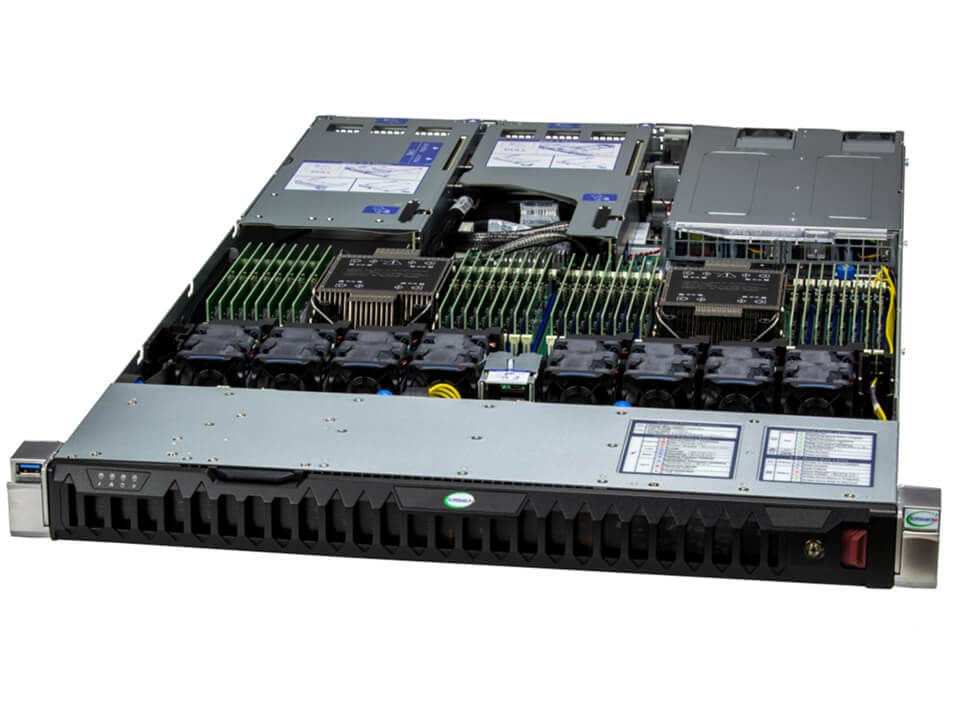

SYS-121H-TNR
1U Hyper with 8 hot-swap 2.5" NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 + 1 PCIe 5.0 x16 AIOM slot.
1U
Form factor
Dual
Sockets
Intel Xeon
Processor
8TB
Max memory
8–12 bays
Drive bays
2× 1200W
Power
- Dual 5th/4th Gen Intel® Xeon® Scalable (Xeon CPU Max supported)
- 32 DIMM slots, up to 8TB DDR5
- 8 (up to 12) hot-swap 2.5" NVMe/SAS/SATA bays
- 3 PCIe 5.0 x16 slots + 1 AIOM (OCP 3.0)
- Optional Direct-to-Chip liquid cooling
- Dual 1200W Titanium redundant PSUs
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Processor
| CPU Sockets | 2 |
| CPU | 5th/4th Gen Intel® Xeon® Scalable |
| Core Count | Up to 64C/128T; 320MB cache |
System Memory
| DIMM Slots | 32 DIMM slots |
| Max Memory | Up to 8TB DDR5 ECC RDIMM (4400, 2DPC) |
GPU (optional)
| Supported | Up to 1 double-width GPU — NVIDIA H100, L40S, L4 |
Drive Bays / Storage
| Configuration | 8 default (up to 12) |
| Drive type | 2.5" NVMe/SAS/SATA |
Expansion (PCIe)
| Slots | 3 PCIe 5.0 x16 + 1 AIOM |
Networking
| On-board / AIOM | AIOM (OCP NIC 3.0) |
Cooling
| Type | Air / optional D2C liquid |
Power Supply
| PSU | 2× 1200W Redundant Titanium |
Form Factor
| Form factor | 1U |
| Motherboard | Super X13DEM |
| Chassis | CSE-HS119-R1K24P2 |
Management
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Update Manager (SUM), SuperDoctor® 5, IPMI 2.0 / Redfish |
