Supermicro · CloudDC

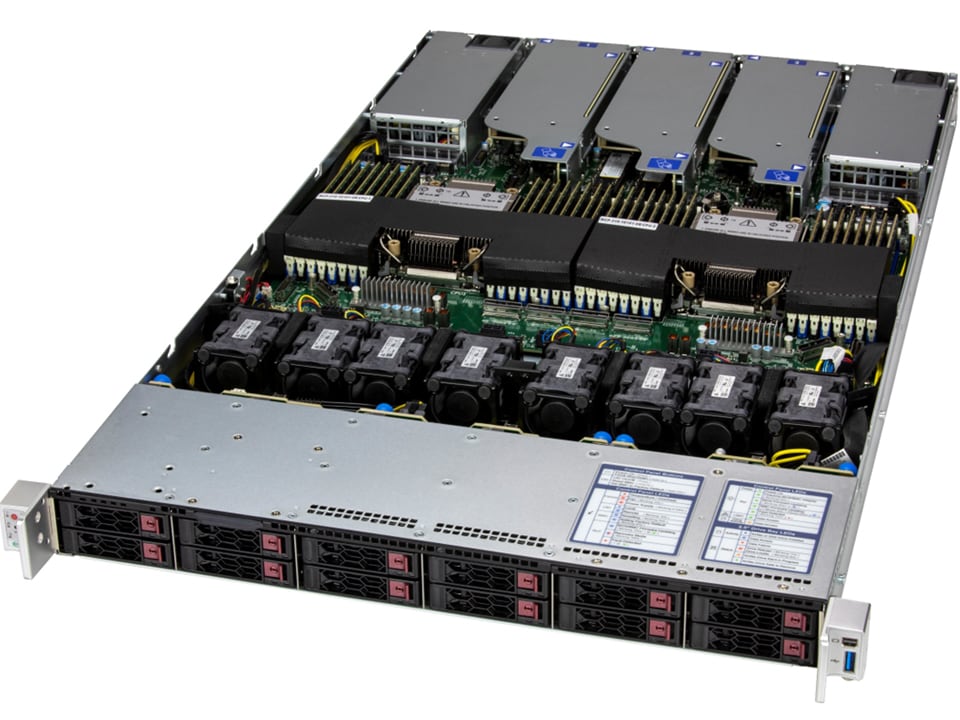

SYS-122C-TN
1U CloudDC (DC-MHS) with 12 hot-swap 2.5" NVMe/SATA/SAS bays, 3 PCIe 5.0 slots and 2 PCIe 5.0 x16 AIOM slots.
1U
Form factor
Dual
Sockets
Intel Xeon
Processor
8TB
Max memory
12 bays
Drive bays
2× 1000W
Power
- DC-MHS design for simplified CSP deployment & serviceability
- Dual Intel® Xeon® 6700/6500 (P-core or E-core)
- 32 DIMM slots, up to 8TB DDR5
- 12 hot-swap 2.5" NVMe/SAS/SATA bays
- 2 AIOM (OCP 3.0) slots; OpenBMC management
- Dual 1000W Titanium redundant PSUs
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Processor
| CPU Sockets | 2 |
| CPU | Intel® Xeon® 6700/6500 (P-core or E-core) |
| Core Count | P-core up to 86C/172T; E-core up to 144C |
System Memory
| DIMM Slots | 32 DIMM slots |
| Max Memory | Up to 8TB DDR5 ECC RDIMM (5200, 2DPC) |
GPU (optional)
| Supported | Up to 3 single-width GPUs — NVIDIA L4 |
Drive Bays / Storage
| Configuration | 12 default |
| Drive type | 2.5" NVMe/SAS/SATA |
Expansion (PCIe)
| Slots | 2 PCIe 5.0 x16 + 1 x8 LP + 2 AIOM |
Networking
| On-board / AIOM | AIOM (OCP NIC 3.0) |
Cooling
| Type | Air |
Power Supply
| PSU | 2× 1000W Redundant Titanium |
Form Factor
| Form factor | 1U |
| Motherboard | Super X14DBHM |
| Chassis | CSE-DC101TS-R000NP |
Management
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Update Manager (SUM), SuperDoctor® 5, IPMI 2.0 / Redfish |
