Supermicro · Hyper

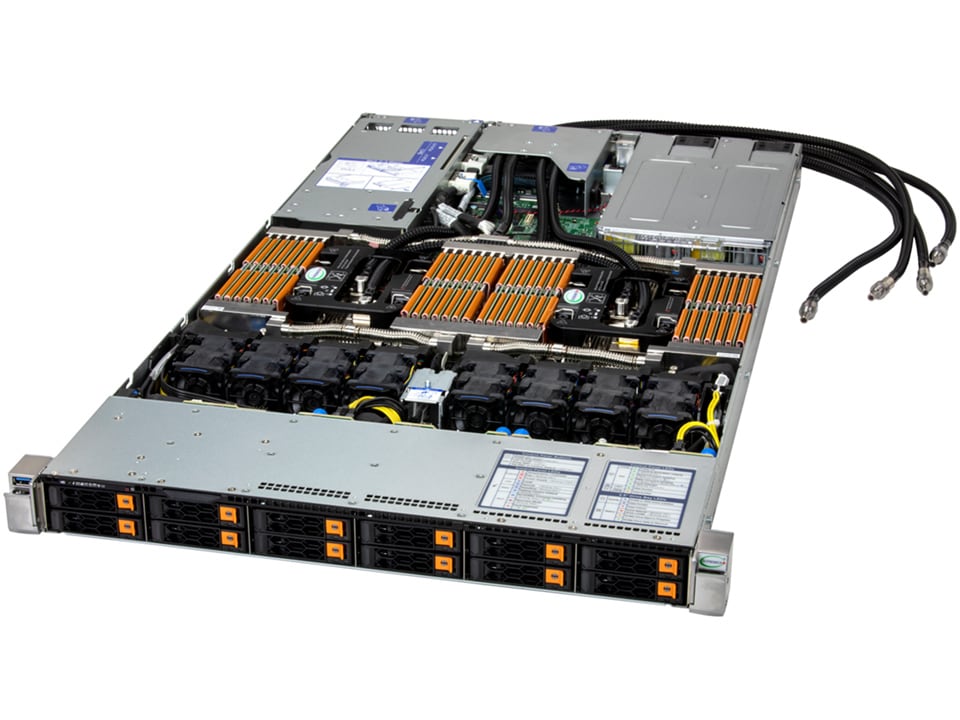

SYS-122HA-TN-LCC
1U liquid-cooled Hyper with 12 hot-swap 2.5" NVMe bays and 2 PCIe 5.0 x16 + 1 PCIe 5.0 x16 AIOM slot.
1U
Form factor
Dual
Sockets
Intel Xeon
Processor
6TB
Max memory
12 bays
Drive bays
2× 1600W
Power
- Dual Intel® Xeon® 6900 P-core (up to 500W) with D2C liquid cooling
- 24 DIMM slots, up to 6TB DDR5-6400 RDIMM
- 12 hot-swap 2.5" NVMe drive bays
- 2 PCIe 5.0 x16 slots + 1 AIOM (OCP 3.0)
- Direct-to-Chip (D2C) liquid cooling
- Dual 1600W Titanium redundant PSUs
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Processor
| CPU Sockets | 2 |
| CPU | Intel® Xeon® 6900 (P-core, Socket BR) |
| Core Count | Up to 128C/256T; 504MB cache |
System Memory
| DIMM Slots | 24 DIMM slots |
| Max Memory | Up to 6TB DDR5-6400 RDIMM / 3TB MRDIMM |
Drive Bays / Storage
| Configuration | 12 default |
| Drive type | 2.5" NVMe |
Expansion (PCIe)
| Slots | 2 PCIe 5.0 x16 + 1 AIOM |
Networking
| On-board / AIOM | AIOM (OCP NIC 3.0) |
Cooling
| Type | Liquid (Direct-to-Chip) |
Power Supply
| PSU | 2× 1600W Redundant Titanium |
Form Factor
| Form factor | 1U |
| Motherboard | Super X14DBM-APL |
| Chassis | CSE-HS101-R000NFP |
Management
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Update Manager (SUM), SuperDoctor® 5, IPMI 2.0 / Redfish |
