Supermicro · Mainstream

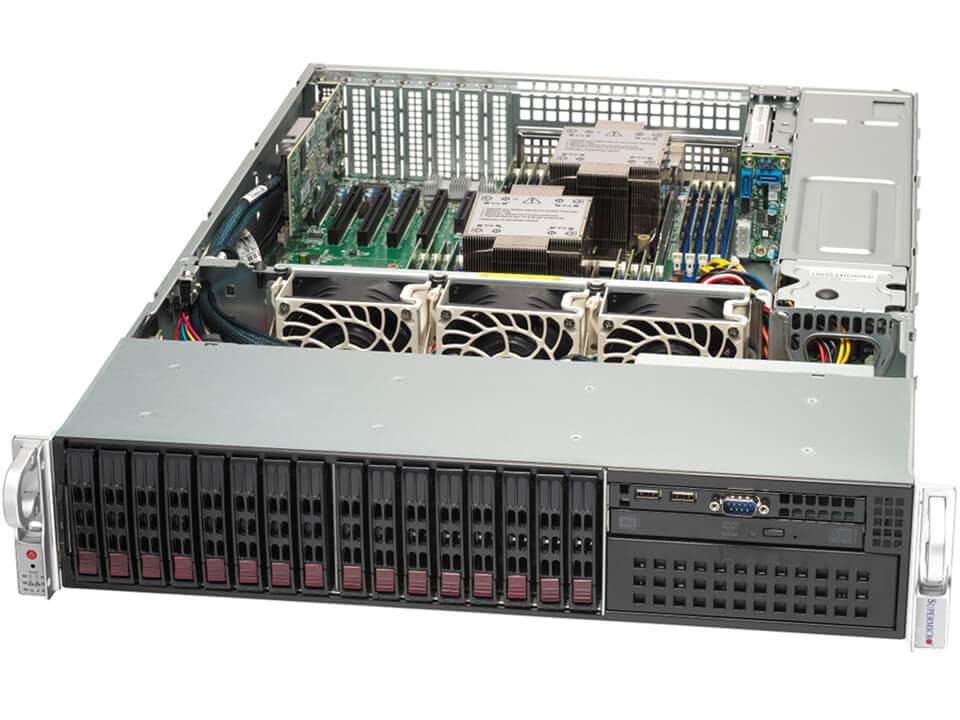

SYS-221P-C9RT
2U Mainstream server with 16 hot-swap 2.5" bays, 5 PCIe 5.0 slots and dual 10GbE.
2U
Form factor
Dual
Sockets
Intel Xeon
Processor
4TB
Max memory
16 bays
Drive bays
2× 1200W
Power
- Dual 5th/4th Gen Intel® Xeon® Scalable, up to 300W
- 16 DIMM slots, up to 4TB DDR5-5600
- 16 hot-swap 2.5" bays (8 SAS RAID + 8 SATA)
- 5 PCIe 5.0 slots (4× x16 + 1× x8 LP)
- 2× onboard 10GbE RJ45
- Dual 1200W Titanium redundant PSUs
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Processor
| CPU Sockets | 2 |
| CPU | 5th/4th Gen Intel® Xeon® Scalable |
| Core Count | Up to 64C/128T (300W TDP) |
System Memory
| DIMM Slots | 16 DIMM slots |
| Max Memory | Up to 4TB DDR5-5600 ECC RDIMM |
Drive Bays / Storage
| Configuration | 16 default |
| Drive type | 2.5" NVMe/SAS/SATA |
Expansion (PCIe)
| Slots | 4 PCIe 5.0 x16 LP + 1 x8 LP |
Networking
| On-board / AIOM | 2× 10GbE RJ45 |
Cooling
| Type | Air |
Power Supply
| PSU | 2× 1200W Redundant Titanium |
Form Factor
| Form factor | 2U |
| Motherboard | Super X13DEI-T |
| Chassis | CSE-213BTS-R1K23LPBP3-1 |
Management
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Update Manager (SUM), SuperDoctor® 5, IPMI 2.0 / Redfish |
