Supermicro · CloudDC

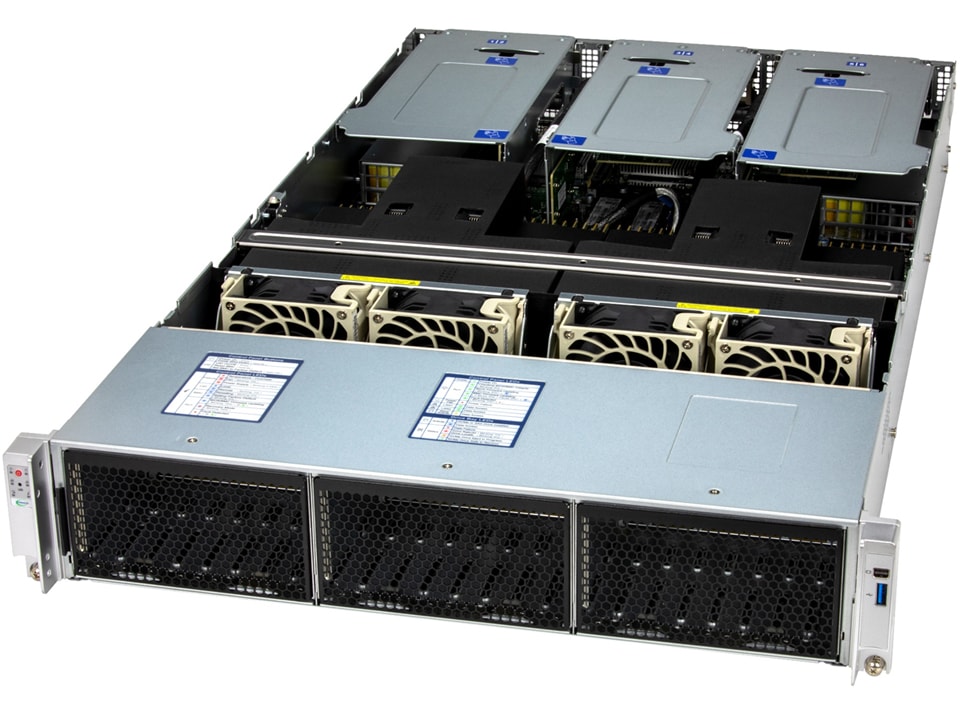

SYS-222C-TN
2U CloudDC (DC-MHS) with 24 hot-swap 2.5" NVMe/SATA/SAS bays and up to 6 PCIe 5.0 x16 slots.
2U
Form factor
Dual
Sockets
Intel Xeon
Processor
4TB
Max memory
24 bays
Drive bays
2× 2000W
Power
- DC-MHS design for simplified CSP deployment & serviceability
- Dual Intel® Xeon® 6700/6500 (P-core or E-core)
- 32 DIMM slots, up to 4TB DDR5
- 24 hot-swap 2.5" NVMe/SAS/SATA bays
- Up to 6 PCIe 5.0 x16 slots; double-width GPU support
- Dual 2000W Titanium redundant PSUs
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Processor
| CPU Sockets | 2 |
| CPU | Intel® Xeon® 6700/6500 (P-core or E-core) |
| Core Count | P-core up to 86C/172T; E-core up to 144C |
System Memory
| DIMM Slots | 32 DIMM slots |
| Max Memory | Up to 4TB DDR5 ECC RDIMM (5200, 2DPC) |
GPU (optional)
| Supported | Up to 2 double-width GPUs — NVIDIA H200 NVL, L40S, RTX PRO 6000/4500, RTX 4000/2000 Ada |
Drive Bays / Storage
| Configuration | 24 default |
| Drive type | 2.5" NVMe/SAS/SATA |
Expansion (PCIe)
| Slots | Up to 6 PCIe 5.0 x16 FHFL |
Networking
| On-board / AIOM | AIOM (OCP NIC 3.0) |
Cooling
| Type | Air |
Power Supply
| PSU | 2× 2000W Redundant Titanium |
Form Factor
| Form factor | 2U |
| Motherboard | Super X14DBHM |
| Chassis | CSE-DC201TS-R000NP |
Management
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Update Manager (SUM), SuperDoctor® 5, IPMI 2.0 / Redfish |
Configure the SYS-222C-TN
Tell us your CPU, memory, drive and networking targets — we'll return a build-to-order quote, typically within one business day.
Request a Quote
