Supermicro · Hyper

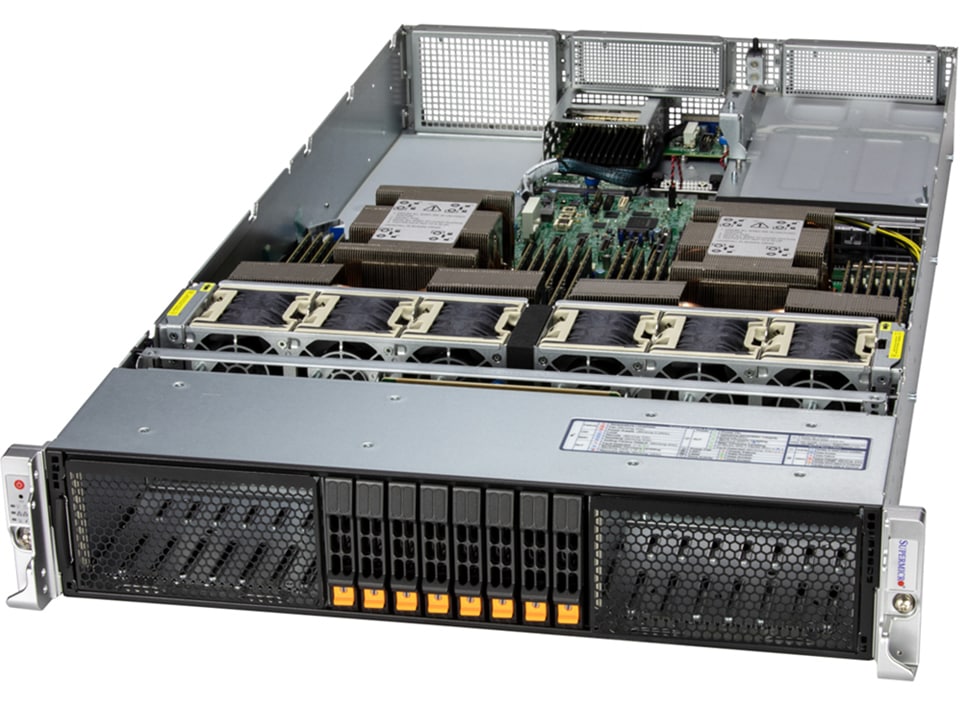

SYS-222HA-TN
2U Hyper with 8 hot-swap 2.5" NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + up to 2 PCIe 5.0 x16 AIOM slots.
2U
Form factor
Dual
Sockets
Intel Xeon
Processor
6TB
Max memory
8–24 bays
Drive bays
2× 2600W
Power
- Dual Intel® Xeon® 6900 P-core processors (up to 500W)
- 24 DIMM slots, up to 6TB DDR5-6400 RDIMM / 8800 MRDIMM
- 8/16/24 hot-swap 2.5" NVMe/SAS/SATA bays
- Optional PCIe up to 8× x8 or 4× x16, double-width GPU support
- Up to 2 AIOM (OCP NIC 3.0) slots
- Optional Direct-to-Chip liquid cooling
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Processor
| CPU Sockets | 2 |
| CPU | Intel® Xeon® 6900 (P-core, Socket BR) |
| Core Count | Up to 128C/256T; 504MB cache |
System Memory
| DIMM Slots | 24 DIMM slots |
| Max Memory | Up to 6TB DDR5-6400 RDIMM / 8800 MRDIMM |
GPU (optional)
| Supported | Up to 4 double-width GPUs — NVIDIA H100 NVL, L40S, L4 |
Drive Bays / Storage
| Configuration | 8 default (up to 24) |
| Drive type | 2.5" NVMe/SAS/SATA |
Expansion (PCIe)
| Slots | 4 PCIe 5.0 x16 (or 8 x8) + 2 AIOM |
Networking
| On-board / AIOM | AIOM (OCP NIC 3.0) |
Cooling
| Type | Air / optional D2C liquid |
Power Supply
| PSU | 2× 2600W Redundant Titanium |
Form Factor
| Form factor | 2U |
| Motherboard | Super X14DBM-AP |
| Chassis | CSE-HS201-R000NFP |
Management
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Update Manager (SUM), SuperDoctor® 5, IPMI 2.0 / Redfish |
