Supermicro · CloudDC

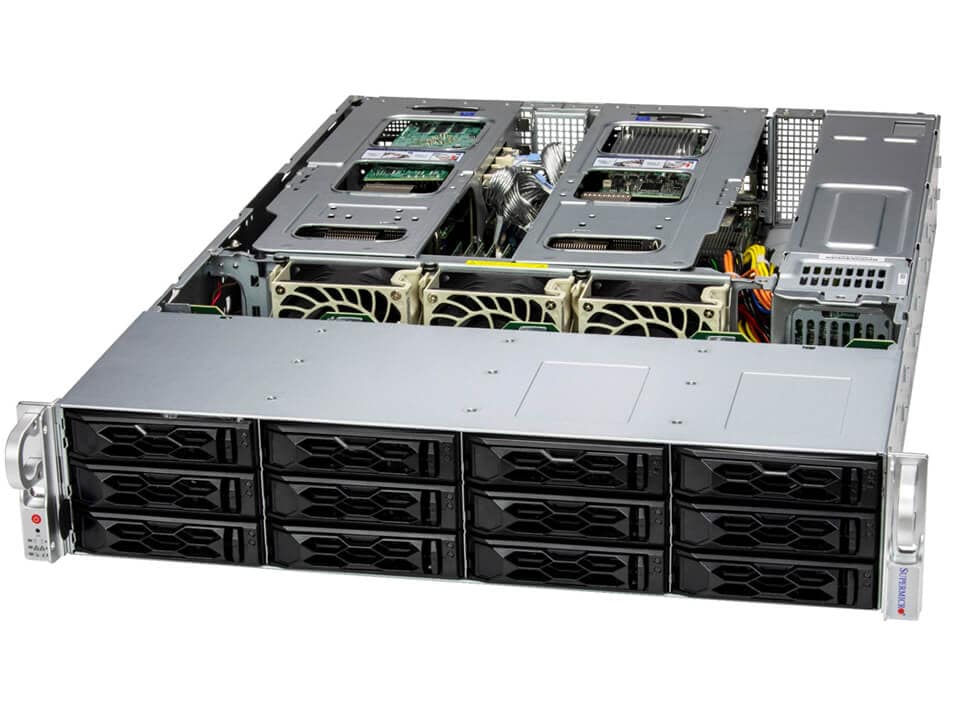

SYS-621C-TN12R
2U CloudDC with 12 hot-swap 3.5" NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + 2 PCIe 5.0 x16 AIOM slots.
2U
Form factor
Dual
Sockets
Intel Xeon
Processor
4TB
Max memory
12 bays
Drive bays
2× 1200W
Power
- Dual 5th/4th Gen Intel® Xeon® Scalable
- 16 DIMM slots, up to 4TB DDR5-5600
- 12 hot-swap 3.5"/2.5" hybrid NVMe/SAS/SATA bays
- Flexible PCIe 5.0 — up to 4× x16 + 2 AIOM
- Dual AIOM (OCP 3.0) with NCSI networking
- Dual 1200W Titanium redundant PSUs
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Processor
| CPU Sockets | 2 |
| CPU | 5th/4th Gen Intel® Xeon® Scalable |
| Core Count | Up to 64C/128T; 112.5MB cache |
System Memory
| DIMM Slots | 16 DIMM slots |
| Max Memory | Up to 4TB DDR5-5600 ECC RDIMM |
GPU (optional)
| Supported | Up to 2 double-width GPUs — NVIDIA H100, H100 NVL, L40S, L40, L4, A2; Intel Flex 140/170 |
Drive Bays / Storage
| Configuration | 12 default |
| Drive type | 3.5"/2.5" NVMe/SAS/SATA |
Expansion (PCIe)
| Slots | 4 PCIe 5.0 x8 + 2 x16 + 2 AIOM |
Networking
| On-board / AIOM | Dual AIOM (OCP NIC 3.0) |
Cooling
| Type | Air |
Power Supply
| PSU | 2× 1200W Redundant Titanium |
Form Factor
| Form factor | 2U |
| Motherboard | Super X13DDW-A |
| Chassis | CSE-LA26TS-R1K23AWP1 |
Management
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Update Manager (SUM), SuperDoctor® 5, IPMI 2.0 / Redfish |
