Supermicro · Hyper

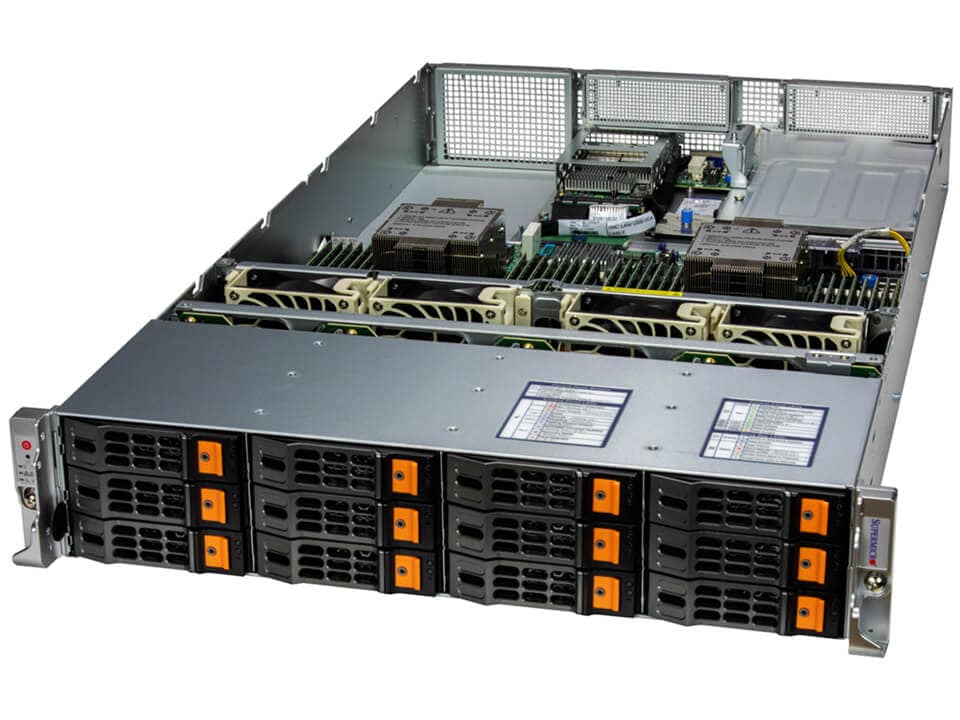

SYS-621H-TN12R
2U Hyper with 12 hot-swap 3.5" NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + up to 2 PCIe 5.0 x16 AIOM slots.
2U
Form factor
Dual
Sockets
Intel Xeon
Processor
8TB
Max memory
12 bays
Drive bays
2× 1200W
Power
- Dual 5th/4th Gen Intel® Xeon® Scalable (Xeon CPU Max supported)
- 32 DIMM slots, up to 8TB DDR5
- 12 hot-swap 3.5" NVMe/SAS/SATA bays
- Optional PCIe up to 8× x8 or 4× x16, double-width GPU support
- Up to 2 AIOM (OCP NIC 3.0) slots
- Optional Direct-to-Chip liquid cooling
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Processor
| CPU Sockets | 2 |
| CPU | 5th/4th Gen Intel® Xeon® Scalable |
| Core Count | Up to 64C/128T; 320MB cache |
System Memory
| DIMM Slots | 32 DIMM slots |
| Max Memory | Up to 8TB DDR5 ECC RDIMM (4400, 2DPC) |
GPU (optional)
| Supported | Up to 4 double-width GPUs — NVIDIA H100, A100, L40S, L40, L4, A40, A16 |
Drive Bays / Storage
| Configuration | 12 default |
| Drive type | 3.5" NVMe/SAS/SATA |
Expansion (PCIe)
| Slots | 4 PCIe 5.0 x16 (or 8 x8) + 2 AIOM |
Networking
| On-board / AIOM | AIOM (OCP NIC 3.0) |
Cooling
| Type | Air / optional D2C liquid |
Power Supply
| PSU | 2× 1200W Redundant Titanium |
Form Factor
| Form factor | 2U |
| Motherboard | Super X13DEM |
| Chassis | CSE-HS829-R1K24P |
Management
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Update Manager (SUM), SuperDoctor® 5, IPMI 2.0 / Redfish |
