Supermicro · Mainstream

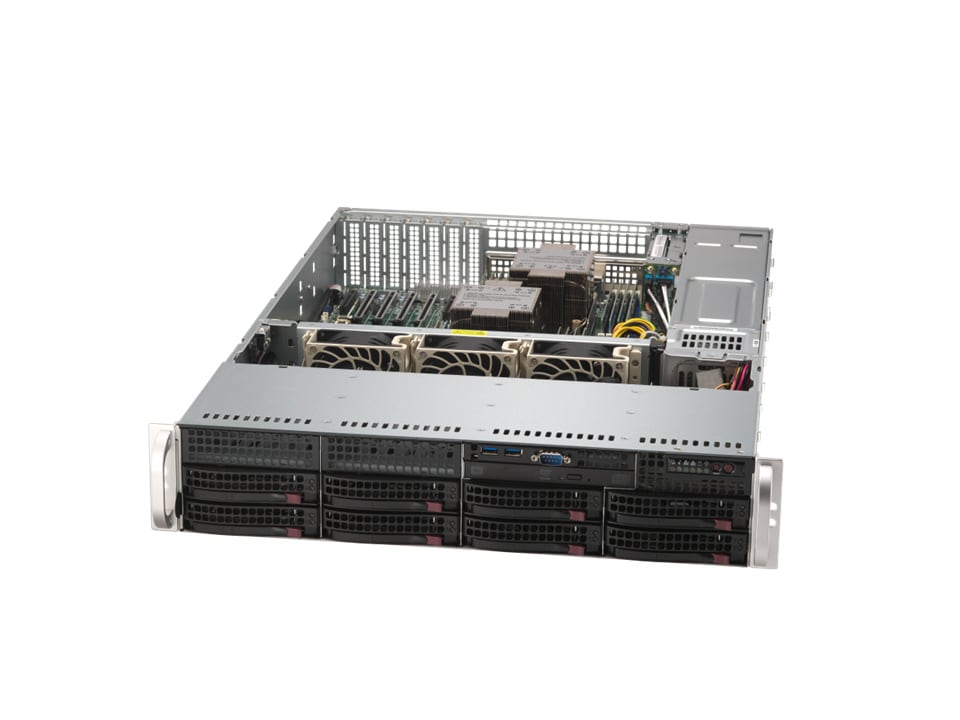

SYS-622B-TRT
2U Mainstream server with 8 hot-swap 3.5" bays, 6 PCIe 5.0 slots and dual onboard 10GbE.
2U
Form factor
Dual
Sockets
Intel Xeon
Processor
2TB
Max memory
8 bays
Drive bays
2× 1200W
Power
- Dual Intel® Xeon® 6700/6500 (P-core or E-core), up to 350W
- 16 DIMM slots, up to 2TB DDR5-6400
- 8 hot-swap 3.5" NVMe/SAS/SATA bays
- 6 PCIe 5.0 slots (4× x16 + 2× x8 LP)
- 2× onboard 10GbE RJ45
- Dual 1200W Titanium redundant PSUs
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Processor
| CPU Sockets | 2 |
| CPU | Intel® Xeon® 6700/6500 (P-core or E-core) |
| Core Count | P-core up to 128C/256T; E-core up to 144C |
System Memory
| DIMM Slots | 16 DIMM slots |
| Max Memory | Up to 2TB DDR5-6400 ECC RDIMM |
Drive Bays / Storage
| Configuration | 8 default |
| Drive type | 3.5" NVMe/SAS/SATA |
Expansion (PCIe)
| Slots | 4 PCIe 5.0 x16 LP + 2 x8 LP |
Networking
| On-board / AIOM | 2× 10GbE RJ45 |
Cooling
| Type | Air |
Power Supply
| PSU | 2× 1200W Redundant Titanium |
Form Factor
| Form factor | 2U |
| Motherboard | Super X14DBI-T |
| Chassis | CSE-825BTS-R1K23LPP1 |
Management
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Update Manager (SUM), SuperDoctor® 5, IPMI 2.0 / Redfish |
