Supermicro · Mainstream

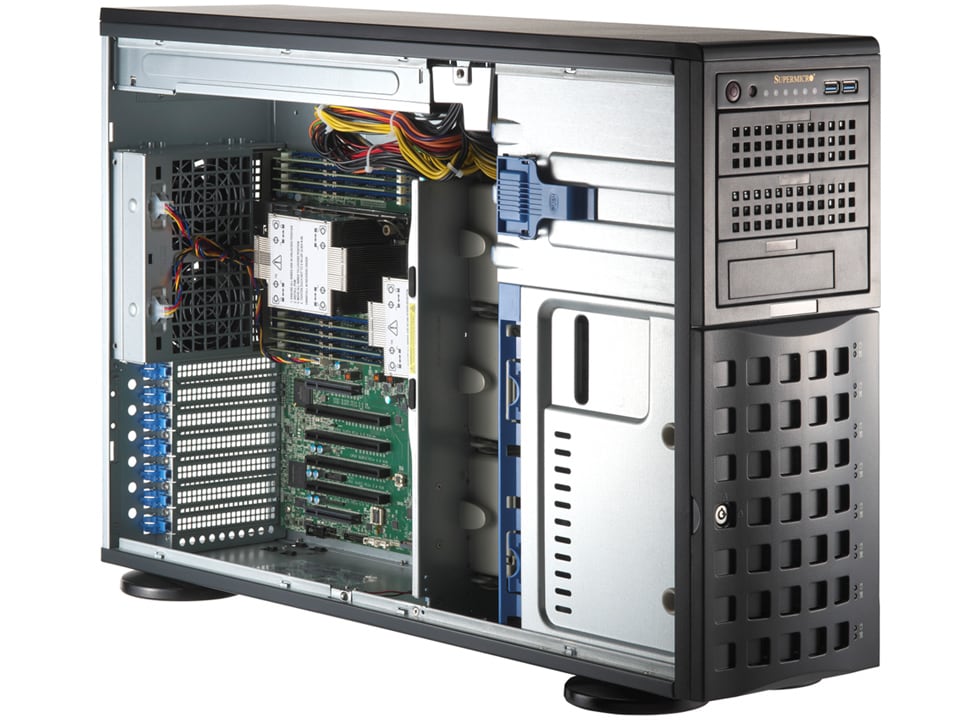

SYS-741P-TR
4U rackmount/tower server with 8 hot-swap 3.5" bays, 6 PCIe 5.0 slots and dual 1GbE.
4U
Form factor
Dual
Sockets
Intel Xeon
Processor
4TB
Max memory
8 bays
Drive bays
2× 1200W
Power
- Dual 5th/4th Gen Intel® Xeon® Scalable, up to 300W
- 16 DIMM slots, up to 4TB DDR5-5600
- 8 hot-swap 3.5"/2.5" NVMe/SAS/SATA bays
- 6 PCIe 5.0 FHFL slots (4× x16 + 2× x8); double-width GPU support
- Tower or 4U rackmount form factor
- Dual 1200W Titanium redundant PSUs
Sold and configured by Glocal Storage — an authorized Supermicro distributor. Specifications are manufacturer data and subject to change.
Specifications
Processor
| CPU Sockets | 2 |
| CPU | 5th/4th Gen Intel® Xeon® Scalable |
| Core Count | Up to 64C/128T (300W TDP) |
System Memory
| DIMM Slots | 16 DIMM slots |
| Max Memory | Up to 4TB DDR5-5600 ECC RDIMM |
GPU (optional)
| Supported | Up to 2 double-width GPUs — NVIDIA H100 NVL, L40S, L4, A16, RTX PRO 6000/4000 |
Drive Bays / Storage
| Configuration | 8 default |
| Drive type | 3.5"/2.5" NVMe/SAS/SATA |
Expansion (PCIe)
| Slots | 4 PCIe 5.0 x16 + 2 x8 FHFL |
Networking
| On-board / AIOM | 2× 1GbE RJ45 |
Cooling
| Type | Air |
Power Supply
| PSU | 2× 1200W Redundant Titanium |
Form Factor
| Form factor | 4U |
| Motherboard | Super X13DEI |
| Chassis | CSE-745BTS-R1K23BP |
Management
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Update Manager (SUM), SuperDoctor® 5, IPMI 2.0 / Redfish |
Configure the SYS-741P-TR
Tell us your CPU, memory, drive and networking targets — we'll return a build-to-order quote, typically within one business day.
Request a Quote
